7197 Series II Owner’s Manual Chapter 2: Setting Up and Using the Printer
14 September 2011
7. For Host powered installation plug the DC cable into the POS terminal.

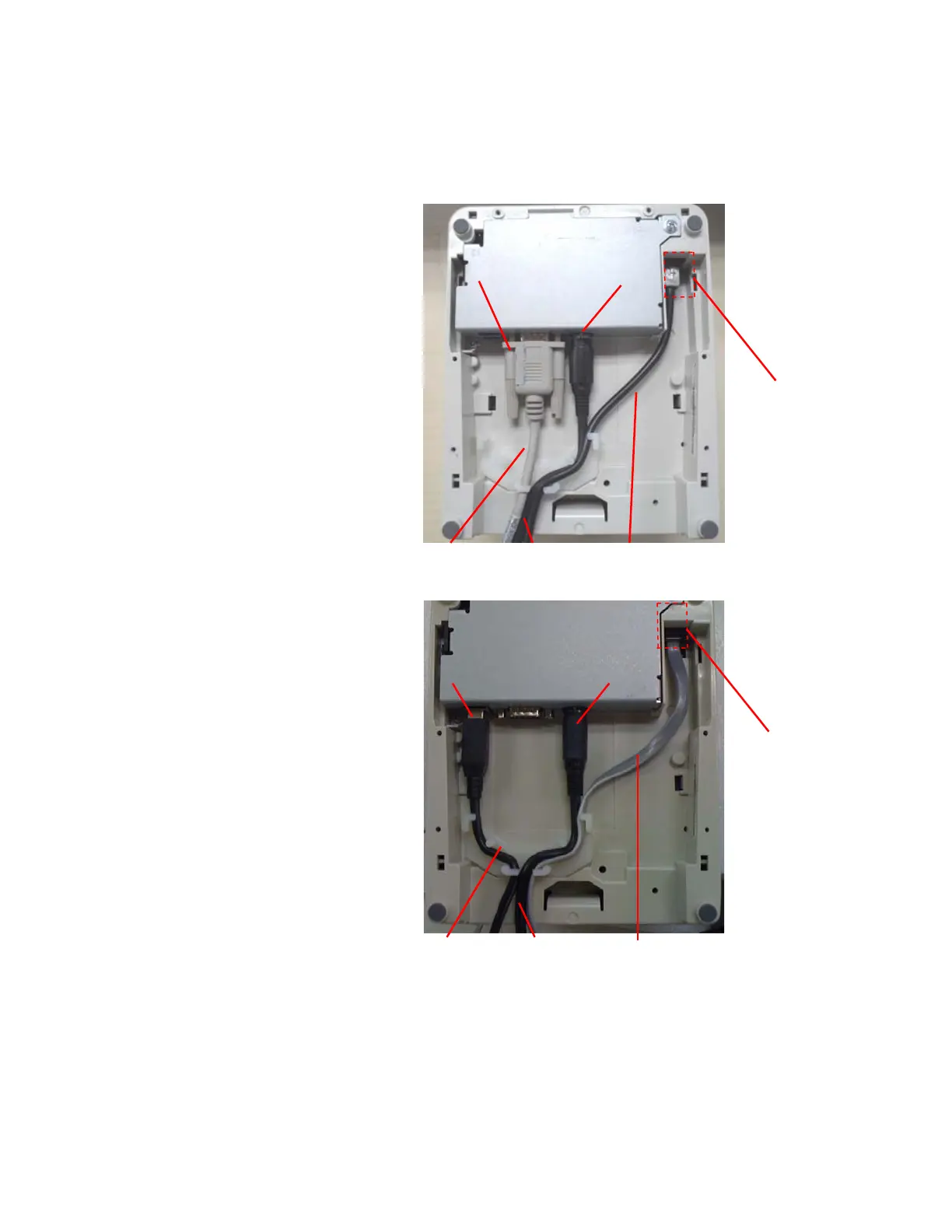

USB
Connector
Power
Connector
USB Cable Connection
Cash Drawer
Connector
Power
Cable
USB Cable
Cash Drawer
Cable
Bottom of the Printer
Power
Cable
Communication
Cable
Power
Connector
Communication
Connector
RS-232 Cable Connection
Cash Drawer
Cable
Cash Drawer
Connector
