Minitower Repair 6-19
ISA/PCI-Bus Backboard Removal
Remove the ISA/PCI-Bus backboard as follows.
1. Remove the top cover and all expansion slot boards as previously described.
2. Remove the two chassis support bracket screws (see Figure Section 6-5).
3. Pull the backboard and bracket out of the system unit.

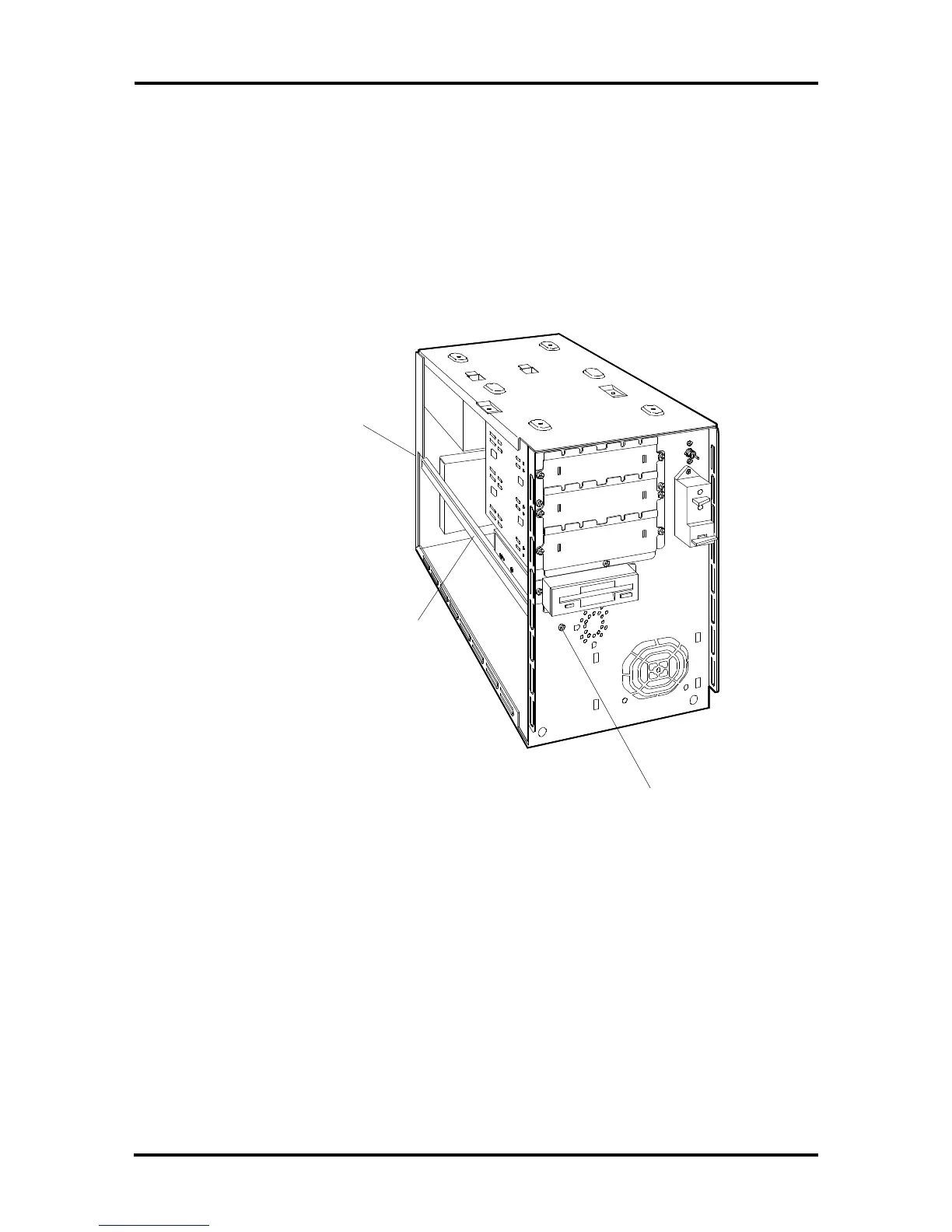

Figure Section 6-5 Chassis Support Bracket Screws
Bracket Screw
(not shown)
Bracket Screw
Chassis Support Bracket
