3-30 Options
NOTE: Do not remove the 5 1/4-inch blank
panel when installing a hard disk drive.
The 3 1/2-inch hard disk drives must be mounted
in a 5 1/4-inch bracket.
Minitower Blank Panel Removal
Remove the front panel assembly from the minitower chassis as follows.
1. Remove the minitower cover as previously described.
2. Remove the four screws holding the front panel to the system; two screws on
each side(see Figure Section 3-34).

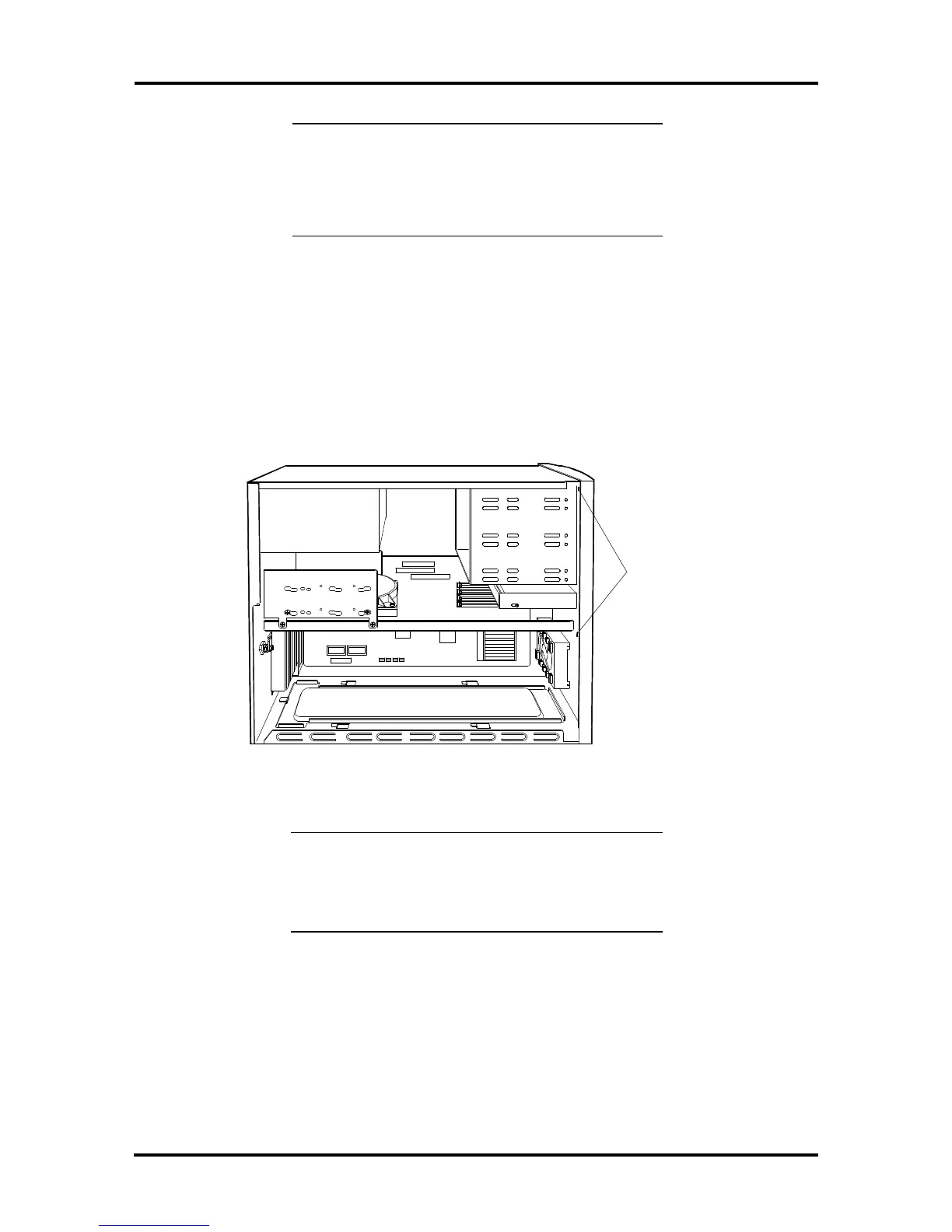

Figure Section 3-34 Removing the Front Panel Screws
NOTE: If installing a hard disk in the 5 1/4-inch
slot, do not remove the slot cover. Otherwise
store the slot cover for reuse if the device is
removed.
3. Release the blank panel tabs and remove the blank panel from the metal cover
plate (see Figure Section 3-36).
2 of 4
Screws
