3-10 Options
System Board Options
The following system board options are available for all the desktop and minitower systems.
n OverDrive processor
n SIMM memory
n Video DRAM chip
Once the top cover is removed (as previously described), use Figure Section 3-18 to locate
each of the system board option sockets. The following subsection provides the procedures
for installing each option into the system board.

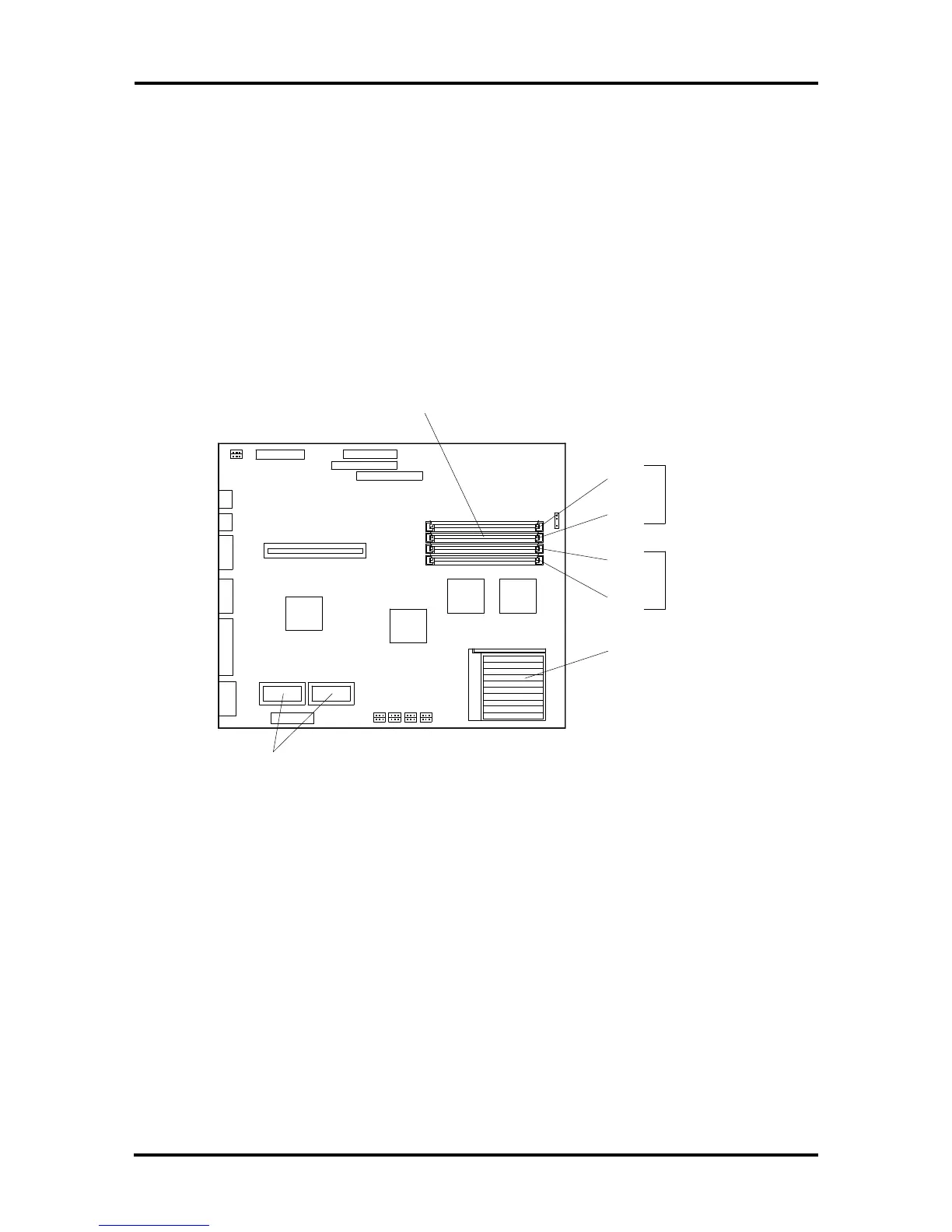

Figure Section 3-18 System Board Option Sockets
J28
J27
J26
J25
PGA/OverDrive
Socket
SIMM Sockets
Video DRAM
Sockets
Bank A
Bank B
