3-44 Options
Rear Control Panel
The rear control panel on the NEC SVGA Monitor is shown in Figure Section 3-54. Expla-
nations of the individual controls follow the figure. The tilt/swivel feature allows proper po-
sitioning of the monitor.

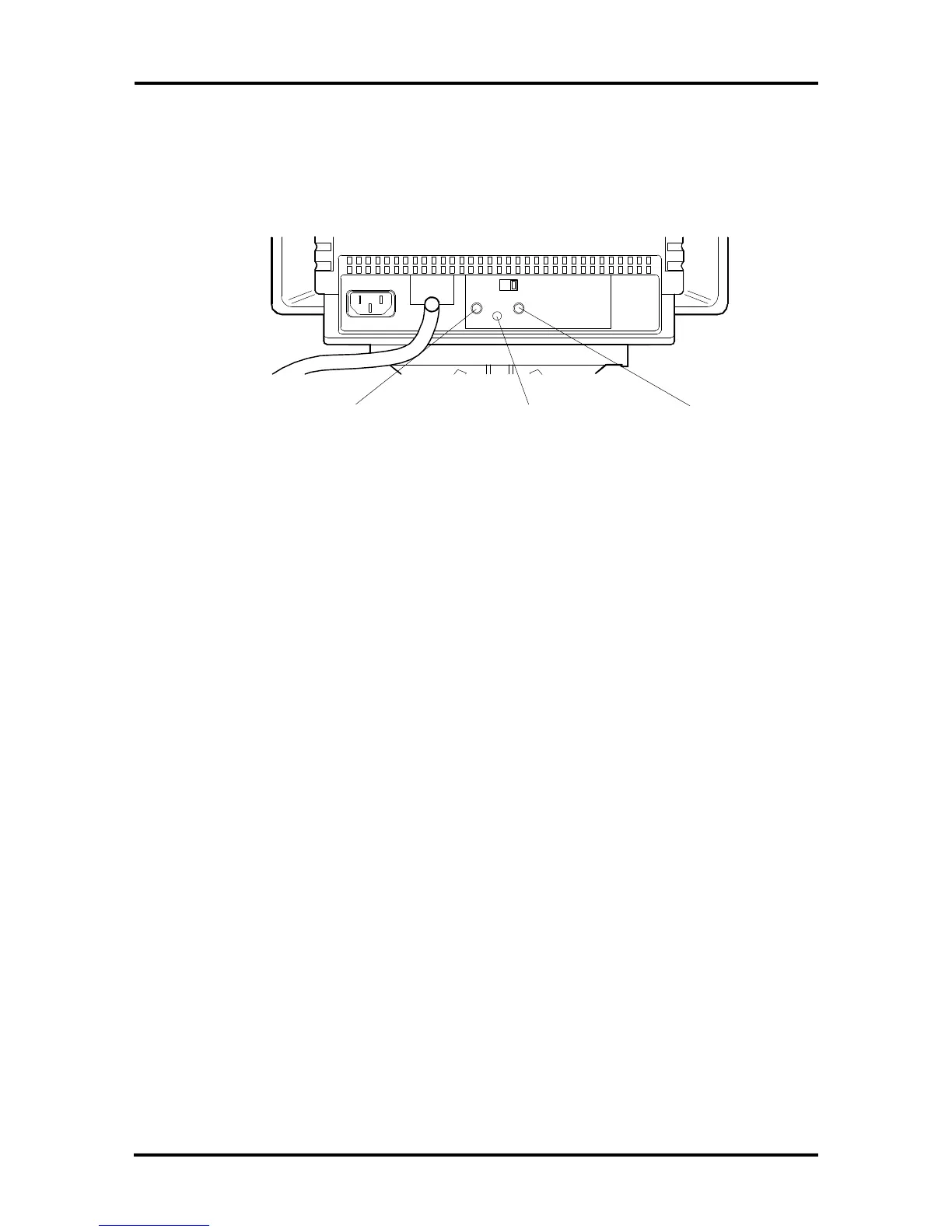

Figure Section 3-54 NEC SVGA Monitor Rear Control Panel
n Vertical Center (Vertical Position) Control – Turn this knob to adjust the on-
screen image vertical position. Turn the knob clockwise to raise the screen image,
counterclockwise to lower the screen image.
n Horizontal Phase (Horizontal Position) Control – Turn this knob to adjust the on-
screen image horizontal position. Turn the knob clockwise to move the screen im-
age position to the right, counterclockwise to move the screen image position to
the left.
n Horizontal Hold 3 – If the screen flickers, use this control to steady the screen.
n Tilt/Swivel Control – The tilt/swivel feature allows the user to tilt the screen up or
down, and move it from side to side, 45 degrees to the right or left. The user can
reposition the monitor up to an angle of –5 degrees forward and +15 degrees
backwards.
Vertical Center
ControlControl
Vertical Center
Hold 3
Horizontal Horizontal Phase
Control
