NEC POWERMATE P60D - Desktop 5 1;4-Inch Diskette Drive Cabling; Desktop 5 1;4-Inch Device Screws

Options 3-27
3. Install the four device screws that were removed with the rails or that come with
the kit, two on each side of the device cage (see Figure Section 3-28).

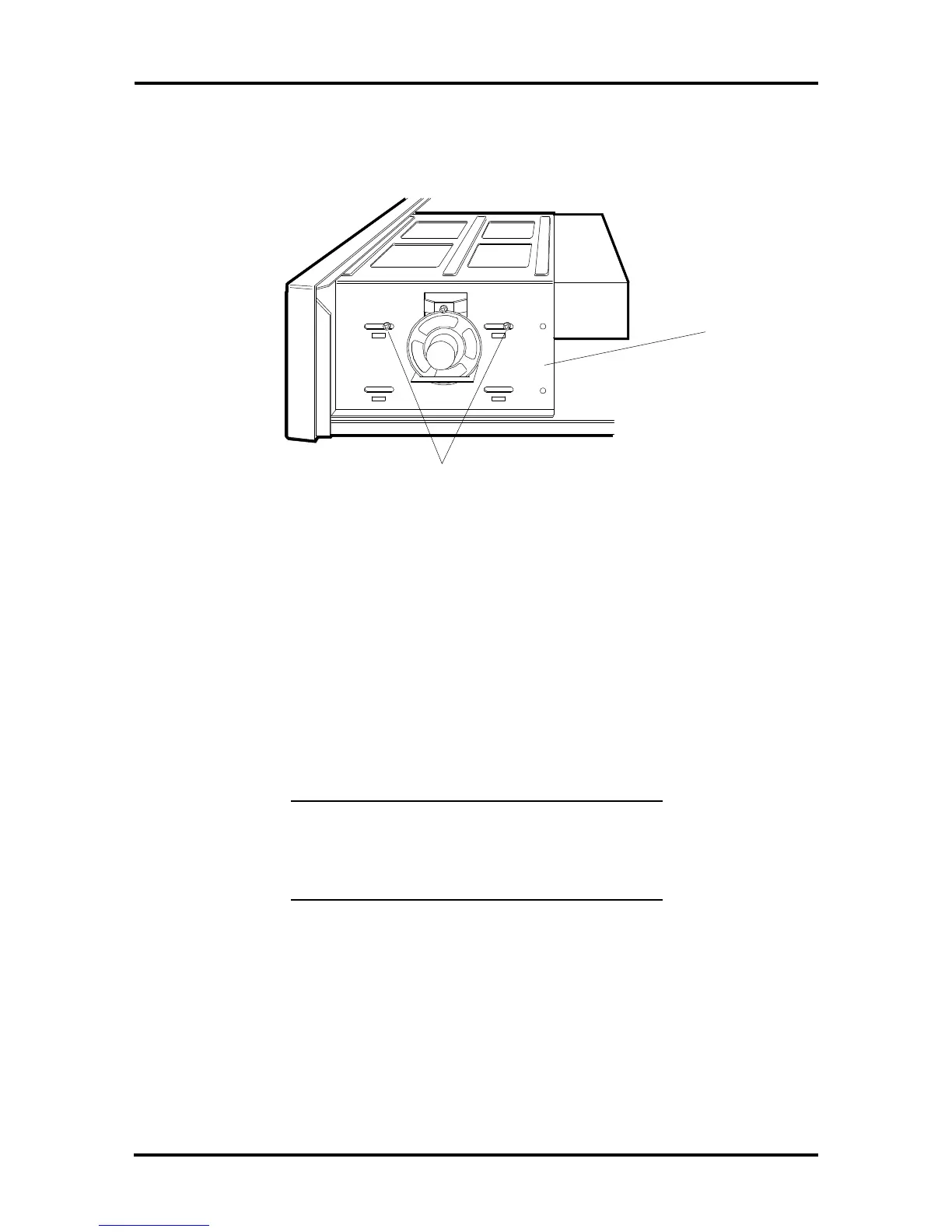

Figure Section 3-28 Desktop 5 1/4-Inch Device Screws
Continue to desktop 5 1/4-inch device cabling.
Desktop 5 1/4-Inch Diskette Drive Cabling
Cable an optional 5 1/4-inch diskette drive as follows.
1. Locate the diskette drive signal cable (connected to the 3 1/2-inch diskette drive)
and plug middle connector into the 5 1/4-inch diskette drive signal connector (see
Figure Section 3-30).
NOTE: When cabling the 5 1/4-inch device,
note that all power cables are keyed to fit only in
the correct position. The red edge of the diskette
drive signal cable is positioned as shown.
Drive Cage
2 of 4
Screws
