N75
Hardware User Guide
Copyright © Neoway Technology Co., Ltd
42

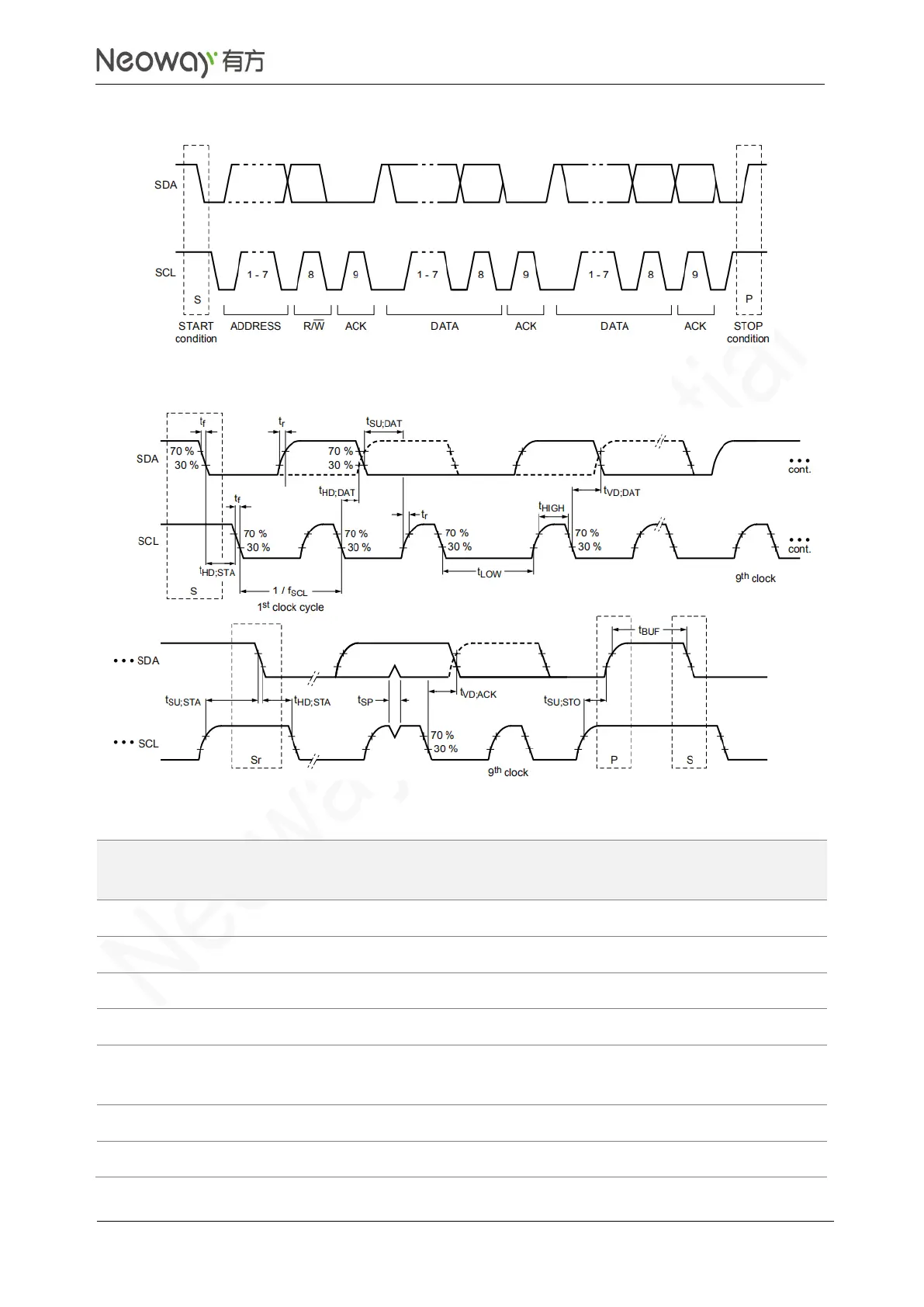

Figure 3-36 I2C data transmission
Figure 3-37 I2C timing
Table 3-11 I2C timing parameters (standard mode)
Timing Parameter
Minimum
Value
Typical
Value
Maximum
Value
Unit
f
SCL
SCL clock frequency
/
/
100
kHz
t
HD;STA
Hold time (repeated) START condition
4.0
/
/
us
t
LOW
LOW period of the SCL pin
4.7
/
/
us
t
HIGH
HIGH period of the SCL pin
4.0
/
5.0
us
t
SU;STA
Set-up time for a repeated START
condition
4.7
/
/
us
t
HD;DAT
Data hold time
0
/
/
us
t
SU;DAT
Data set-up time
250
/
/
ns
