7 Mounting the Module onto the Application
Board
N75 is introduced in 100-pin LGA package. This chapter describes N75V5 foot print, recommended
PCB design and SMT information to guide users how to mount the module onto application PCB board.
7.1 Bottom Dimensions

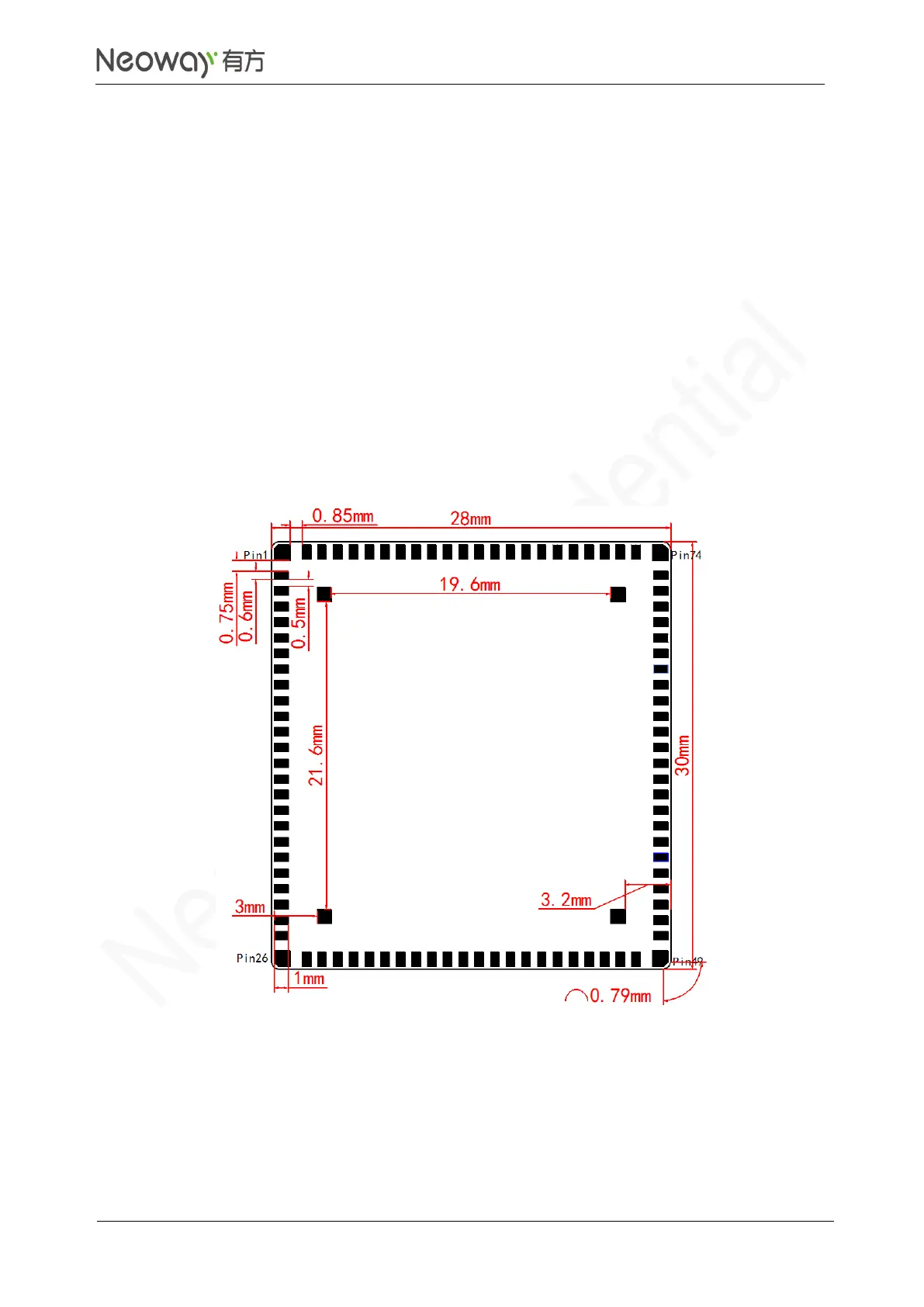

Figure 7-1 Bottom view
