l

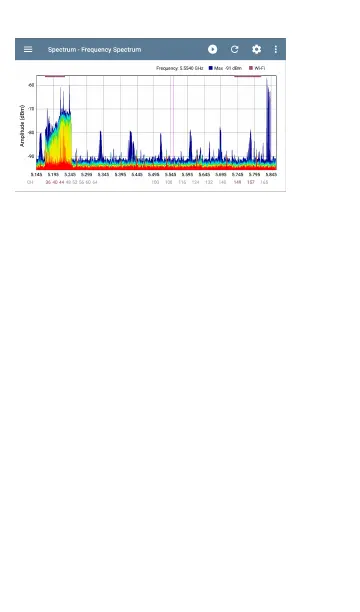

Blues and greens ("cool" colors) indicate less
RFdetected at that frequency and
amplitude.
l
Yellow, orange, and red ("hot" colors)
indicate the repeated presence of RF at that
frequency and amplitude.
l
Darkest blue indicates infrequent RFs while
red indicates the continuous presence of
RFat that amplitude.
l
The top of the chart shows numerical details
for display markers you have set and the Wi-
Fi legend color.
l
The range for the Y-axis (Amplitude)scales
automatically according to data values.
Spectrum Test App
623
