Fan modules and their LEDs System components AVA-400, AVA-800
Each fan module has a cam handle, a cam handle release latch, and an attention LED that indicates the status of the

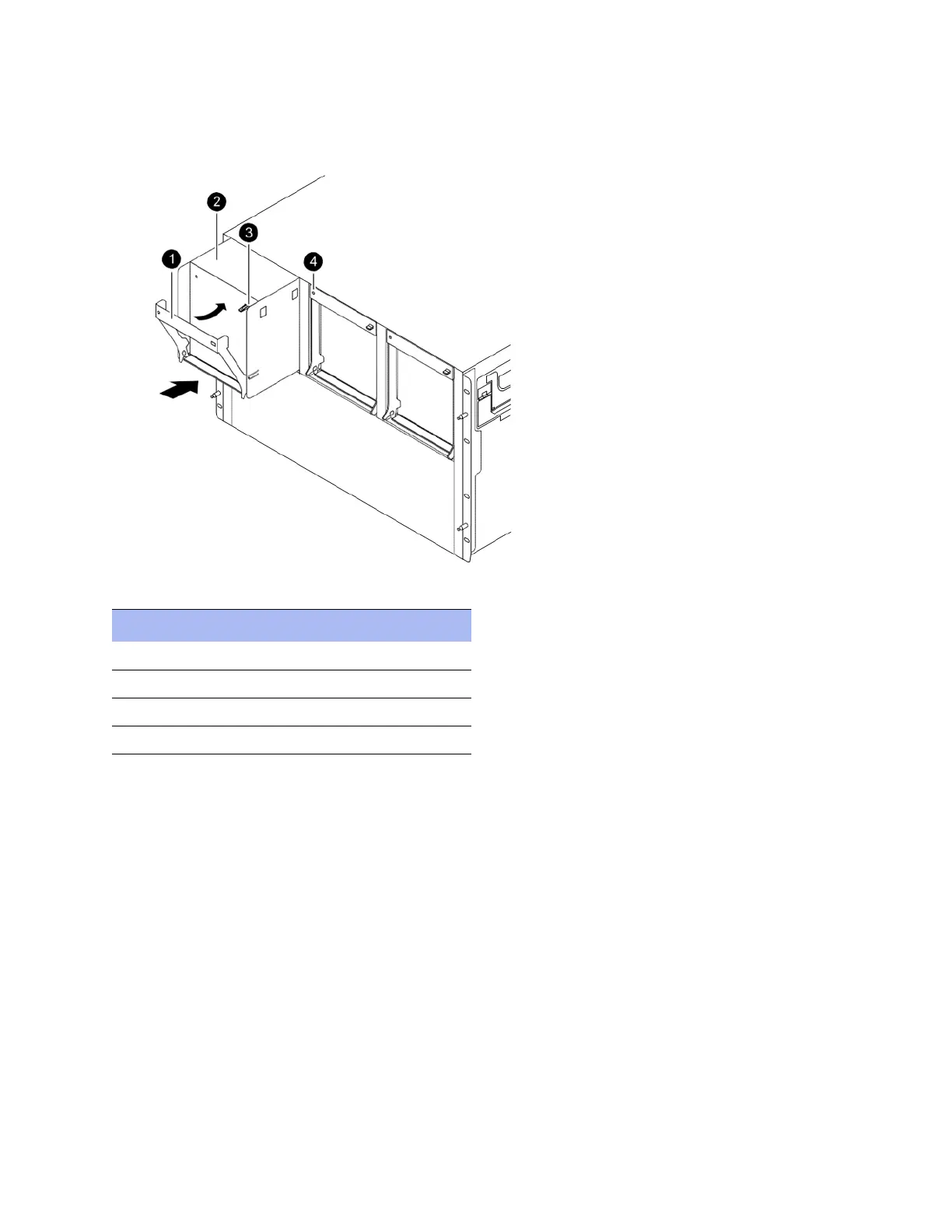

fan module. The image below displays the fan module component locations.
The following table displays the fan module components and descriptions:
To locate the fan modules and their LEDs
1. Remove the front bezel.
Component Description
1 Cam handle
2 Fan module
3 Cam handle release latch
4 Fan module attention LED
