Chapter 10. ACLs | 143
ProSafe 7000 Managed Switch Release 8.0.3
• In the Sequence Number field, enter 1.
c. Click Unit 1. The ports display.
d. Click the gray box under port 24. A check mark displays in the box.
e. Click Apply to save the settings.
12. Apply ACL 101 to port 48:

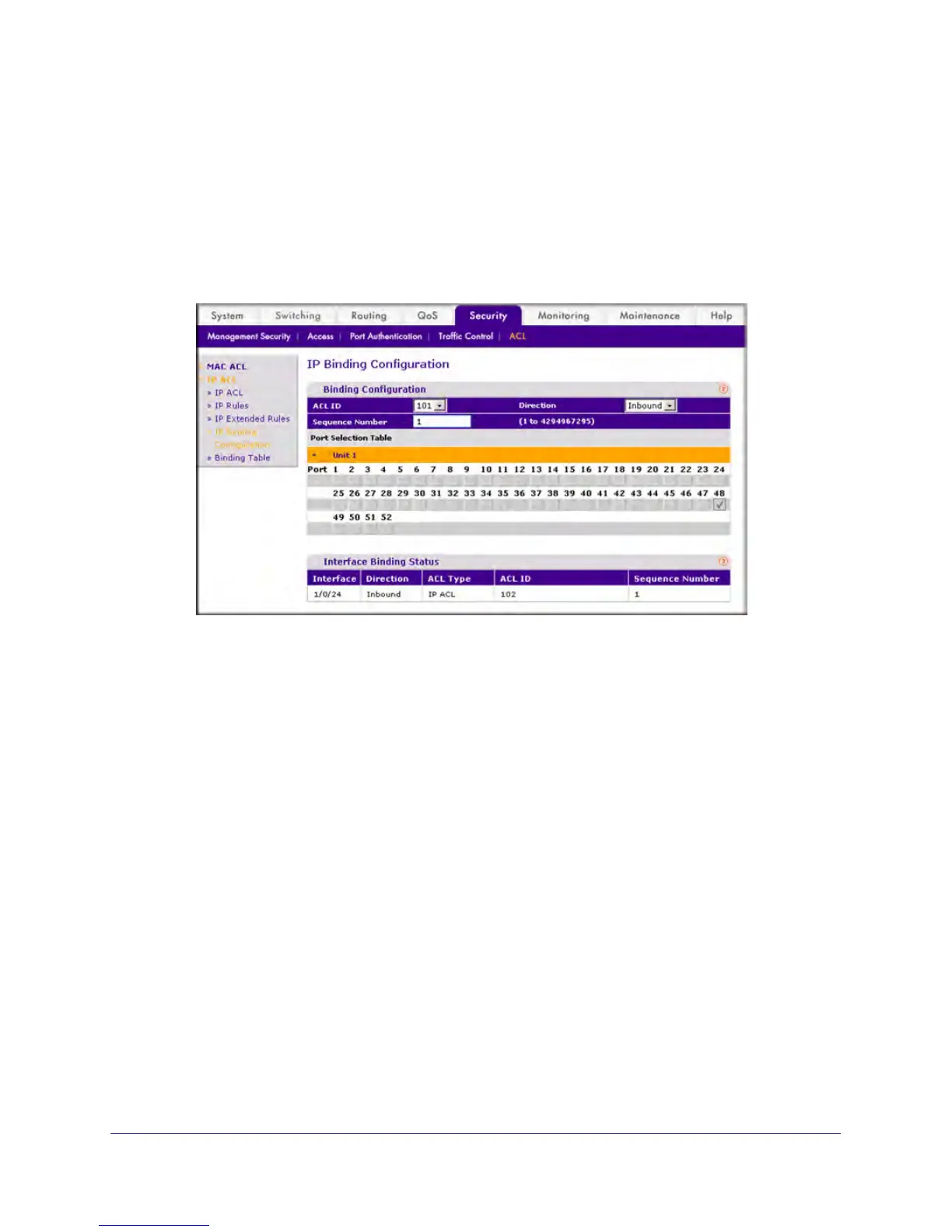

a. Select Security > ACL > Advanced > IP Binding Configuration. A screen similar to
the following displays.
b. Under Binding Configuration, make the following selection and enter the following
information:
• In he ACL ID field, select 101.
• In the Sequence Number field, enter 1.
c. Click Unit 1. The ports display.
d. Click the gray box under port 48. A check mark displays in the box.
e. Click Apply to save the settings.
13. Apply ACL 103 to port 24 and port 48:
