Once the Snapshot loads (following a 2 second delay), the Recall store load
process will prompt the user to begin the recall procedure.
Select [OK] to begin the recall procedure. If hard pot/fader recall is
not required, select [CANCEL]
Auto Scan 1
The Recall auto scan starts once OK has been pressed. This procedure
automatically scans all console pots and faders from channel 1 to 24.
Settings are read from the top of each channel strip downwards, scanning
from ST CUE PAN down to the channel FADER.
Each channel strip SOLO will light up as the channel strip settings are
automatically scanned.
This process is repeated for all 24 channels and then the master section is
scanned. All four group SOLOS will illuminate as the master section is being
automatically scanned.
The auto scan procedure scans the entire console 3 times, this ensures total
accuracy and compensates for any manual pot/fader motions entered by
the operator during the auto scan process.

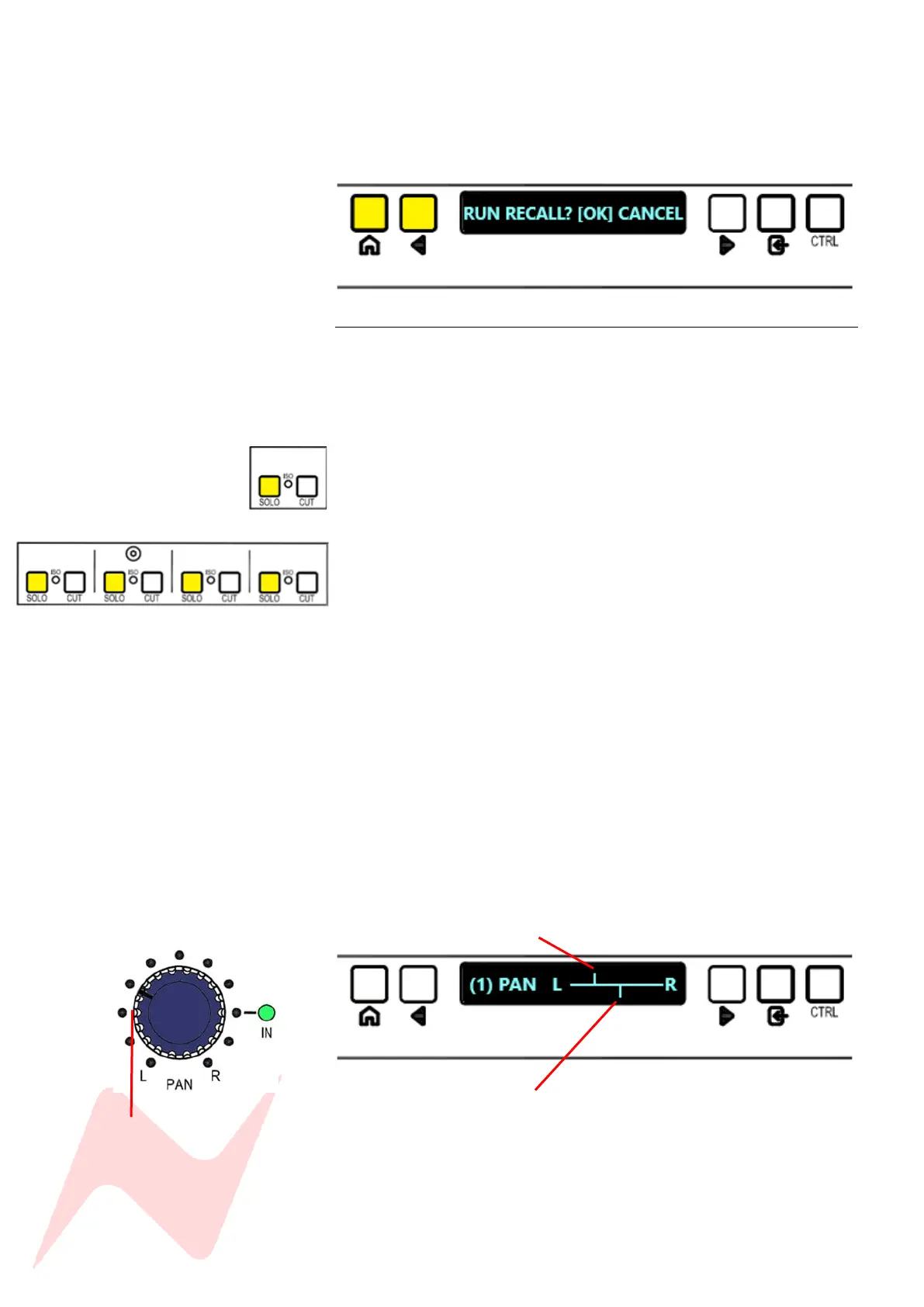

When the auto scan process finds a pot that is out of position from the
Recall Store saved position, the service window will display the channel
number (1) first, followed by the parameter name (in this example – PAN)
on the left side of the screen. The right side of the screen will display a
horizontal line with two attached vertical lines. L and R represent the Left
and Right pan pot directions.
The Top vertical line represents the current pot position.
The bottom vertical line represents the Console Store Saved pot position
Current Pot Position
Saved Pot Position
In the above example, Channel 1 PAN needs to be turned clockwise (Right)
in order to match the saved pot position. As the pot is turned, the top
vertical line will sweep across until it matches the saved pan pot position.
