User Manual MX Series Voice Gateway
116 New Rock Technologies, Inc.

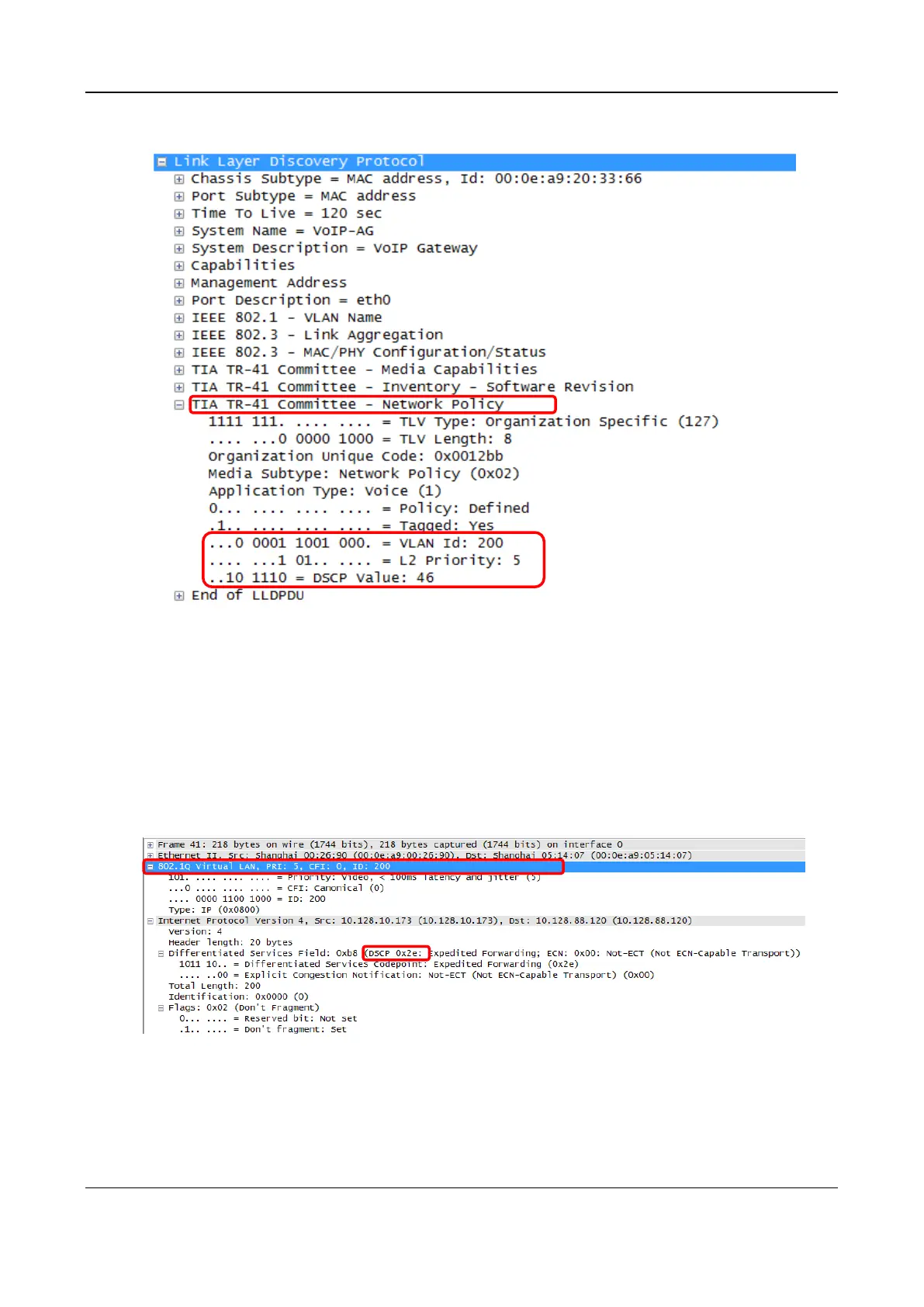

Figure 3-89 LLDP Message
 Sent Message with a VLAN ID
After obtaining a VLAN ID from the LLDP message, the device adds the VLAN information to the
Ethernet frame headers of all messages to be sent. In addition, the device adds a DSCP value to the RTP
message. Figure 3-90 shows the sent message with a VLAN ID.
Figure 3-90 Adding a VLAN ID to the Message to Be Sent
3.1.2 DHCP
The device obtains the VLAN tag and QoS using DHCP option 132 and option 133 from DHCP server. Be
