User Manual MX Series Voice Gateway
22 New Rock Technologies, Inc.
Models
Number of FXS Ports
Number of FXO Ports
MX60-24S/8
24
8
MX60-40S/8
40
8
MX60-16S/16
16
16
MX60-32S/16
32
16
MX60-24S/24
24
24

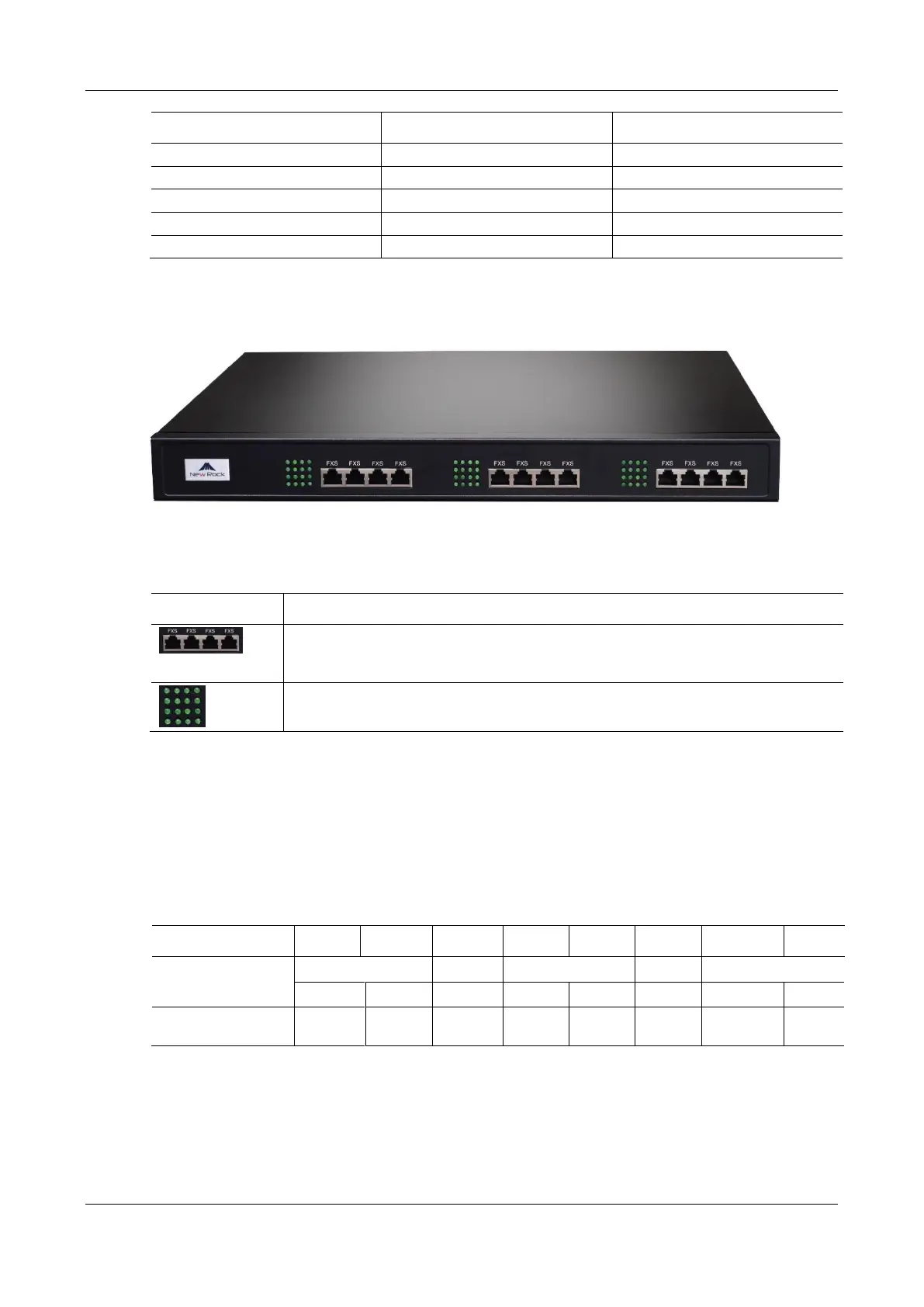

Figure 1-6 MX60 Front Panel
Table 1-12 Description of MX60 Front Panel
Item
Description
Three interface slots; each can correspond with four RJ45 sockets; each RJ45socket can
correspond with four pairs of analog lines.
Note: Numbers of interface slots vary from different configuration.
Matrix of 4 x 4 LED status indicators on interface card.
Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with the
pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table below.
CAT-5 cables are used to connect the interface card and distribution panel in equipment installation.
Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are connected
to the 3
rd
pair of pins for simple call test.
Table 1-13 Pin Specifications for MX60 RJ45 Socket Port
RJ45 Pin Number
1
2
3
4
5
6
7
8
Analog line pair
1
st
Pair
2
nd
Pair
3
rd
Pair
2
nd
Pair
4
th
Pair
TIP1
RING1
TIP2
TIP3
RING3
RING2
TIP4
RING4
Reference color
Orange
white
Orange
Green
white
Blue
Blue
white
Green
Brown
white
Brown
