User Manual MX Series Voice Gateway
118 New Rock Technologies, Inc.

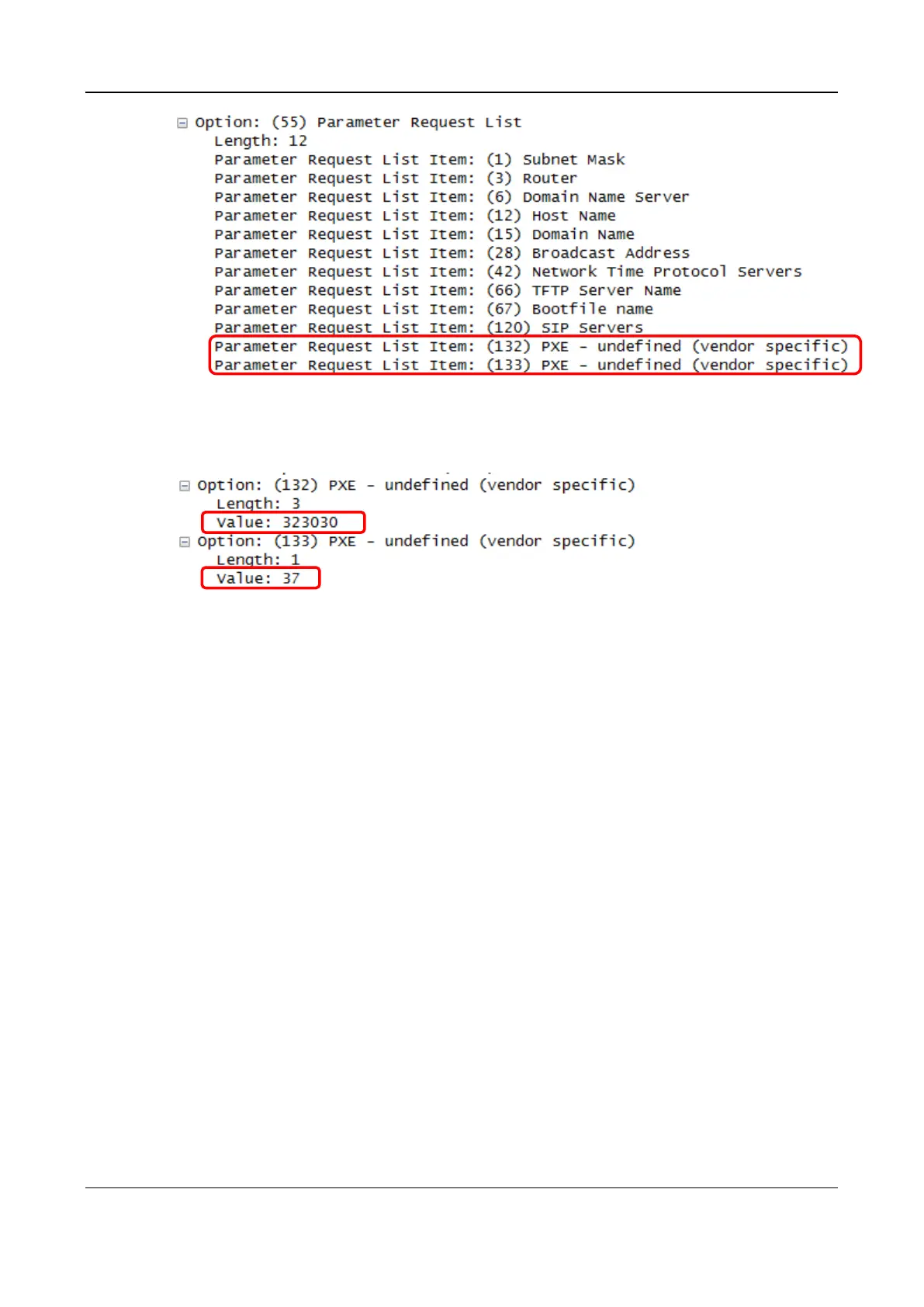

2. DHCPOFFER returned by the DHCP server
3.2 Manual Configuration
3.2.1 Single VLAN
All services of the device are on the same VLAN, and the device receives only data packets carrying the
VLAN and includes the VLAN tag in all sent data packets. In the single VLAN mode, all device services
belong to the same VLAN. The device receives only data packets that carry the VLAN tag and includes the
VLAN tag in all sent data packets. In this mode, the physical network port of the device has no separate
address and shares the IP address of the VLAN interface.
Configuration
On the web interface, click Basic > VLAN, set the Activate to On, set Mode to Single VLAN, enter the
VLAN tag, and specify network information such as IP address or select DHCP. As shown in Figure 3-91.
