1.4 Web Management Page
1.4.1 Layout
The Web GUI of the MX series gateways includes a general information display bar, a general operation
bar, a menu bar, and a configuration area.

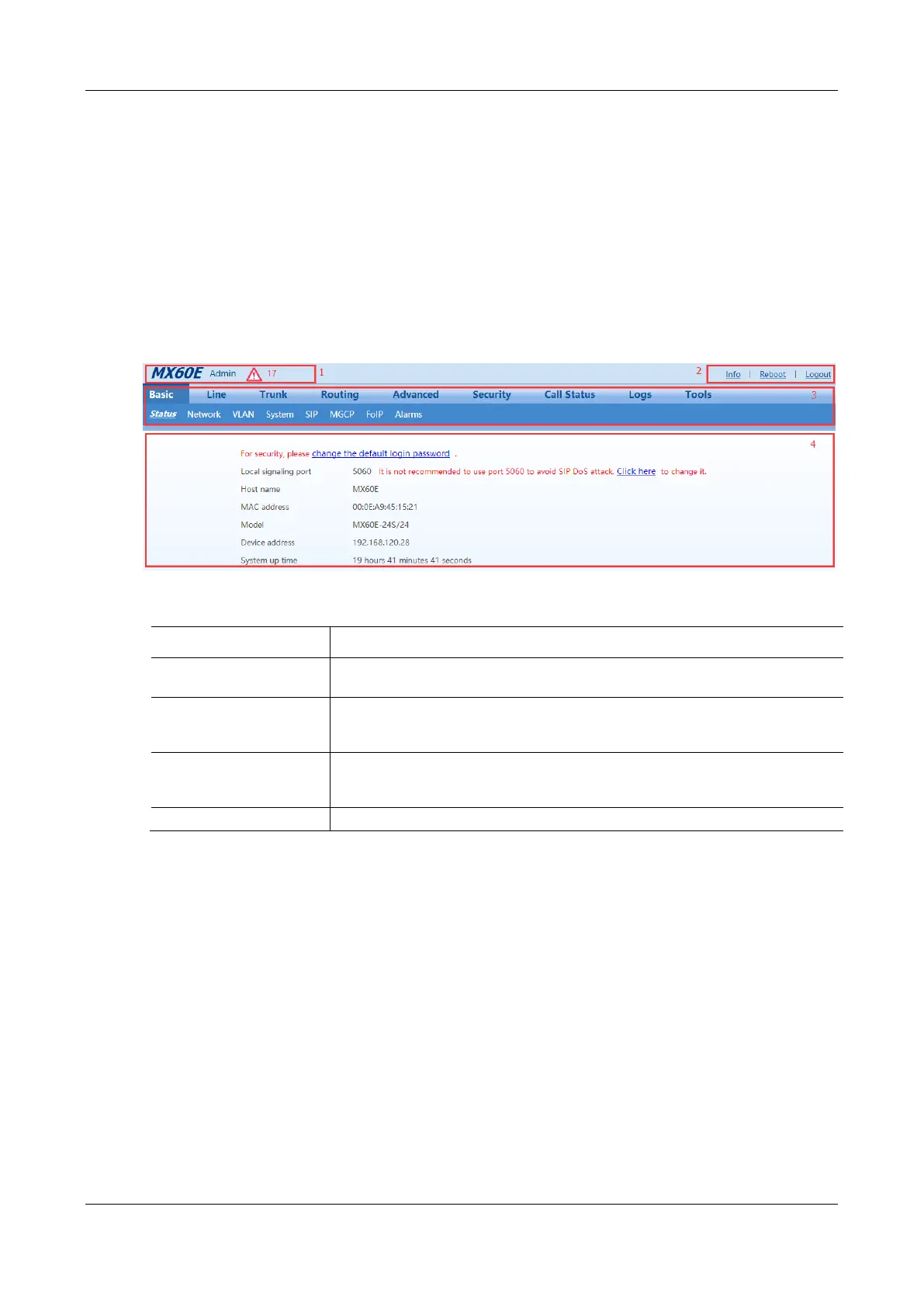

Figure 1-17 Web GUI
Table 1-30 Web GUI Layout Description
1. General information
display bar
Displays the device name, login identity, current quality of alarms, and time
synchronization status.
Provides access to product information, comments, device restart, and exit, and provides
a search box for searching for a corresponding configuration page according to a
function name.
Includes a two-level menu structure. When the cursor is moved to an upper-level menu,
the lower-level menu is displayed for your selection. After you click a tab, the tab page
is displayed in the configuration area.
Allows you to modify and view configurations.
1.4.2 Buttons Used on Gateway Management Interface
A save button is at the bottom of each configuration interface. It is used to submit configuration
information. Users should click the Save button after the completion of parameter configuration on a
page. A success prompt will appear if configuration information is accepted by the system; if The
configuration takes effect after the system is restarted dialog box appears, it means that the parameters
are valid only after a system restart. It is recommended that users press the Reboot button on the top right
corner to enable the configuration after changing all parameters to be modified.
