MX Series Voice Gateway User Manual
New Rock Technologies, Inc. 39

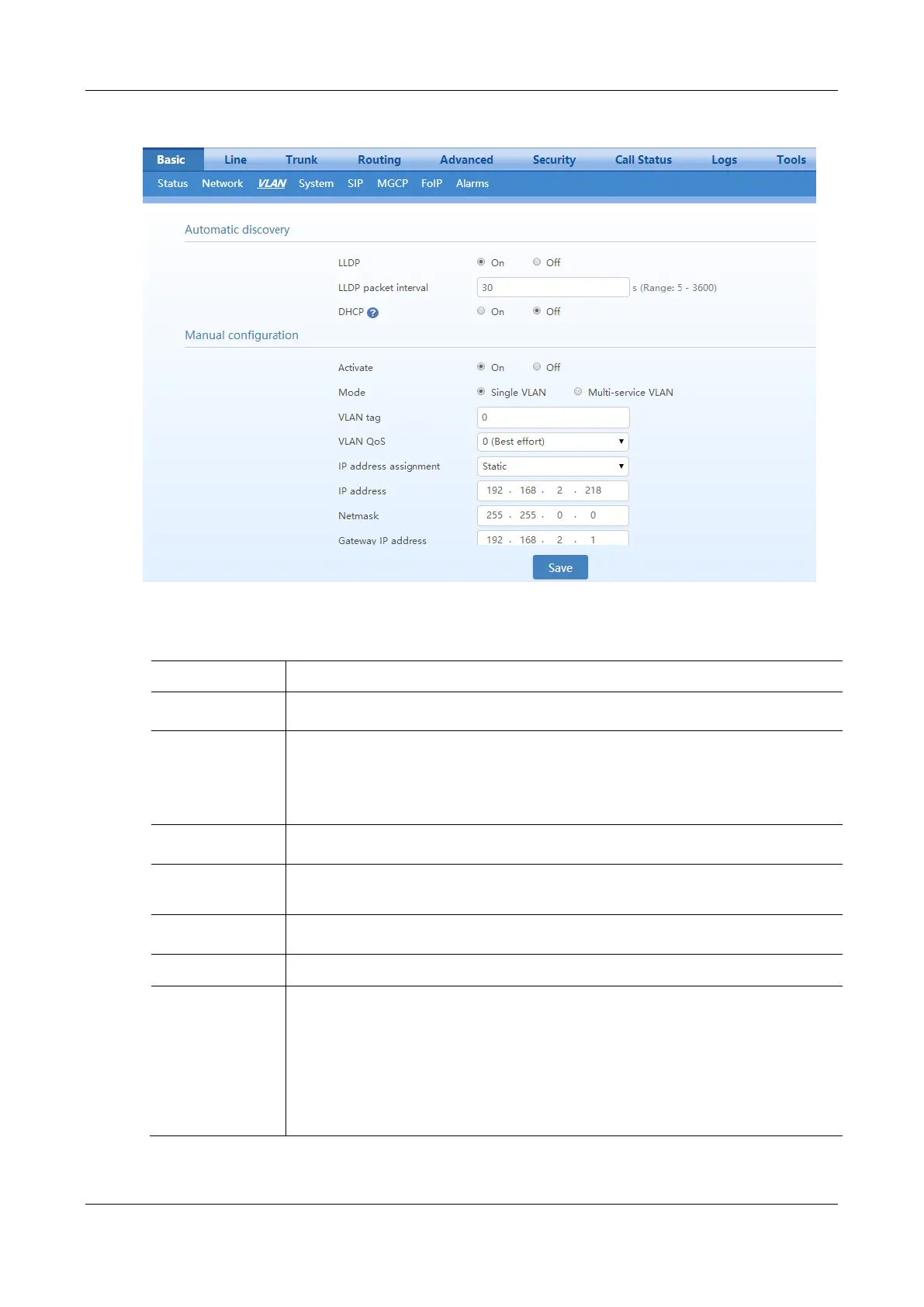

Figure 2-22 VLAN Configuration Interface
Table 2-4 VLAN Configuration Parameters
Name
Description
Automatic
discovery
LLDP
 On: Indicates that the LLDP is enabled. The device periodically sends LLDP messages and
parses received LLDP messages to get VLAN ID and priority.
 Off (default value): Indicates that the LLDP is disabled. The device does not send any LLDP
messages, nor parses any received LLDP messages.
LLDP Packet
interval
This parameter specifies the interval at which LLDP messages are sent after the LLDP is
enabled. The value range is 5 to 3600 seconds. The default value is 30 seconds.
DHCP
Enable the device to obtain the VLAN tag and QoS by using DHCP option 132 and option 133.
Note: This function works only when DHCP is selected on Basic>Network page.
Manual
configuration
Activate
Enable/disable VLAN.
Mode
Select the VLAN mode:
 Single VLAN: All services of the device are on the same VLAN, and the device receives
only data packets carrying the VLAN and includes the VLAN tag in all sent data packets.
 Multi-service VLAN: The device can configure different VLAN information for the voice
service (SIP signaling and RTP/T.38 media stream) and the management service
(HTTP/HTTPS, Telnet) and includes a different VLAN tag in a data packet of a different
service.
