Smart Surveillance

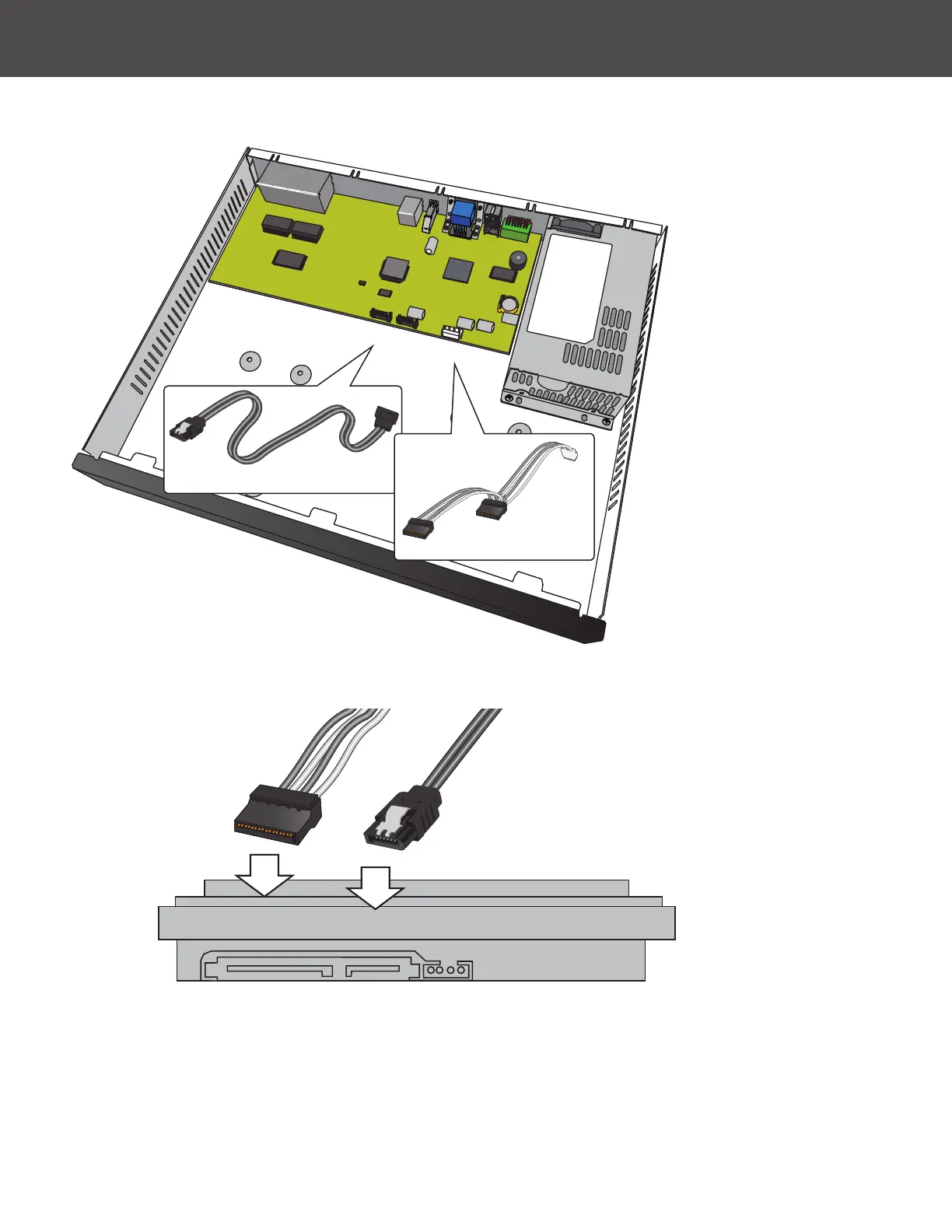

4� Connect the SATA power and SATA data cables to the hard drive�
SATA power SATA data
3� Attach the SATA Data cable to the SATA2 connector on the NVR mother board�
SATA2
SATA1
J3
SATA Data x2
SATA Power x1
