Graphical Layout and Screen Elements - Search

Search Conditions

Calendar

Congured alarms

Trigger types

Search results

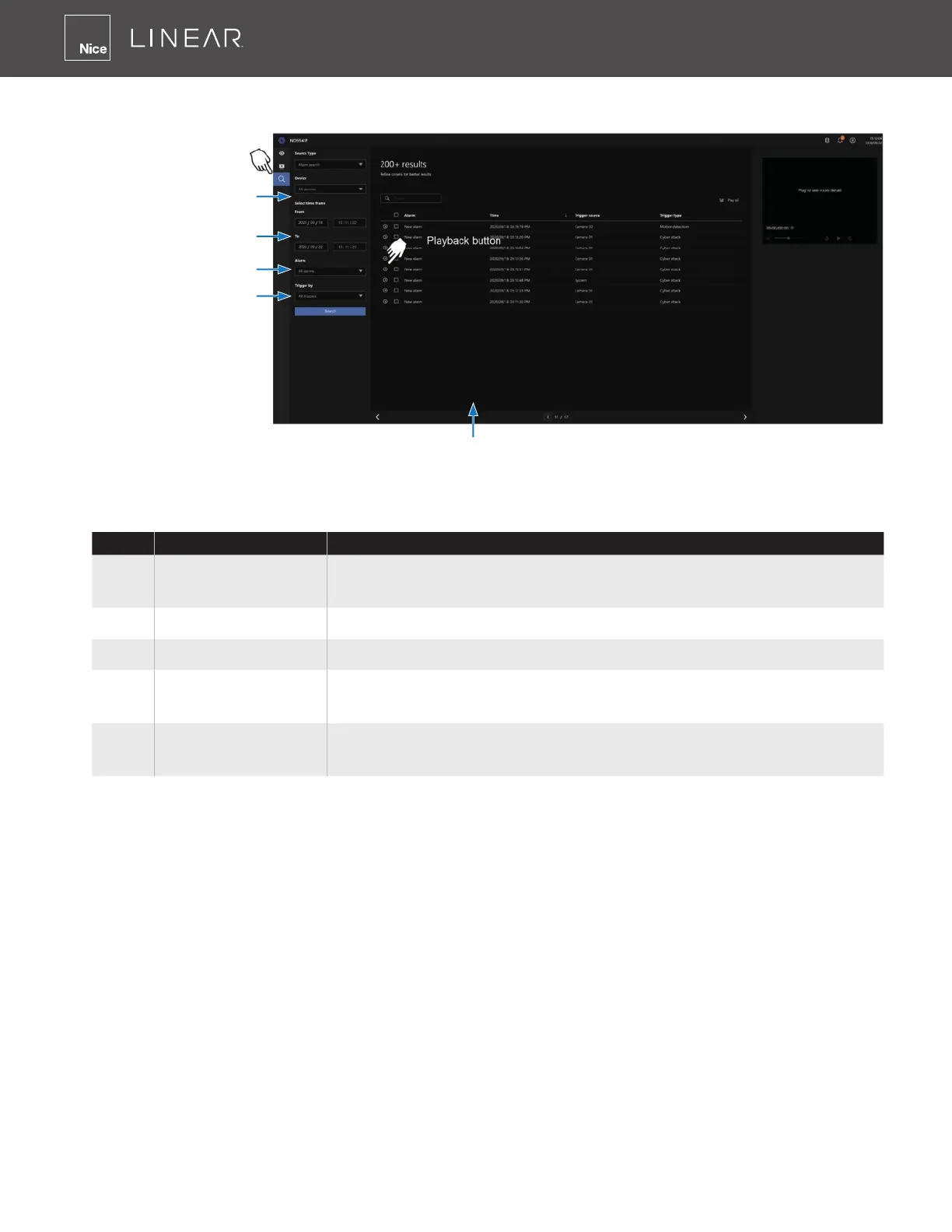

The screen elements of the Playback window are described as follows:
Item Name Description
1
Search conditions
The whole panel provides access to search conditions� You can select
Devices, time span, pre-congured alarms or trigger types�
2
Calendar Shows when the possible time of occurrence of alarms�
3
Congured Alarms Select the alarms you previously congured on the system�
4
Trigger types
There are many trigger types including system event triggers, cyber
attacks, DI/DO or the numerous VCA detection triggers�
5
Search results
The results are displayed by Alarm name, Time of occurrence, Trigger
source and the Trigger type�
