16 Unidrive M Regen Design Guide
Issue Number: 4
3.2 Nameplate description
See Figure 3-3 on page 20 for location of rating labels.

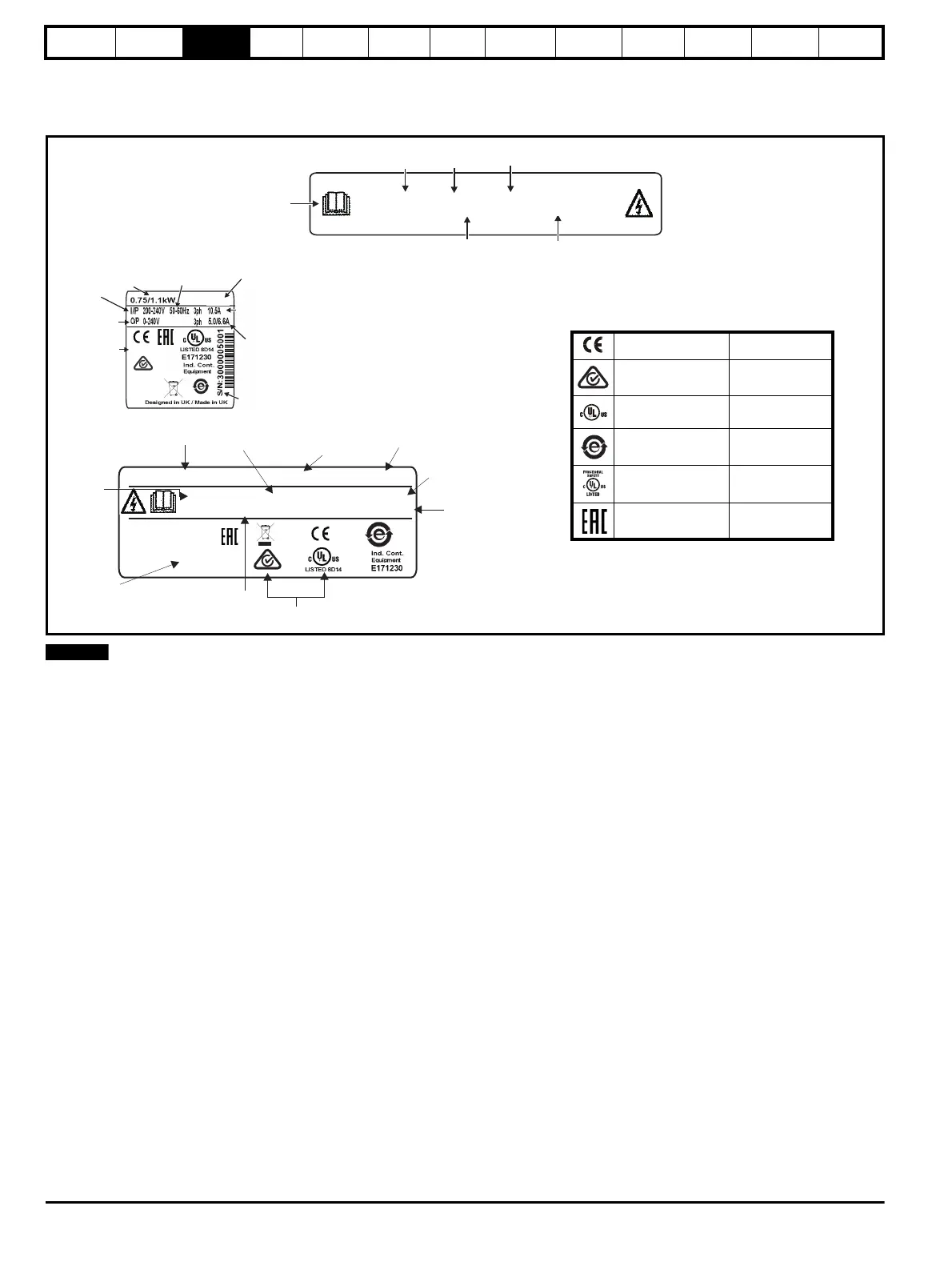

Figure 3-2 Typical drive rating labels
Date code format
The date code is four numbers. The first two numbers indicate the year and the remaining numbers indicate the week of the year in which the drive
was built.
Example: A date code of 1710 would correspond to week 10 of year 2017.
Refer to
User Guide
Model
Frame
size
Voltage
Heavy Duty
current rating
Drive format
M600-032 00050 A
M600-074-00660-A 30/37kW 1714
I/P 380-480V 50-60Hz 3ph 74A
O/P 0-480V 3ph 66/79A
Designed in UK
Made in U.K.
Serial No: 3000005001
No. of Input phase &
Input current
No. of Output phase
&
Output current
Heavy Duty/
Normal Duty Rating
Model
Input
frequency
Heavy Duty /
Normal Duty
power rating
Date code
Approvals
Serial number
Input
voltage
Output
voltage
Large label*
Approvals
Input voltage
Output
voltage
Heavy Duty /
Normal Duty
power rating
Date code
Serial
number
Input
frequency
No.of phases &
Typical input current for
Normal Duty rating
Heavy Duty /
Normal Duty rating
output current
1714
Key to approvals
CE approval Europe
RCM regulatory
compliance mark
Australia
UL / cUL approval USA & Canada
RoHS compliant China
Functional safety USA & Canada
Eurasian conformity Eurasia
R
NOTE
