Unidrive M Regen Design Guide 81
Issue Number: 4

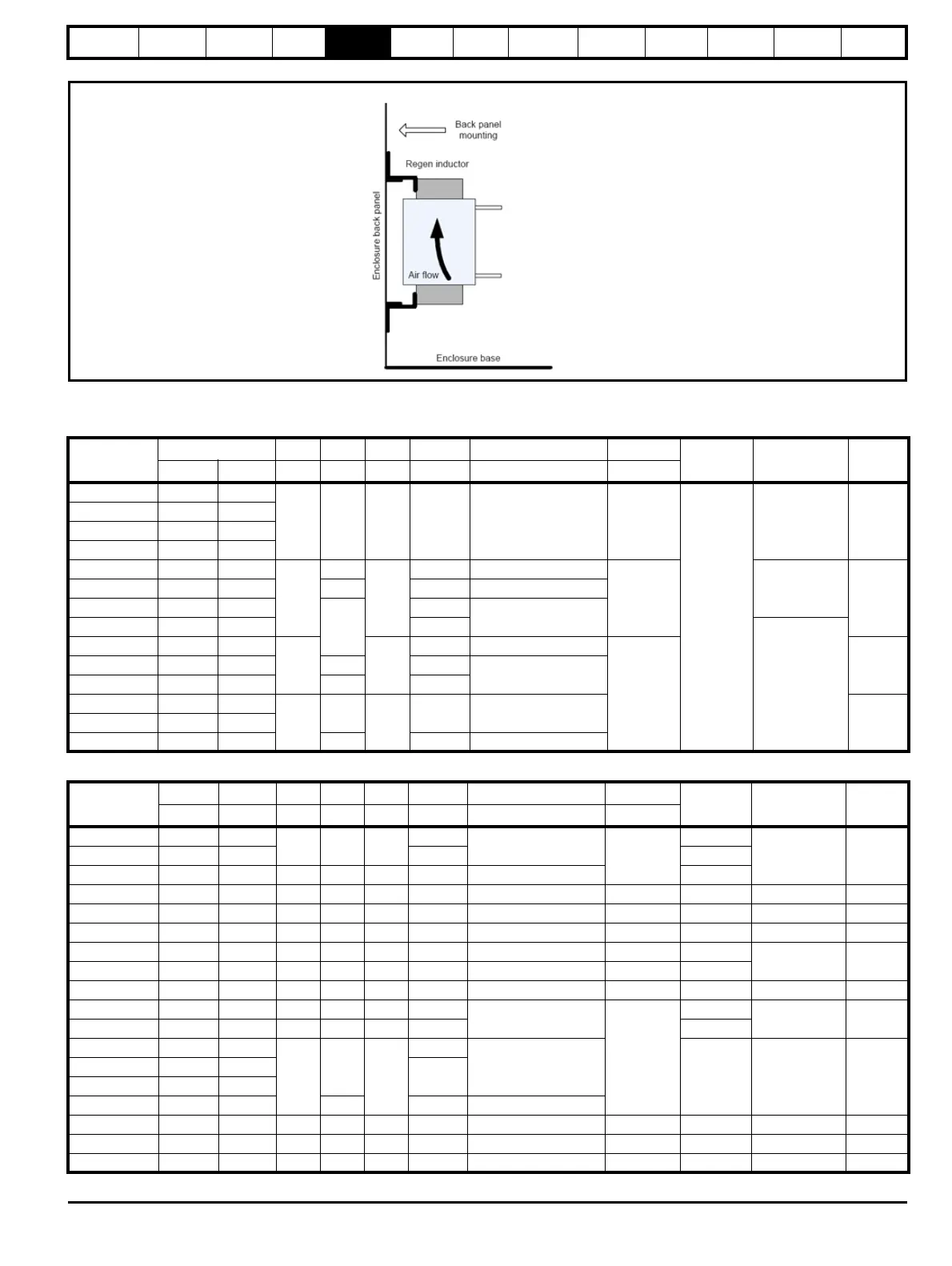

Figure 5-7 Back panel Regen inductor mounting
5.3.2 Switching frequency filter inductor
Table 5-4 200 V SFF inductor specifications
Table 5-5 400 V SFF inductor specifications
Inductor part
number
Ratings L D H Weight Fixing centres (x * y) Fixing
Fixing
type
Termination
size
Type
A mH mmmmmm kg mm mm
4401-1310 9.6 0.880
150 90 150 4 120 x 47 8 x 18
B
6 way terminal
block
1
4401-1311 11 1.500
4401-1312 15.5 1.100
4401-1313 22 0.700
4401-1314 31 0.500
180
100
190
6 130 x 54
8 x 20
Ø 9 mm hole
2
4401-1315 42 0.400 120 10 130 x 74
4401-1316 56 0.300
160
12
130 x 184
4401-1318 80 0.200 13
Ø 11 mm hole
4401-1319 105 0.160
240 255
16 200 x 180
10 x 20
34401-1321 156 0.110 180 22
200 x 100
4401-1322 192 0.088 190 25
4401-1323 250 0.068
300
180
300
37 204 x 113
44401-1324 312 0.055
4401-1325 350 0.048 190 49 204 x 123
Inductor part
number
Amps mH L D H Weight Fixing centres (x * y) Fixing
Fixing
type
Termination
size
Type
Amps mH mm mm mm kg mm mm
4401-0162 9.5 3.160
15075135
3.1
120 x 47
8 x 12
C
6 way terminal
block
14401-0163 12 2.500 3.3 C
4401-0164 16 1.875 180 82 158 5.3 130 x 58 C
4401-0165 25 1.200 180 140 179 10 130 x 74 8 x 12 C Ø 9 mm hole 2
4401-0166 34 0.880 180 179 151 12 130 x 84 8 x 12 C Ø 9 mm hole 2
4401-0167 40 0.750 180 179 151 11 130 x 84 8 x 12 C Ø 9 mm hole 2
4401-0168 46 0.650 180 116 179 9.8 130 x 84 8 x 12 C
Ø 9 mm hole 2
4401-0169 60 0.500 240 110 247 20 200 x 80 11 x 20 C
4401-0170 77 0.390 240 168 247 17 200 x 90 11 x 15 C Ø 9 mm hole 2
4401-0171 96 0.315 240 180 258 18
200 x 100
11 x 20
C
Ø 9 mm hole 2
4401-0172 124 0.240 240 185 260 20 C
4401-0173 156 0.190
300
177
300
24
204 x 113
B Ø 11 mm hole 3
4401-0174 180 0.165
25
4401-0175 220 0.135
4401-0176 300 0.100 195 40 204 x 130
4401-1205 350 0.080 360 250 317 55 204 x 160 11 x 30 C Ø 13 mm hole 3
4401-0301 437 0.067 348 176 317 55 328 x 265 9 x 14 C Ø 13 mm hole 3
4401-0302 487 0.060 357 175 322 58 328 x 267 9 x 14 A Ø 14 mm hole 2
