5. Give each channel a numerical label, m-n, where m is the source number and n is the detector
number:

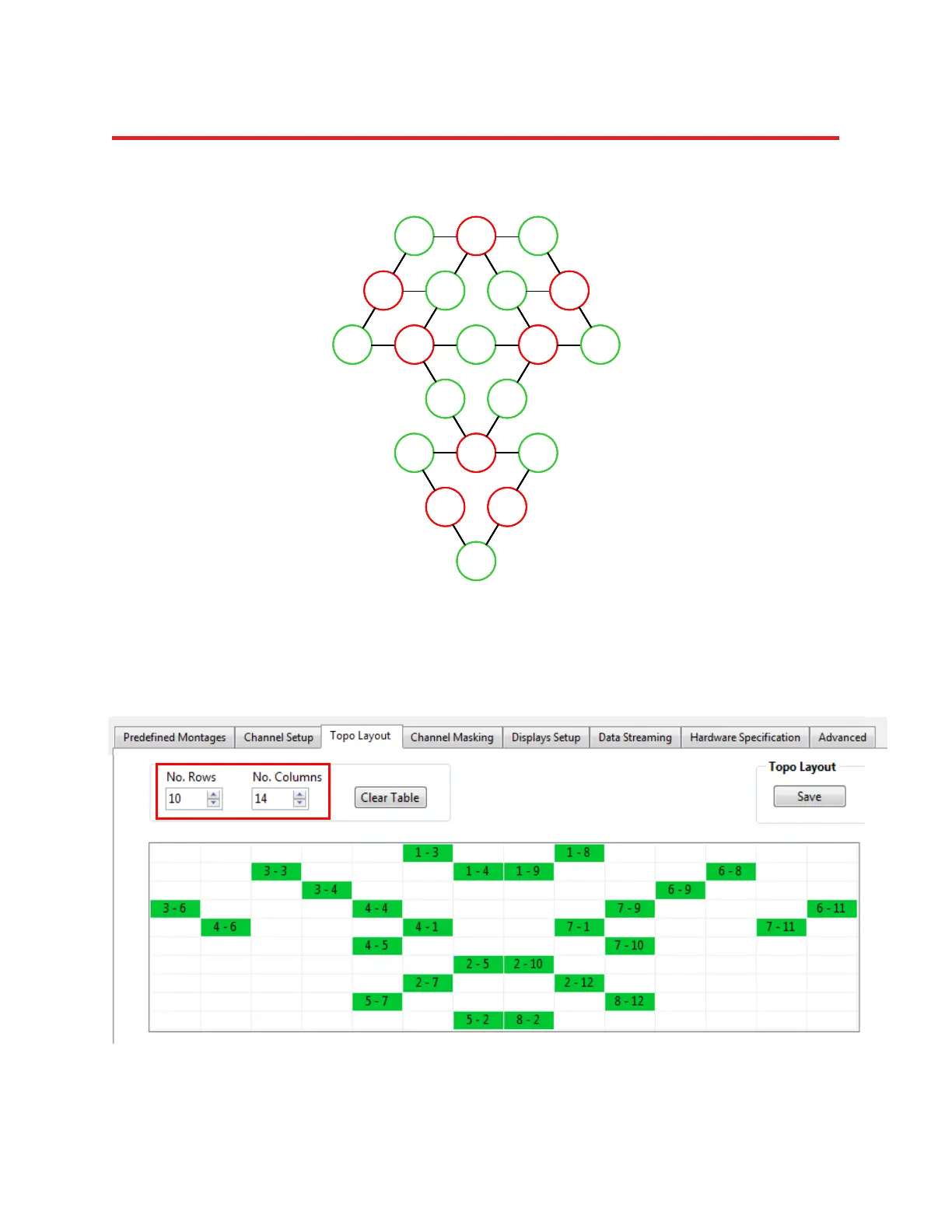

Figure 102: Labeling the channels.
6. In the Topo Layout tab of the Configure Hardware menu, specify a layout array containing M rows and
N columns (here, M = 10 and N = 14) and fill in the channel-layout squares that correspond to the row
and column indices identified in Steps 3 and 4. Use the channel labels identified in Step 5:
Figure 103: Transfer the schematic to the layout editor
