User Manual N11
Power supplies
Industrial PC
3085-US-2.4 www.noax.com Page 23 of 120
6 Power supplies
6.1 External power supply
The scope of delivery of the external power
supply consists of the following
components:
D country‐specific power cord
D power supply with device connector
cable
D mounting bracket for installation

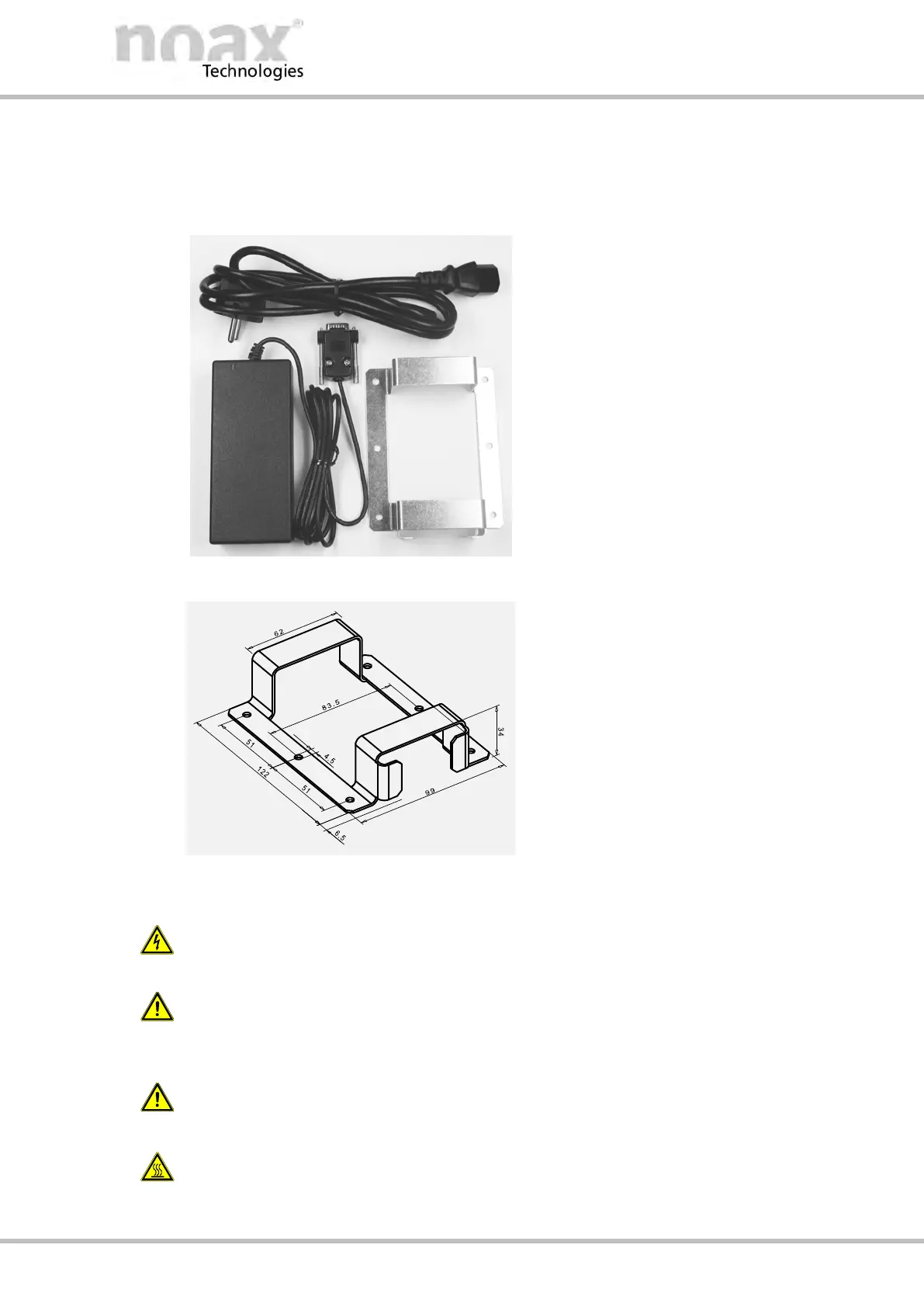

Fig. 4: External power supply
The mounting bracket is used to hold the
power supply.
Using the mounting holes in the mounting
bracket, the power supply can be mounted
directly onto a wall, for example.
Fig. 5: Dimensional drawing for the Mounting bracket
(all dimensions in mm)
Danger
Do not open the power supply housing! It does not contain any serviceable parts.
W
arning
Only operate the power supply within the scope of its technical specifications.
(See Chapter 15.4.1.)
Warning
Only operate the power supply in dry environments!
Warning
The power supply must not be positioned or operated in the housing or in the
connector area of the Industrial PC. This would create a risk of overheating.
