noax N11 - Connector Area for Models with Internal Power Supply

User Manual N11
Connectors and interfaces
Industrial PC
www.noax.comPage 48 of 120 3085-US-2.4
9.4
Connector area C15, C15P, C19, C21W, S15P, S15R,
S19P, S19R, S21WP, S21WR with option “internal
power supply”
7
1
3
2
8
4
9
5
6

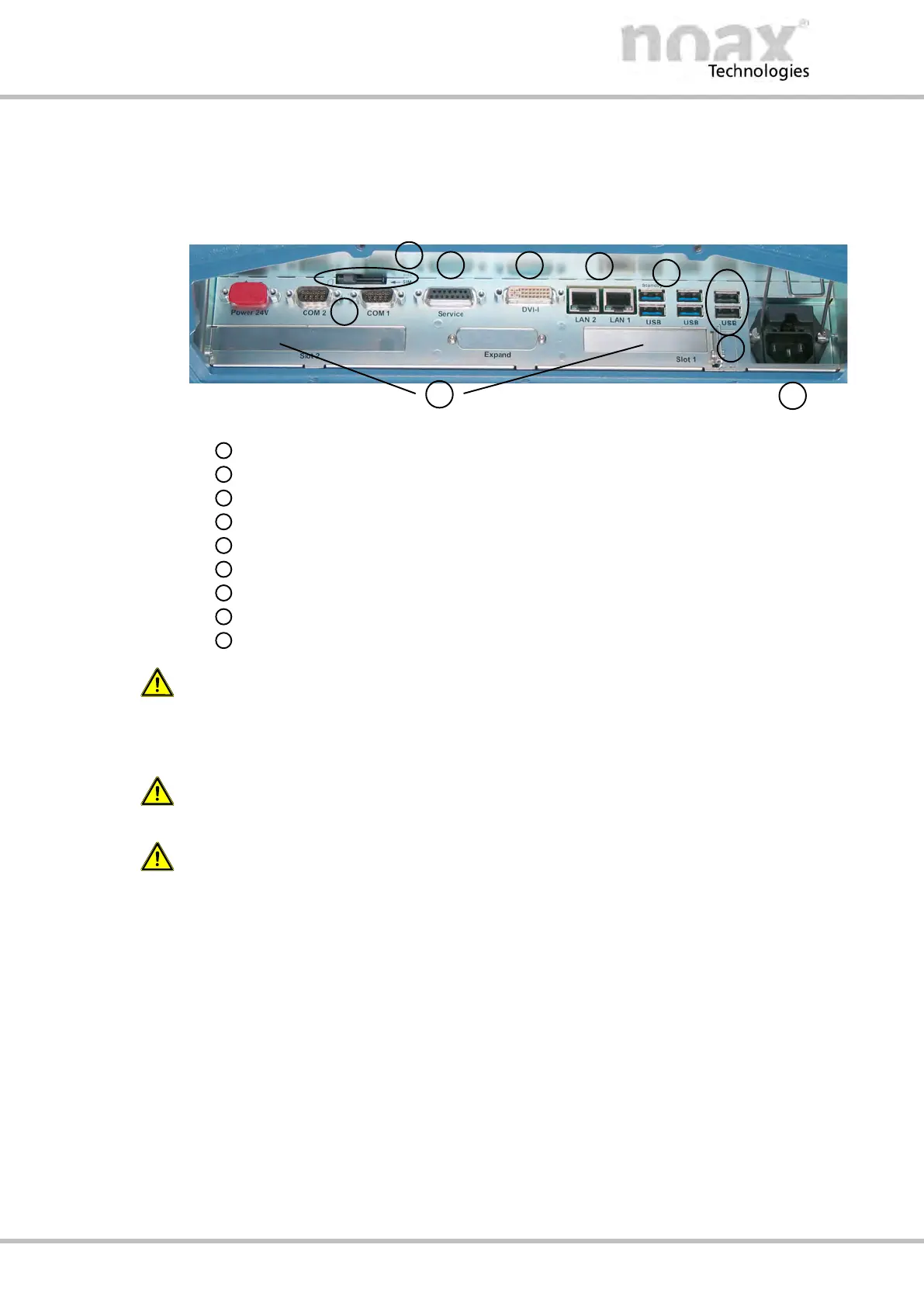

Fig. 39: Connector area of C19‐N11G with the option “internal power supply”
Free PCI/PCI Express card slots (Slot 1 low profile PCI/PCIe slot)
Two USB 2.0 ports
Four USB 3.0 ports
Two LAN ports with status LEDs
DVI monitor port
Service port
SIM card slot
Two COM interface ports
Mains input connector with two fuses
W
arning
Use only the mains power cord that was supplied with the device!
Only this cable used in conjunction with the safety catch from the mains input connec
tor can ensure secure locking of the plug connection.
Warning
Please ensure that the mains power cord is not damaged.
Warning
Connect and disconnect all device connectors only when de‐energized.
1
2
3
4
5
6
7
8
9
