8.8 Industrial PC Steel - S15‐G2 and S19
8.8.1 Industrial PC Steel - S15‐G2
1
2
2

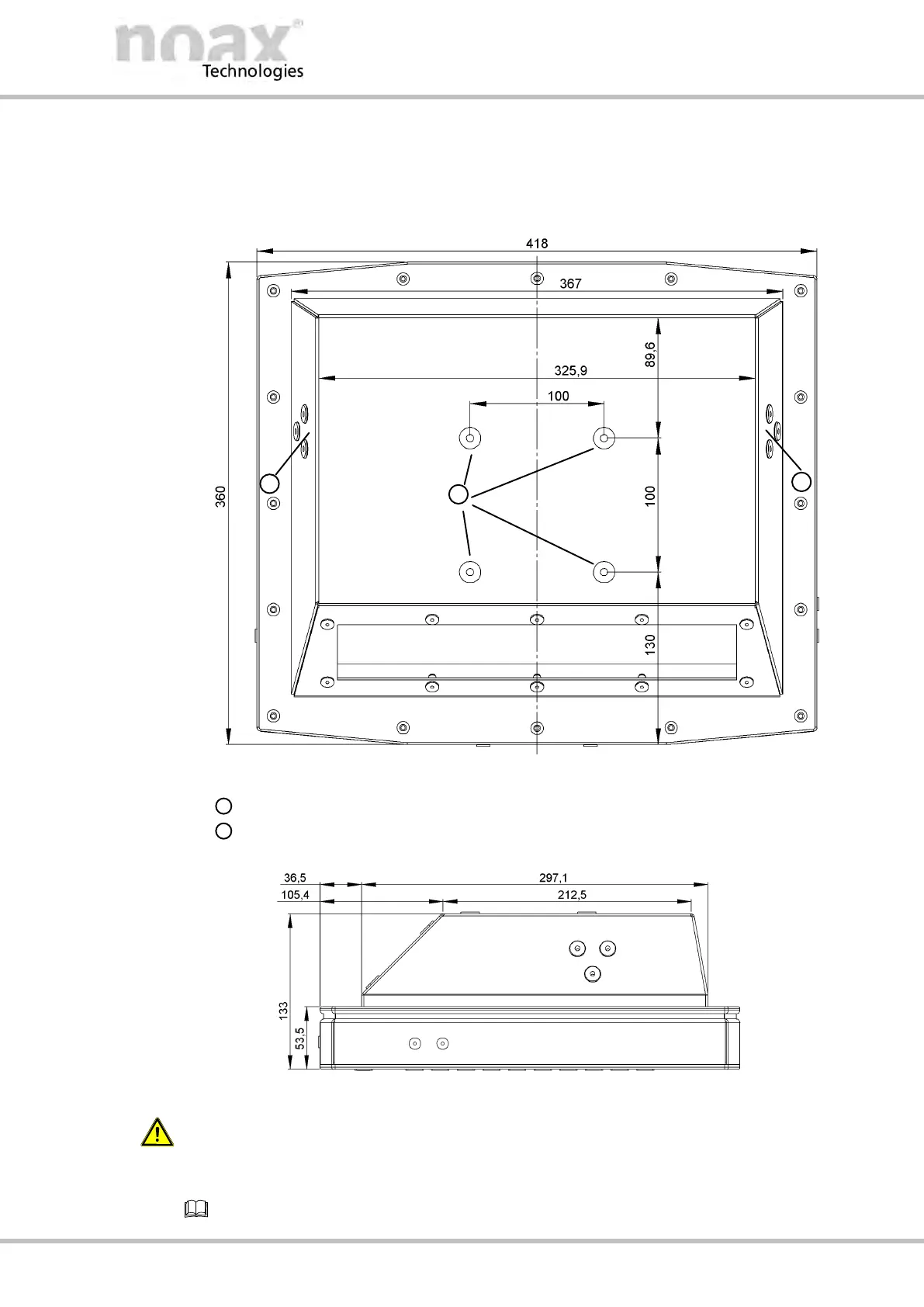

Fig. 24: Rear panel S15‐G2 (all dimensions in mm)
VESA 100 mounting option with M6 thread (depth 7.5 mm / 0.3 inches)
Side mounting option for device bracket
Fig. 25: Side view S15‐G2 (all dimensions in mm)
Warning
Make sure that the device is attached stable and secure. When choosing your mount
ing option, pay attention to the weight of the device.
See also the technical data in Chapter 15
