9.5 Connector area S15 with option
“internal power supply”
7
1
3
2
8
4
9
5
6
10

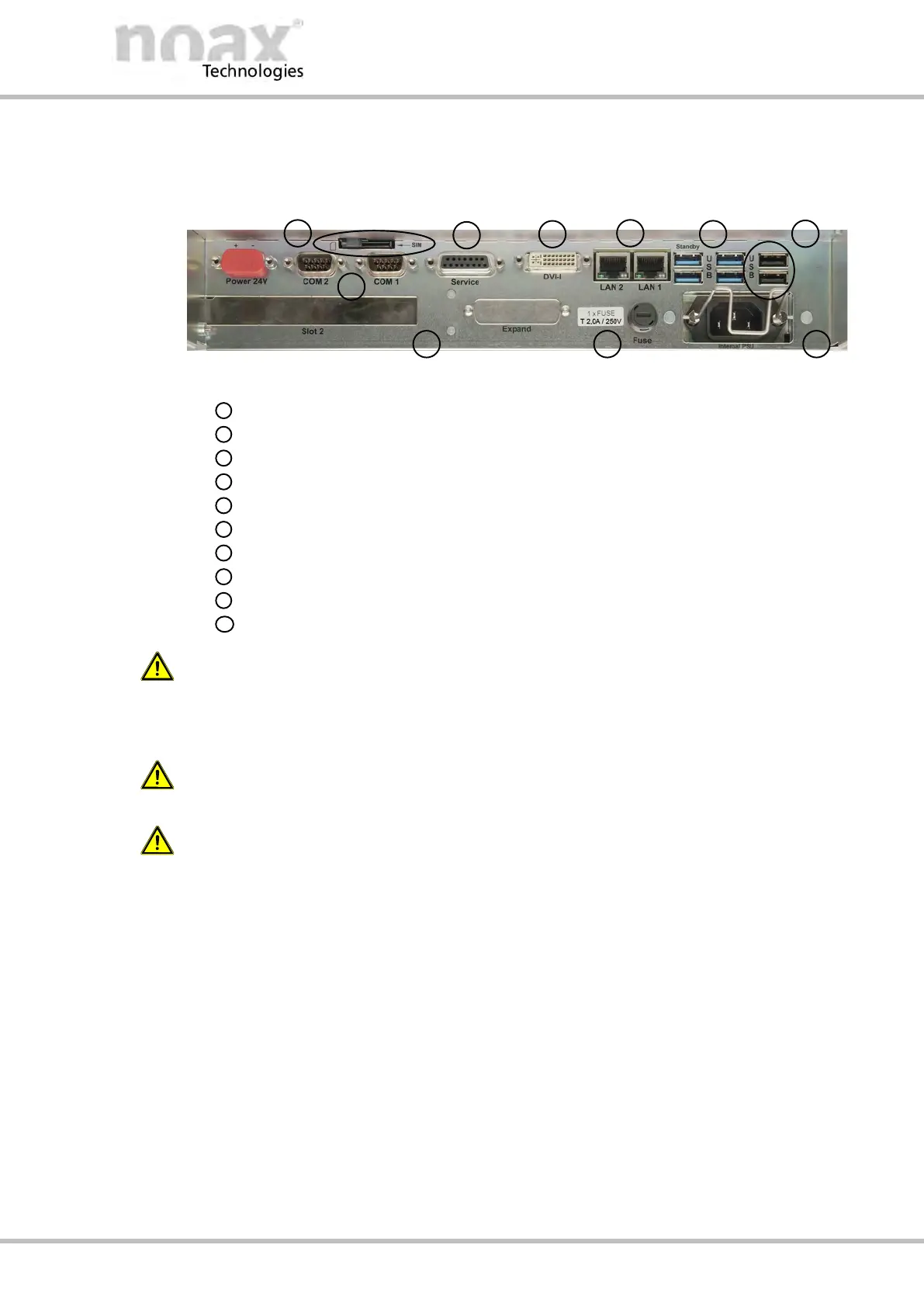

Fig. 40: Connector area of S15‐N11G with the option “internal power supply”
Free PCI/PCI Express card slot
Two USB 2.0 ports
Four USB 3.0 ports
Two LAN ports with status LEDs
DVI monitor port
Service port
SIM card slot
Two COM interface ports
Mains input connector
Supply voltage input fuse
W
arning
Use only the mains power cord that was supplied with the device!
Only this cable used in conjunction with the safety catch from the mains input connec
tor can ensure secure locking of the plug connection.
Warning
Please ensure that the mains power cord is not damaged.
Warning
Connect and disconnect all device connectors only when de‐energized.
1
2
3
4
5
6
7
8
9
10
