User Manual N11
Power supplies
Industrial PC
www.noax.comPage 24 of 120 3085-US-2.4
6.2
External power supply IP65 (NEMA 4)
The external power supply with protection
class IP65 (NEMA 4) can be mounted
directly onto a retainer plate, for example,
using the mounting holes.

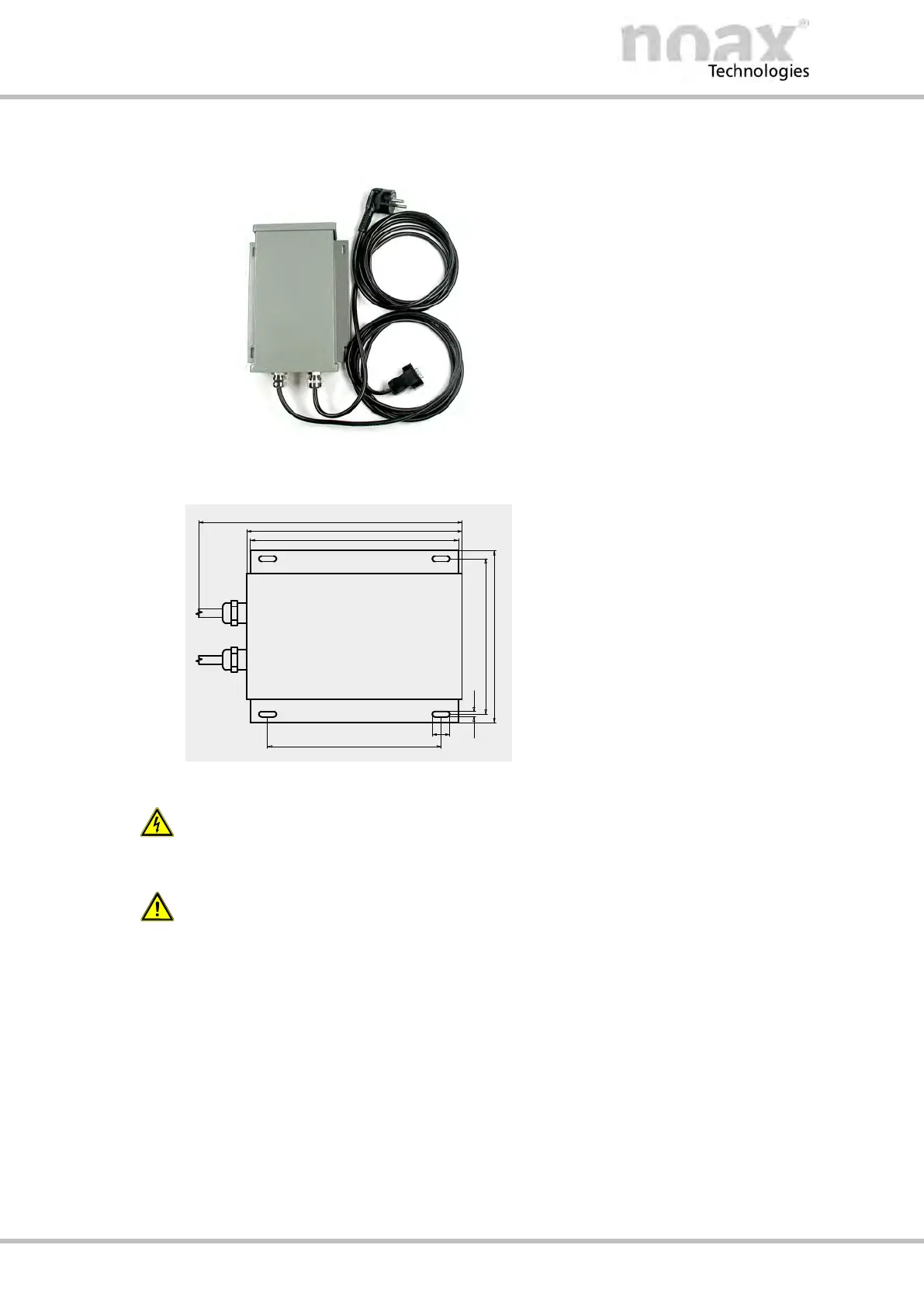

Fig. 6: External power supply IP65 (NEMA 4)
1 9 8
1 7 4
1 4 5
1 3 0
1 4. 5
4 . 5
M i n . 2 2 0
1 4 4
To install the external power supply, copy
the drilling spacing shown in the drawing
onto the surface onto which you intend to
mount the equipment.
Fig. 7: Dimensional drawing (all dimensions in mm)
Danger
Do not open the external power supply housing!
It does not contain any serviceable parts.
Warning
Only operate the power supply within the scope of its technical specifications!
(See Chapter 15.4.2.)
