8.5
Industrial PC Compact - C12 and C12P
Various device and wall brackets which can be attached to the rear T‐slots are available
as options for this housing type. The variable height adjustment (slot) and the design of
the brackets offer a wide variety of installation options in different positions.
Warning
Make sure that the device brackets are attached stable and secure.
8.5.1 Industrial PC Compact - C12

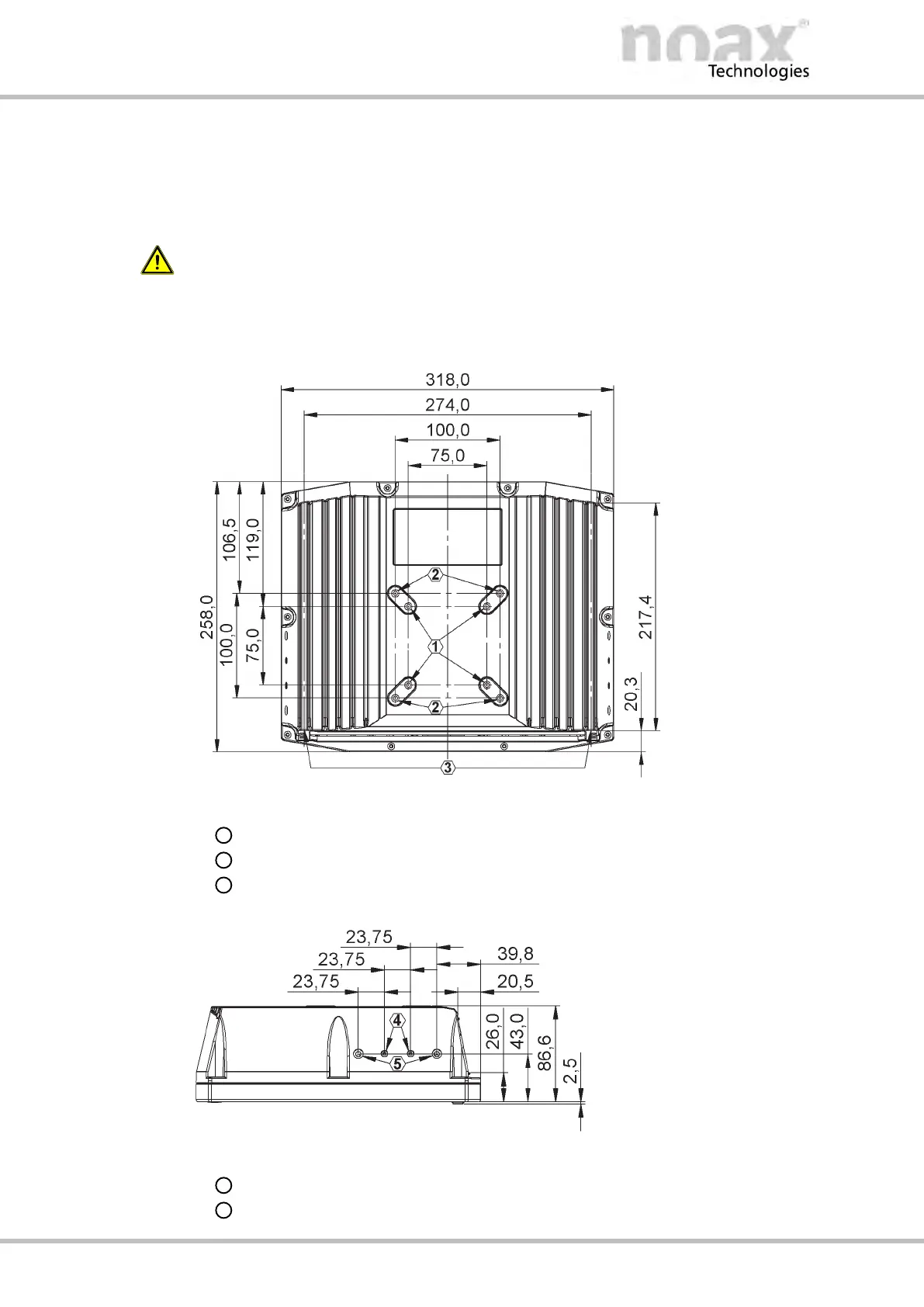

Fig. 8: Rear panel C12 (all dimensions in mm)
VESA 100 mounting option with M5 thread (depth 7.5 mm / 0.3 inches)
VESA 75 mounting option with M5 thread (depth 7.5 mm / 0.3 inches)
2x T‐slot as per DIN 508
Fig. 9: Side view C12 (all dimensions in mm)
Side mounting option for accessories – M3 thread (depth 5.5 mm / 0.22 inches)
Side mounting option for accessories – M6 thread (depth 11.0mm / 0.43 inches)
1
2
3
4
5
