User Manual N11
Installation
Industrial PC
3085-US-2.4 www.noax.com Page 43 of 120
8.10 Industrial PC Steel - S15P, S15R, S19P, S19R,
S21WP and S21WR
Device and wall brackets which are attached to the rear VESA 100 mounting option
are available as options for this housing type.
Screws must not be screwed into the M6 threads by more than
0.28 inches / 7.0 mm.
W
arning
Make sure that the device brackets are attached stable and secure.
8.10.1 Industrial PC Steel - S15P and S15R

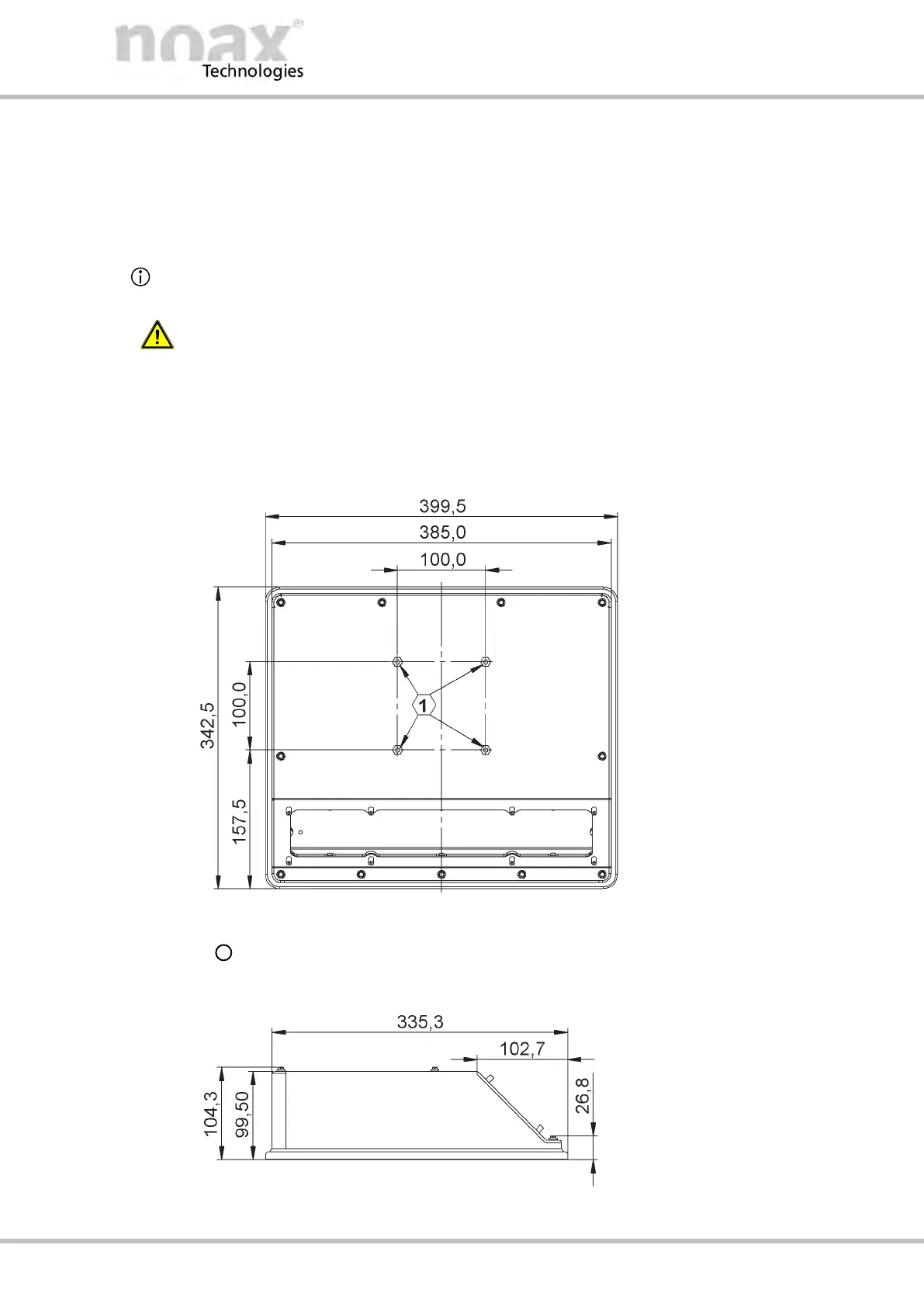

Fig. 30: Rear panel S15P (all dimensions in mm)
VESA 100 mounting option with M6 thread (depth 7.0 mm / 0.28 inches)
Fig. 31: Side view S15P (all dimensions in mm)
