noax N11 - Steel S19 P and S19 R Mounting Details

To Next Page

To Previous Page

User Manual N11

Installation

Industrial PC

www.noax.comPage 44 of 120 3085-US-2.4

8.10.2

Industrial PC Steel - S19P and S19R

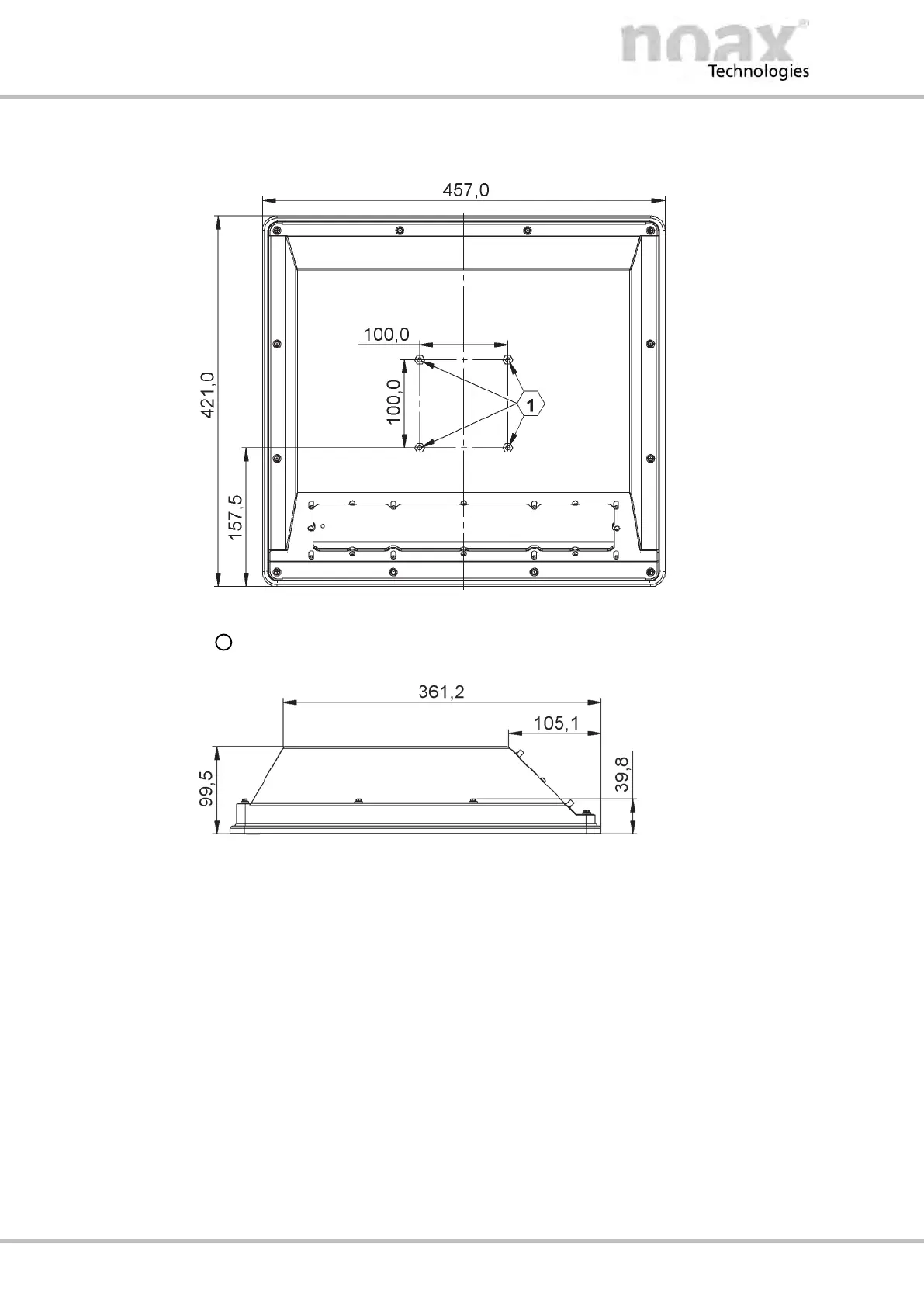

Fig. 32: Rear panel S19P (all dimensions in mm)

VESA 100 mounting option with M6 thread (depth 7.0 mm / 0.28 inches)

Fig. 33: Side view S19P (all dimensions in mm)
