8.10.3 Industrial PC Steel - S21WP and S21WR

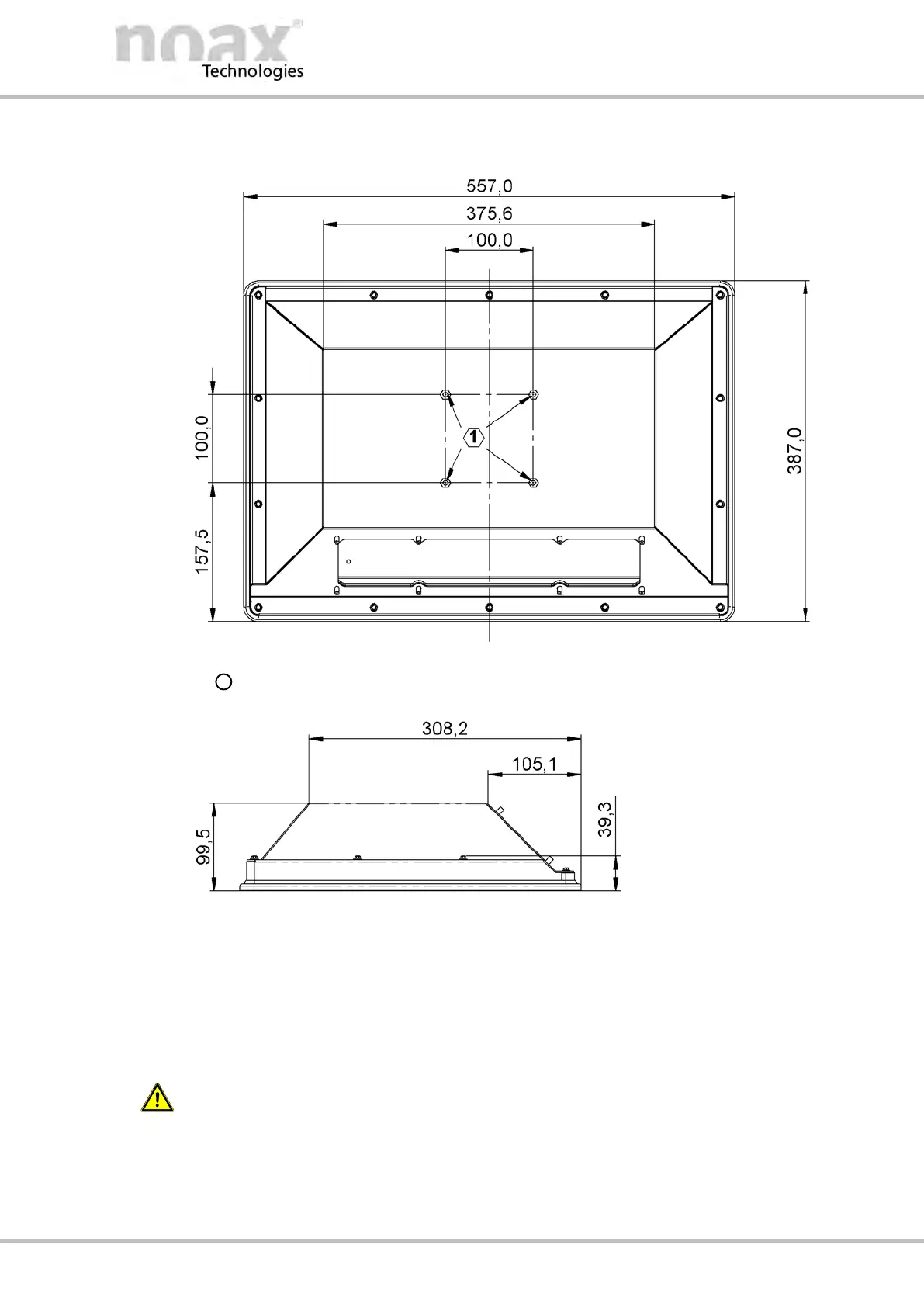

Fig. 34: Rear panel S21WP (all dimensions in mm)
VESA 100 mounting option with M6 thread (depth 7.0 mm / 0.28 inches)
Fig. 35: Side view S21WP (all dimensions in mm)
8.10.4 VESA 100 mounting option
There are four threaded holes in the rear side of the Industrial PC as per
“VESA (FDMI™) standard” - variant VESA MIS‐D, 100, C.
(100 mm / 3.9 inches distance in a square, M6 thread, depth 7.0 mm / 0.28 inches)
In condition of delivery mounted screws only protect the threaded holes.
These screws are not suitable for mounting the device.
