PAGE 24 1010/2020 INSTALLATION AND PROGRAMMING MANUAL

TERMINATING THE LOOP AND DEVICES ON THE LOOP

PLEASE NOTE:

The following examples are the actual wiring terminations for the devices, the example for wiring

Conventional Circuits (MMX-2’s) only applies to Version 3.0 release, and shouldn’t be used for

previous release software. Please contact support staff for additional information.

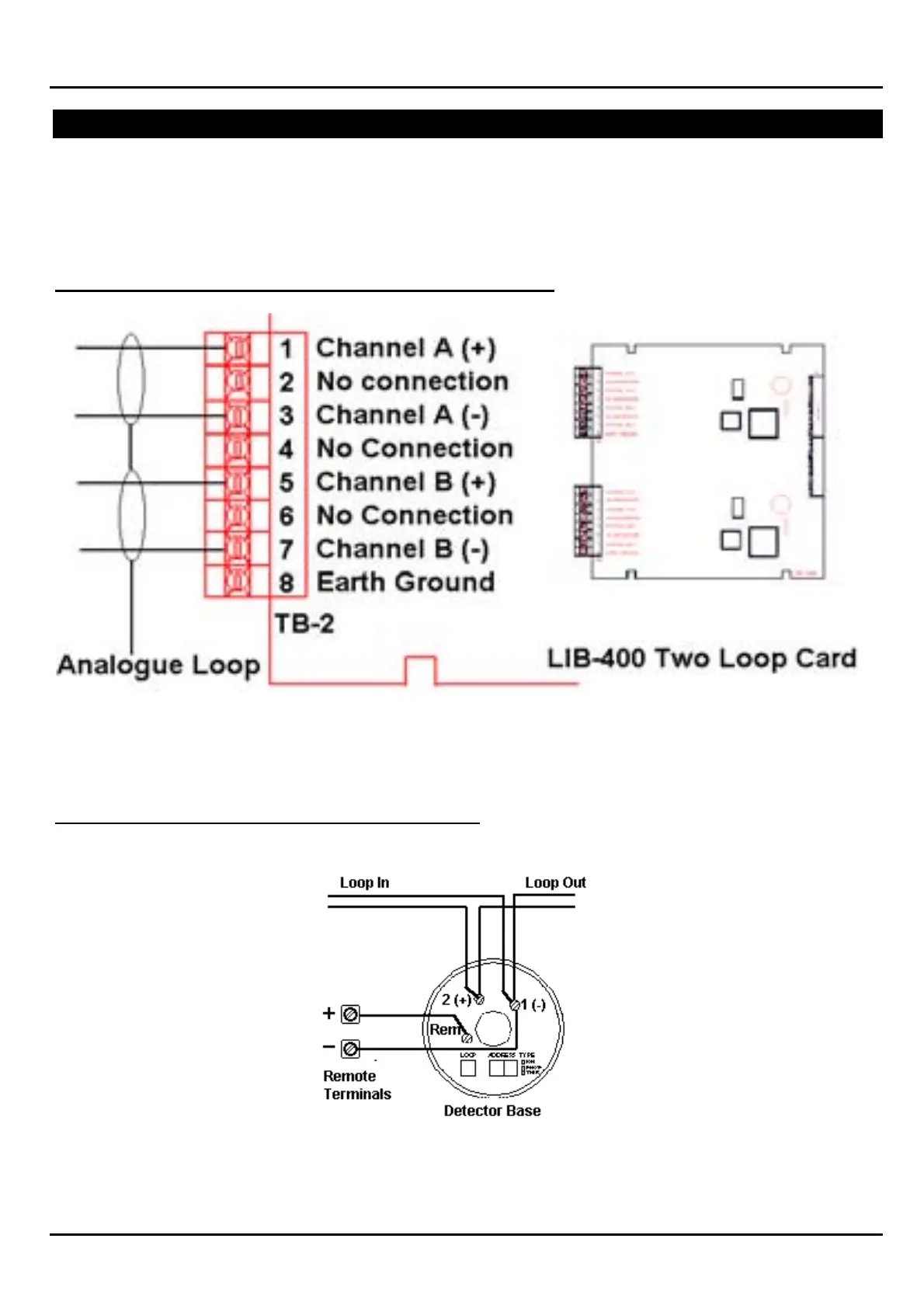

TERMINATING THE ANALOGUE LOOP TO THE LIB CARDS

Note:

Terminal 8 should be connected straight to the nearest earth point on the Chassis.

If optional shielding is used, do not terminate to terminal 8, connect the shield straight to the nearest

Earth point

WIRING ANALOGUE ADDRESSABLE DETECTORS

Note:

If optional shield used, do not connect to the spare terminal on the detector base, join the shield and

insulate it from the other cables.
