1010/2020 INSTALLATION AND PROGRAMMING MANUAL PAGE 25
COPYRIGHT © 2000, NOTIFIER INERTIA PTY LTD

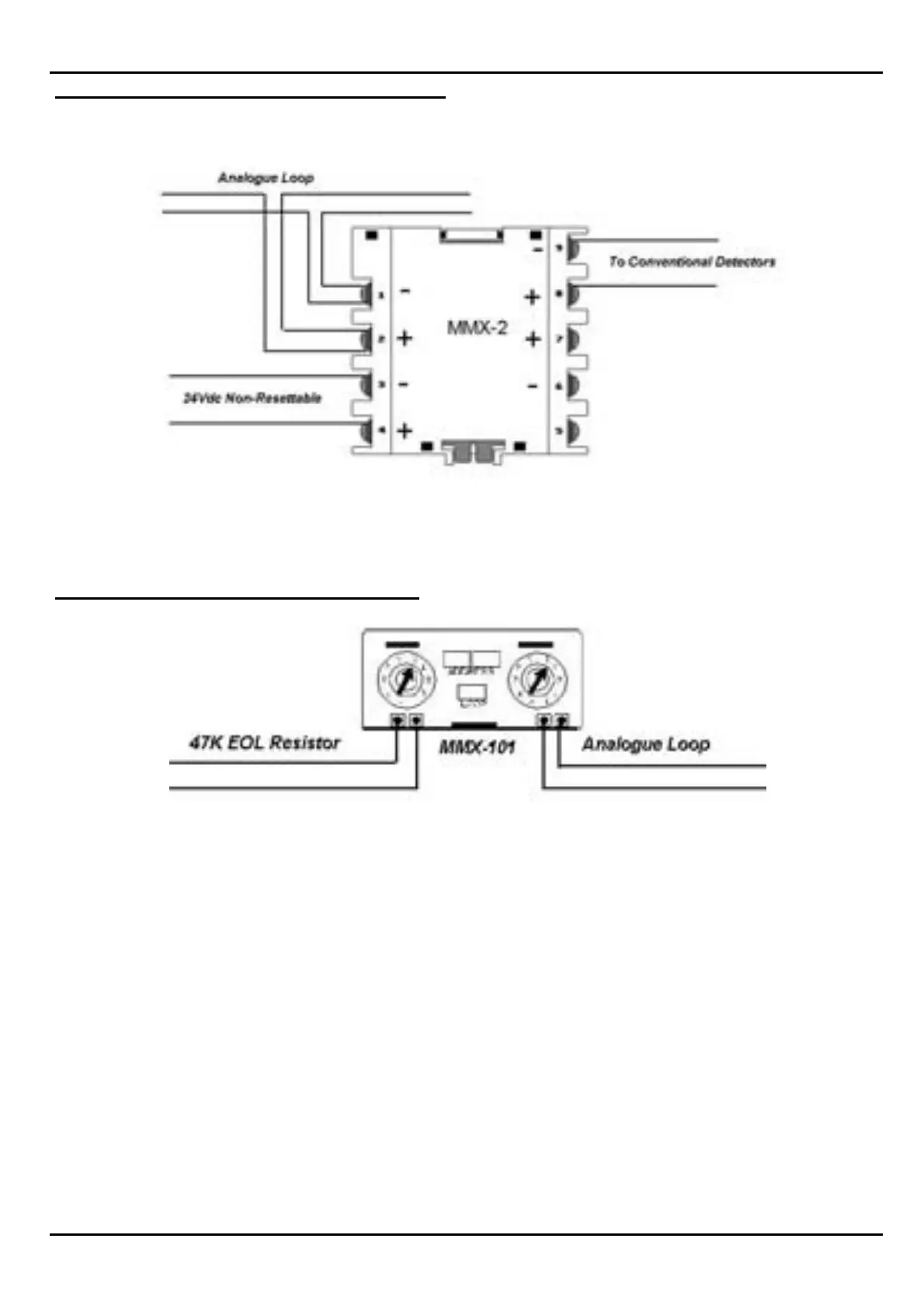

WIRING CONVENTIONAL CIRCUITS (MMX-2)
The MMX-2 when used with Version 3 Release Software, utilises the 24Vdc Non-Resettable power
supply, thereby negating the need for Resettable power in the field.
Note:
If optional shield used do not terminate to this device, the shield must be continuous.
WIRING MONITOR MODULES (MMX-101)
This Module is a single input device, and can be used for Flow switch, Tamper Switch, sprinkler
pressure switch, and pump run/stop, and Tank Hi/Low monitoring.
