44 AFC-600 Operations PN 51033:A 3/8/99
+RZ WR 5HDG 6WDWXV IRU
6
\
VWHP )XQFWLRQV
The System Functions screen specifies global settings for the control panel. From the
Read Status screen, press
0
, then press the
ENTER
key. You can now view Read Status
for System Functions as follows: press
Z
, enter
S0
, press the
ENTER
key.

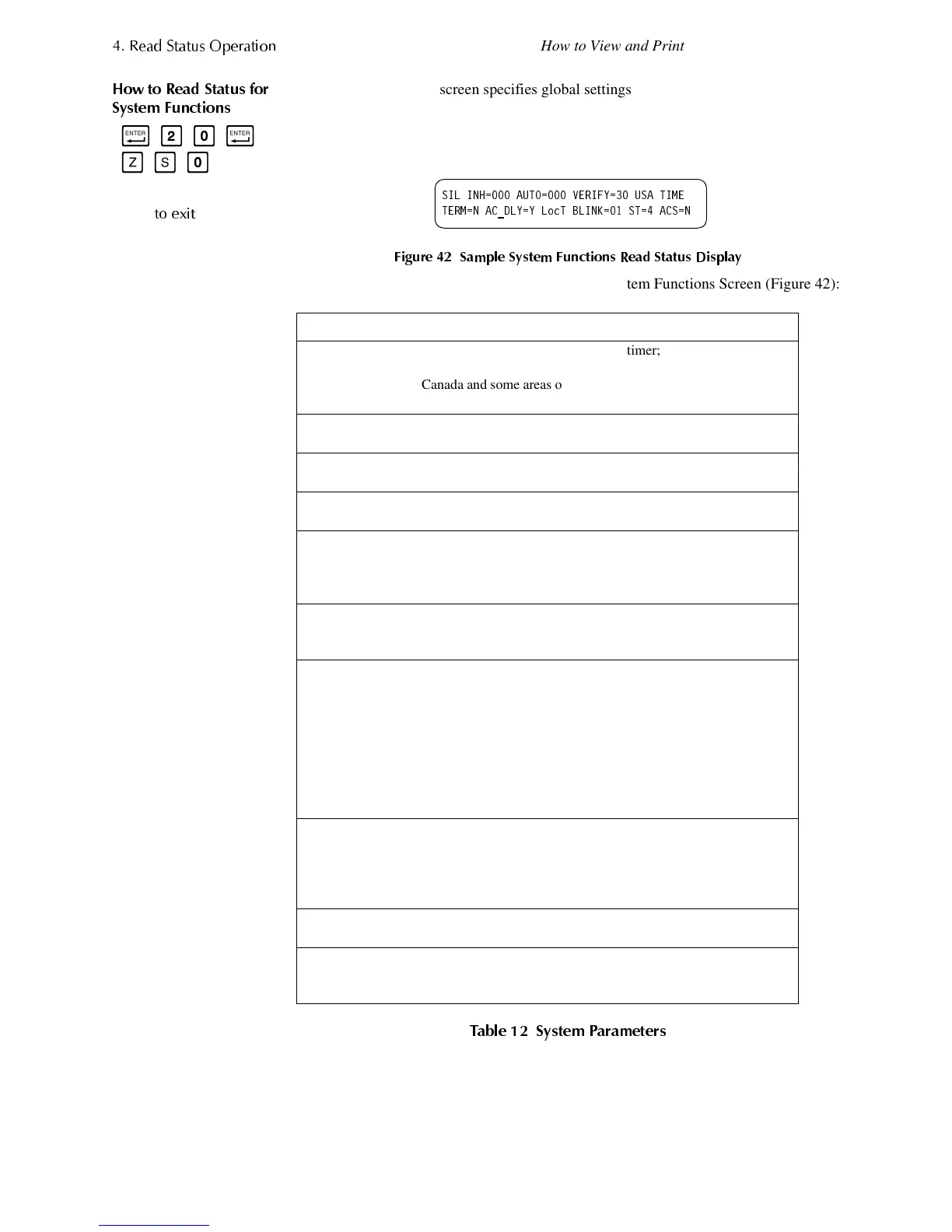

Figure 42 shows a sample LCD display for the Read Status of System Functions:
)LJXUH  6DPSOH 6\VWHP )XQFWLRQV 5HDG 6WDWXV 'LVSOD\
Table 12 contains descriptions of the items in the System Functions Screen (Figure 42):
7DEOH  6
\
VWHP 3DUDPHWHUV
&



&
]

V


&
)

WR H[LW
Parameter Description Set to
SIL INH=060 Silence Inhibit timer in
seconds. Required in
Canada and some areas of
the USA.
0 – no timer; or the timer duration
in seconds.
AUTO=600 Auto Silence Timer in
seconds.
0 – no timer; or the timer duration
in seconds.
VERIFY=30 Alarm Verification Timer 0 – no timer; or the timer duration
in seconds.
USA TIME Time and date display
format
USA TIME or EUR TIME
TERM=Y Terminal supervision YES – To supervise the wiring of a
terminal mode LCD-80.
NO – No Terminal mode LCD-80
supervision.
AC_DLY=Y Delays AC loss reporting YES - AC loss reporting is delayed
for approximately 8 hours.
NO - No AC loss delay.
LocT One of three operating
modes of a PC or terminal
connected to the control
panel (through TB2 PC/
Terminal)
LocT – terminal connected to
control panel and located in the
same room as the control panel.
LocM – terminal connected to
control panel but requires password
for operation.
RemT – terminal connected
through a modem for Read Status
operations only.
BLINK=01 The rate at which
intelligent devices blink
during polling
BLINK=00: No blink
BLINK=01: Devices blink on
every poll.
BLINK=16: Devices blink every
16th poll.
ST=4 NFPA wiring style
operation for the SLC
4 – Style 4 SLC or
6 – both Style 6 and Style 7 SLC
ACS=N Use ACS Selection
Groups
N – No annunciator selected or
Y – Select and display ACS
Selection Groups
6,/ ,1+  $872  9(5,)<  86$ 7,0(
7(50 1 $&
B
'/< < /RF7 %/,1.  67  $&6 1
