AMG-1 and AMG-E Audio Message Generator
 9RLFH $ODUP 6
\
VWHPV
AFC-600 Operations PN 51033:A 3/8/99 55
+RZWR2
S
HUDWHWKH$0*

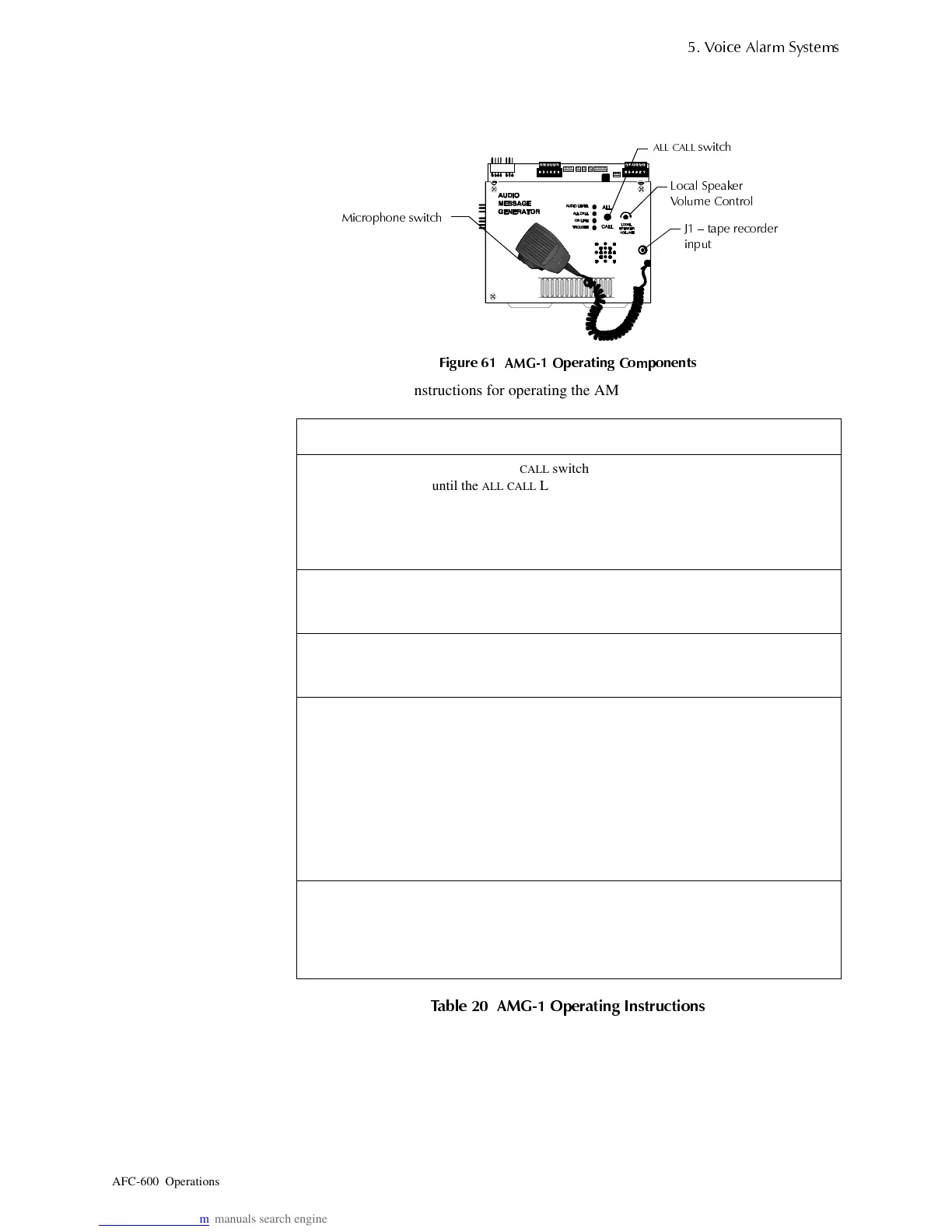

Figure 61 shows the AMG-1 operating controls:
)LJXUH  $0* 2SHUDWLQJ &RPSRQHQWV
Table 20 contains instructions for operating the AMG-1.
7DEOH  $0* 2
S
HUDWLQ
J
,QVWUXFWLRQV
To Do this Comments
Turn on speakers Toggle the
ALL
CALL
switch
until the
ALL
CALL
LED goes
on.
The
ALL
CALL
switch activates all
speaker circuits (that are not switch
inhibited) or a specific programmed
group of speakers. For dual-channel
applications, press the
ALL
CALL
switch on either AMG.
Turn off speakers Toggle the
ALL
CALL
switch
until the
ALL
CALL
LED goes
off.
If an alarm exists, speaker circuits
remain on until you turn them off or
reset the system.
Adjust the volume
of the AMG-1
speaker
Turn the
LOCAL
SPEAKER
VOLUME
CONTROL
knob.
If necessary, turn the volume down
to prevent feedback during paging.
Page through the
system
1. Press the
ALL
CALL
switch.
2. Press the switch on the
side of microphone.
3. Speak into the
microphone.
Talk loudly enough to cause the
green
AUDIO
LEVEL
LED to light.If
the
AUDIO
LEVEL
LED remains off
for 15 seconds, a system trouble can
result and a default tone is generated
by the AMG the
AUDIO
LEVEL
LED
is lighted by the proper volume of
sound at the microphone or until the
ALL
CALL
LED is turned off by the
button on the AMG-1.
Select the speaker
circuit for paging
Select the control switches on
the respective ACM
annunciator points or the
VCM-4 module connected to
the AMG-1.
Refer to the AFC-600 Installation
and Programming Manuals for
instructions.
$// &$//
VZLWFK
0LFUR
S
KRQH VZLWFK
- ² WD
S
H UHFRUGHU
LQ
S
XW
/RFDO 6
S
HDNHU
9ROXPH &RQWURO
