How to View and Print Read Status Information
46 AFC-600 Operations PN 51033:A 3/8/99

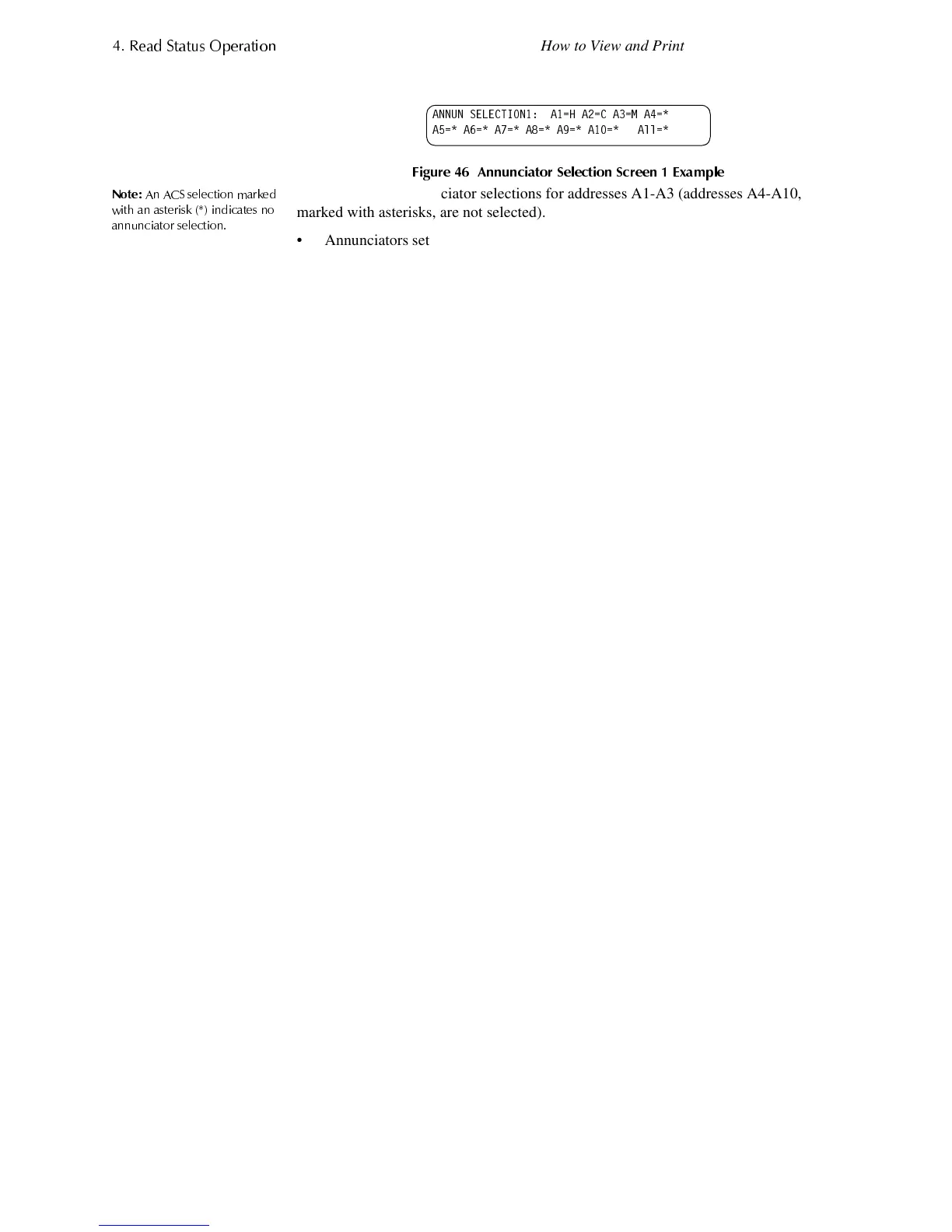

Figure 46 shows an example of ACS selections in Annunciator Selection Screen 1:
)LJXUH $QQXQFLDWRU 6HOHFWLRQ 6FUHHQ ([DPSOH
1RWH
$Q $&6 VHOHFWLRQ PDUNHG
ZLWK DQ DVWHULVN LQGLFDWHV QR
DQQXQFLDWRU VHOHFWLRQ
Figure 46 shows annunciator selections for addresses A1-A3 (addresses A4-A10,
marked with asterisks, are not selected).
• Annunciators set to annunciator address 1 (A1) display the status of detectors 1-64
on SLC 1 (ACS Selection Group H)
• Annunciators set to annunciator address 2 (A2) display the status of intelligent
modules 1-64 on SLC-1 (ACS Selection Group C)
• Annunciators set to annunciator address 3 (A3) display the status of the panel
modules (ACS Selection Group M)
$1181 6(/(&7,21 $ + $ & $ 0 $
$ $ $ $ $ $ $OO
