Oceanic ATOM 2.0 User Manual

122

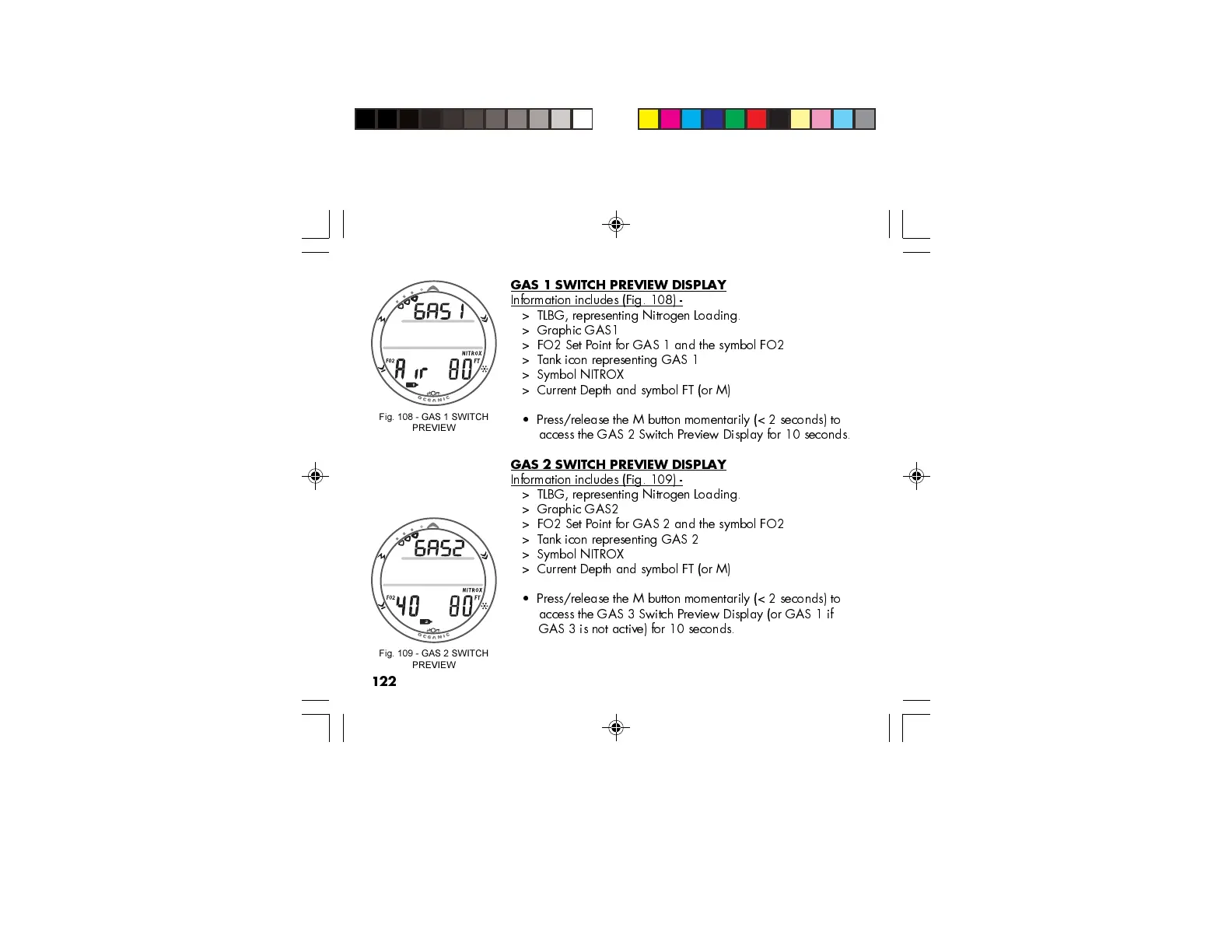

GAS 1 SWITCH PREVIEW DISPLAY
Information includes (Fig. 108) -
> TLBG, representing Nitrogen Loading.
> Graphic GAS1
> FO2 Set Point for GAS 1 and the symbol FO2
> Tank icon representing GAS 1
> Symbol NITROX
> Current Depth and symbol FT (or M)
 Press/release the M button momentarily (< 2 seconds) to
access the GAS 2 Switch Preview Display for 10 seconds.
GAS 2 SWITCH PREVIEW DISPLAY
Information includes (Fig. 109) -
> TLBG, representing Nitrogen Loading.
> Graphic GAS2
> FO2 Set Point for GAS 2 and the symbol FO2
> Tank icon representing GAS 2
> Symbol NITROX
> Current Depth and symbol FT (or M)
 Press/release the M button momentarily (< 2 seconds) to
access the GAS 3 Switch Preview Display (or GAS 1 if
GAS 3 is not active) for 10 seconds.
Fig. 108 - GAS 1 SWITCH
PREVIEW
Fig. 109 - GAS 2 SWITCH
PREVIEW
