TRANSMITTER STATUS
, information includes:
> Graphics TMT1 (then TMT2 and TMT3), identifying the
reporting Transmitter, and bAt.
> Graphic Good or Lo, or NotAvAil (Fig. 38A/38B)
> Battery icon, if a Low Battery Warning Condition exists.
Flashing if an Alarm Condition exists.
> Link icon and Tank Pressure for the TMT reporting and
symbol PSI (or BAR).
NOTE: If TMT 2-3 USE is set for BUD (Buddy
Pressure Checks), TMT2 and TMT3 screens will
not display Battery Status (only Pressure).
NORM SURF SECONDARY
, information includes (Fig. 39):
> Day of the Week graphic (SAT, SUN, MON, TUE, WED,
THU, FRI).
> Temperature with degree icon and graphic F (or C)
> T ime of Day (hour: minute), seconds (:xx) on middle row.
After 5 seconds, the NORM SURF ALTERNATE screen will
appear .
Pressing and releasing the A button momentarily (< 2
seconds) will revert to the NORM SURF MAIN screen.
Pressing the L button will activate the Backlight.

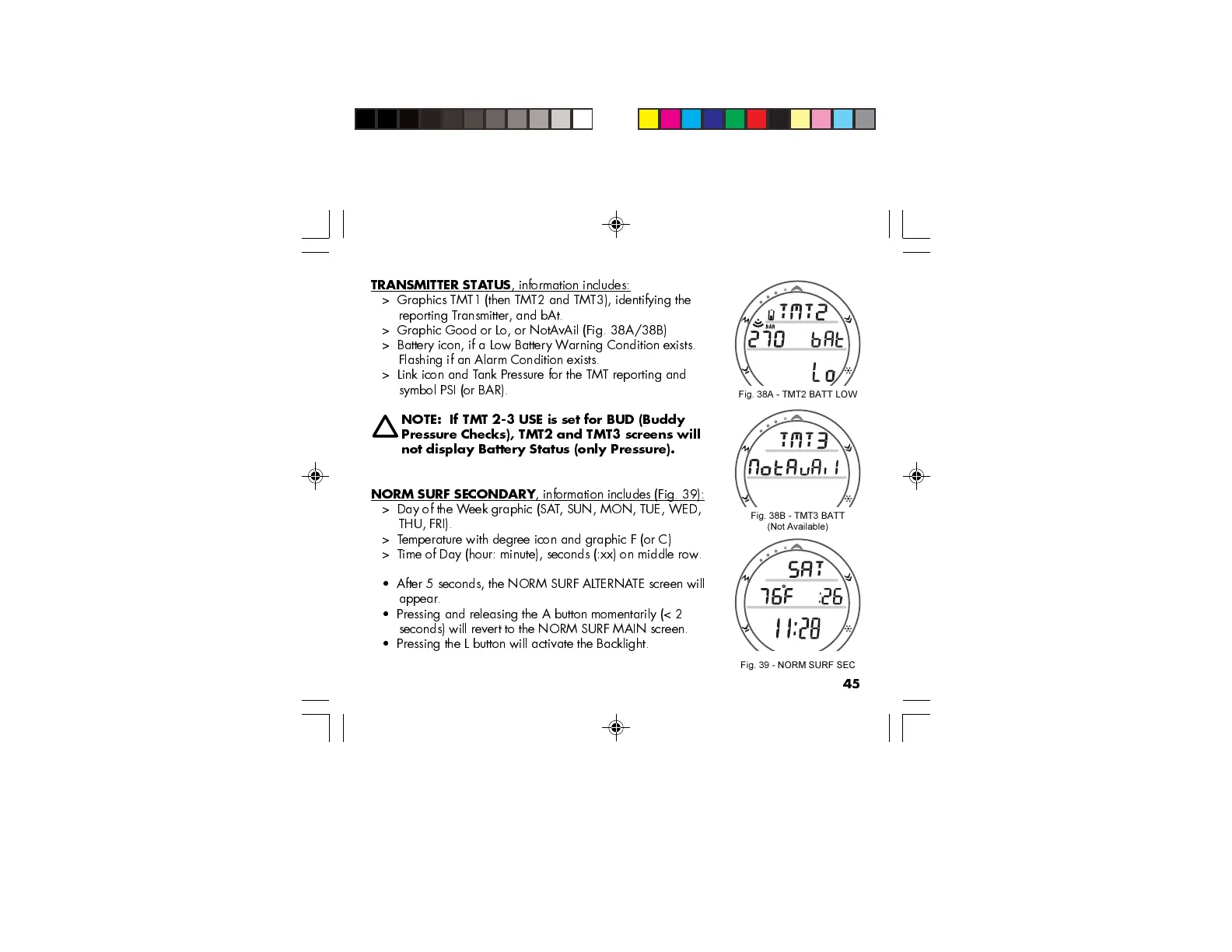

Fig. 38A - TMT2 BATT LOW
Fig. 38B - TMT3 BATT
(Not Available)
Fig. 39 - NORM SURF SEC
