134

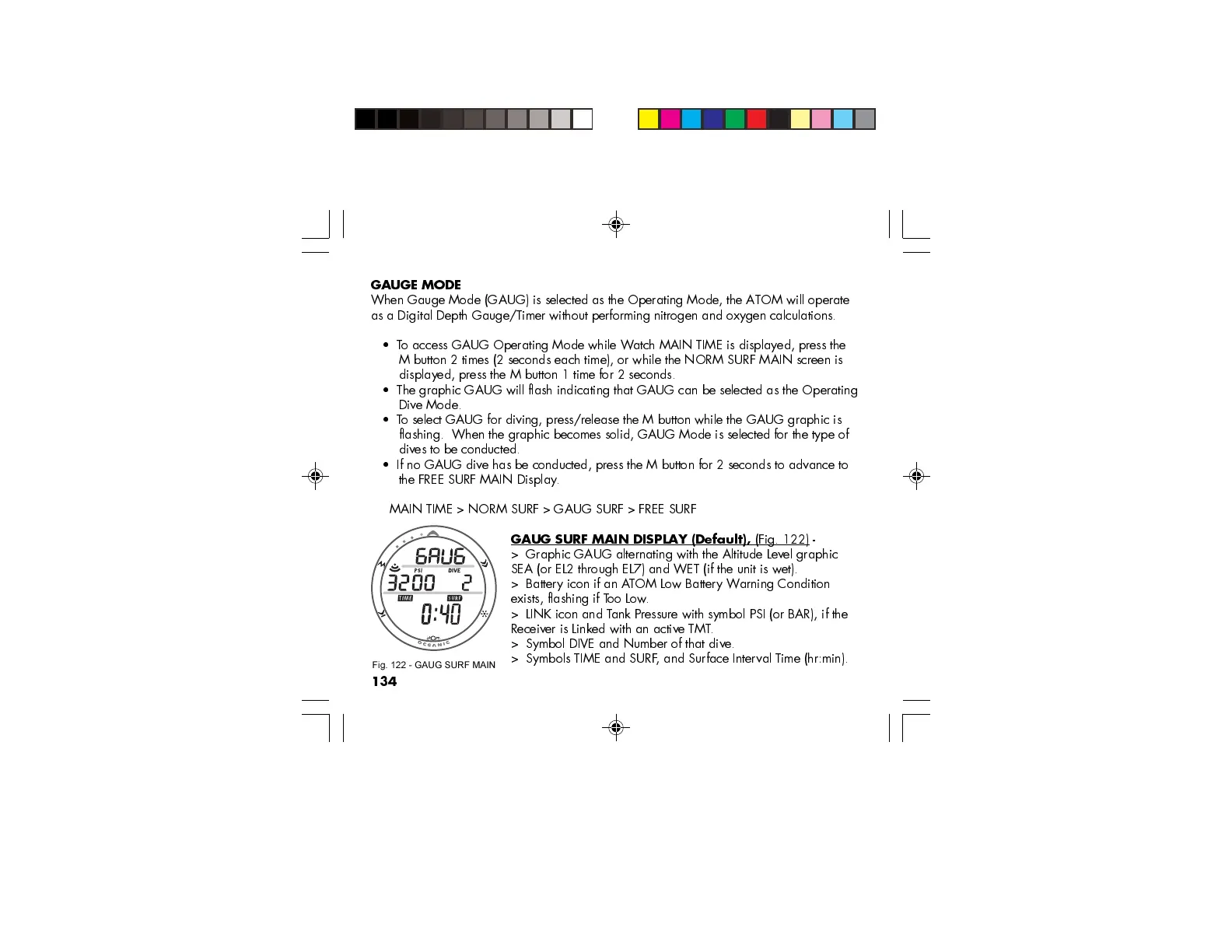

GAUGE MODE
When Gauge Mode (GAUG) is selected as the Operating Mode, the ATOM will operate
as a Digital Depth Gauge/Timer without performing nitrogen and oxygen calculations.
To access GAUG Operating Mode while Watch MAIN TIME is displayed, press the
M button 2 times (2 seconds each time), or while the NORM SURF MAIN screen is
displayed, press the M button 1 time for 2 seconds.
The graphic GAUG will flash indicating that GAUG can be selected as the Operating
Dive Mode.
To select GAUG for diving, press/release the M button while the GAUG graphic is
flashing. When the graphic becomes solid, GAUG Mode is selected for the type of
dives to be conducted.
If no GAUG dive has be conducted, press the M button for 2 seconds to advance to
the FREE SURF MAIN Display .
MAIN TIME > NORM SURF > GAUG SURF > FREE SURF
GAUG SURF MAIN DISPLAY (Default),
(Fig. 122) -
> Graphic GAUG alternating with the Altitude Level graphic
SEA (or EL2 through EL7) and WET (if the unit is wet).
> Battery icon if an ATOM Low Battery Warning Condition
exists, flashing if Too Low.
> LINK icon and Tank Pressure with symbol PSI (or BAR), if the
Receiver is Linked with an active TMT.
> Symbol DIVE and Number of that dive.
> Symbols TIME and SURF, and Surface Interval Time (hr:min).
Fig. 122 - GAUG SURF MAIN
