44

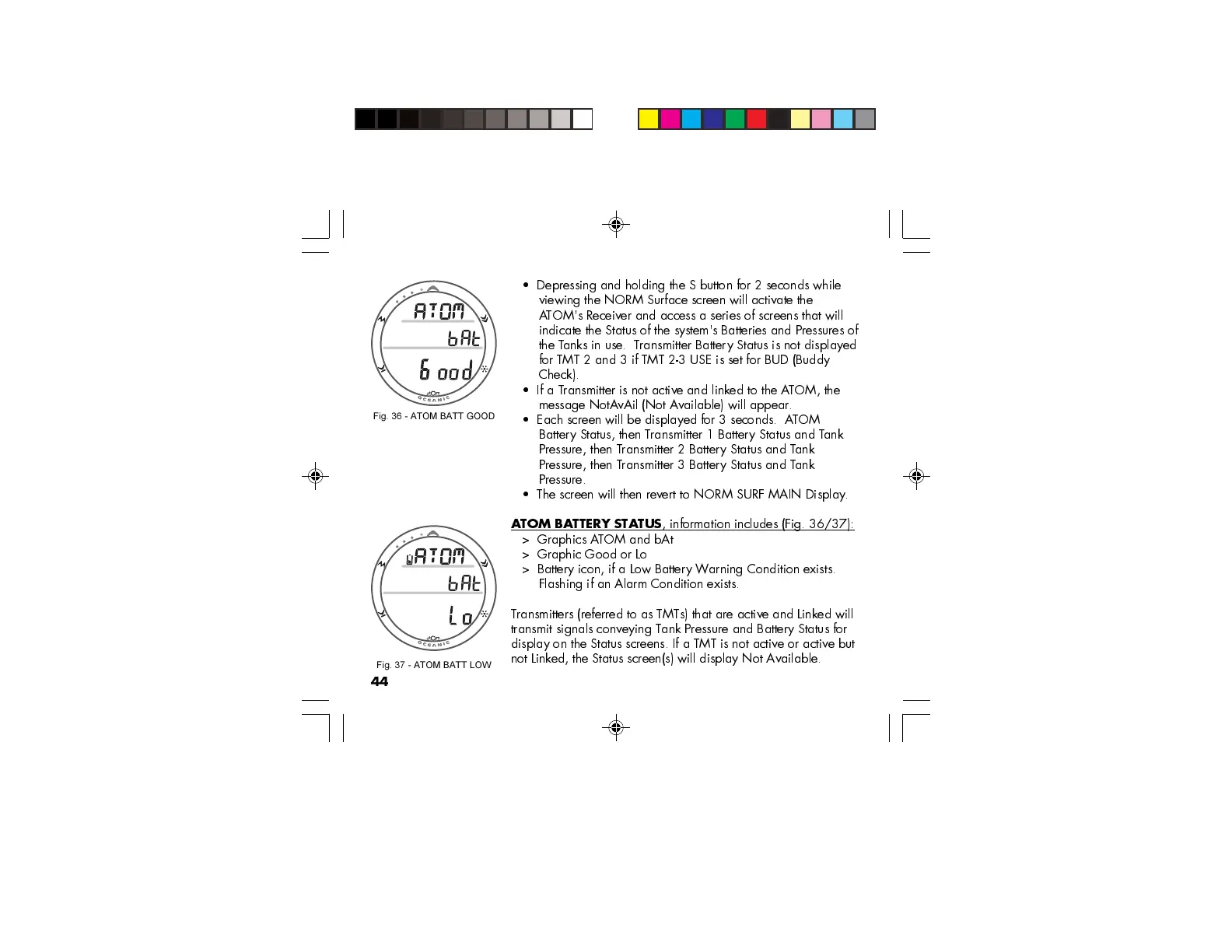

Depressing and holding the S button for 2 seconds while
viewing the NORM Surface screen will activate the
ATOM's Receiver and access a series of screens that will
indicate the Status of the system's Batteries and Pressures of
the Tanks in use. T ransmitter Battery Status is not displayed
for TMT 2 and 3 if TMT 2-3 USE is set for BUD (Buddy
Check).
If a T ransmitter is not active and linked to the ATOM, the
message NotA vAil (Not A vailable) will appear.
Each screen will be displayed for 3 seconds. ATOM
Battery Status, then T ransmitter 1 Battery Status and Tank
Pressure, then T ransmitter 2 Battery Status and Tank
Pressure, then T ransmitter 3 Battery Status and Tank
Pressure.
The screen will then revert to NORM SURF MAIN Display .
ATOM BATTERY STATUS
, information includes (Fig. 36/37):
> Graphics ATOM and bAt
> Graphic Good or Lo
> Battery icon, if a Low Battery Warning Condition exists.
Flashing if an Alarm Condition exists.
Transmitters (referred to as TMTs) that are active and Linked will
transmit signals conveying Tank Pressure and Battery Status for
display on the Status screens. If a TMT is not active or active but
not Linked, the Status screen(s) will display Not Available.
Fig. 36 - ATOM BATT GOOD
Fig. 37 - ATOM BATT LOW
