GAS 3 SWITCH PREVIEW DISPLAY
Information includes (Fig. 111) -
> TLBG, representing Nitrogen Loading.
> Graphic GAS3
> FO2 Set Point for GAS 3 and the symbol FO2
> Tank icon representing GAS 3
> Symbol NITROX
> Current Depth and symbol FT (or M)
 Press/release the M button momentarily (< 2 seconds) to
access the GAS 1 Switch Preview Display for 10 seconds.
TO SWITCH FO2 FROM GAS 2 TO GAS 3
 Depressing the M button for 2 seconds while viewing the
GAS 3 Switch Preview Display will manually Switch the
ATOM's FO2 from GAS 2 to GAS 3 and the ATOM's
Receiver from TMT 2 to TMT 3 (if active).
 When the Switch is made, the NORM MAIN DIVE Display
will represent FO2 GAS 3 and display the Pressure of Tank
3 (if active). Air Time Remaining is then calculated based
on TMT 3.
 A Switch Back to FO2 GAS 2 can be performed, as
previously described for switching GAS 2 Back to GAS 1.

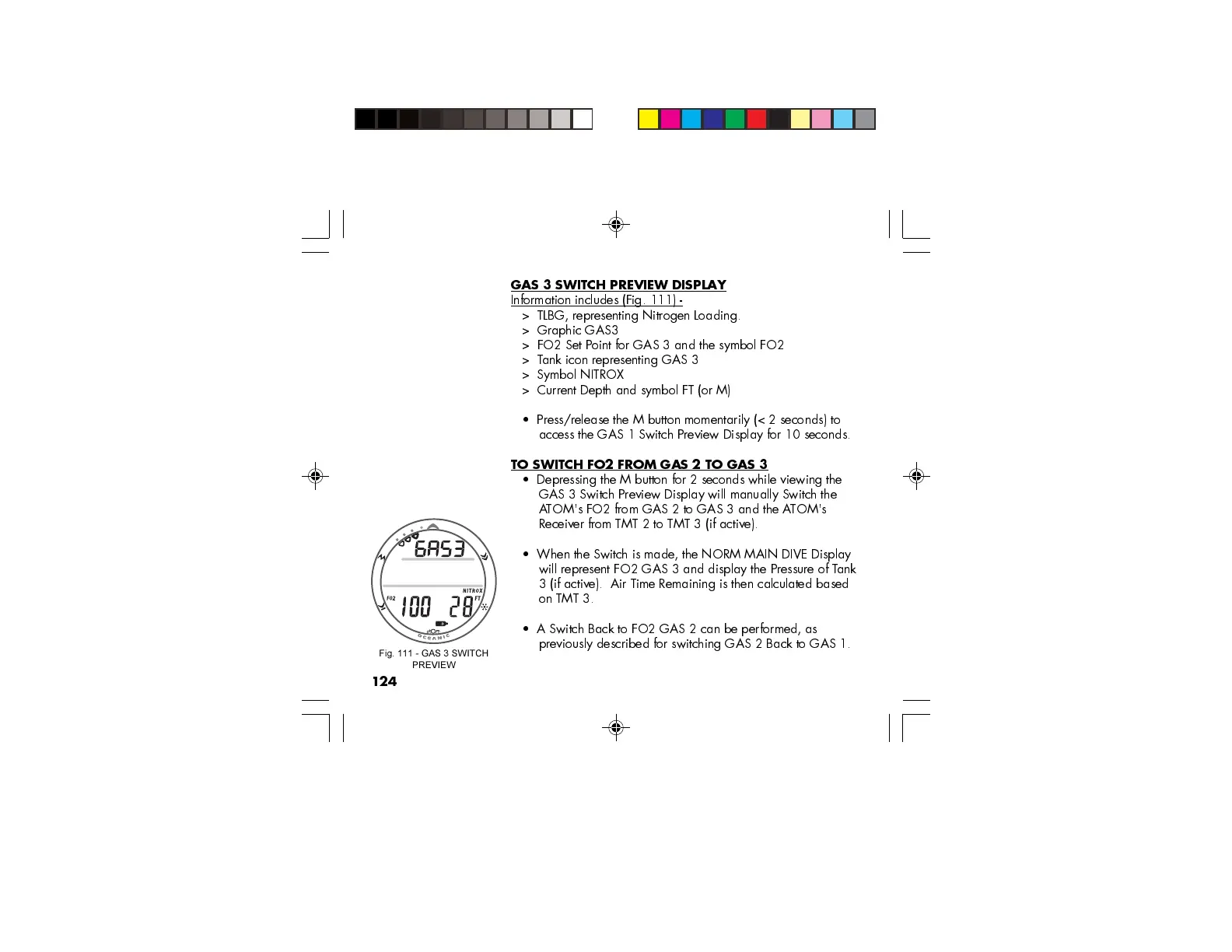

Fig. 111 - GAS 3 SWITCH
PREVIEW
