127

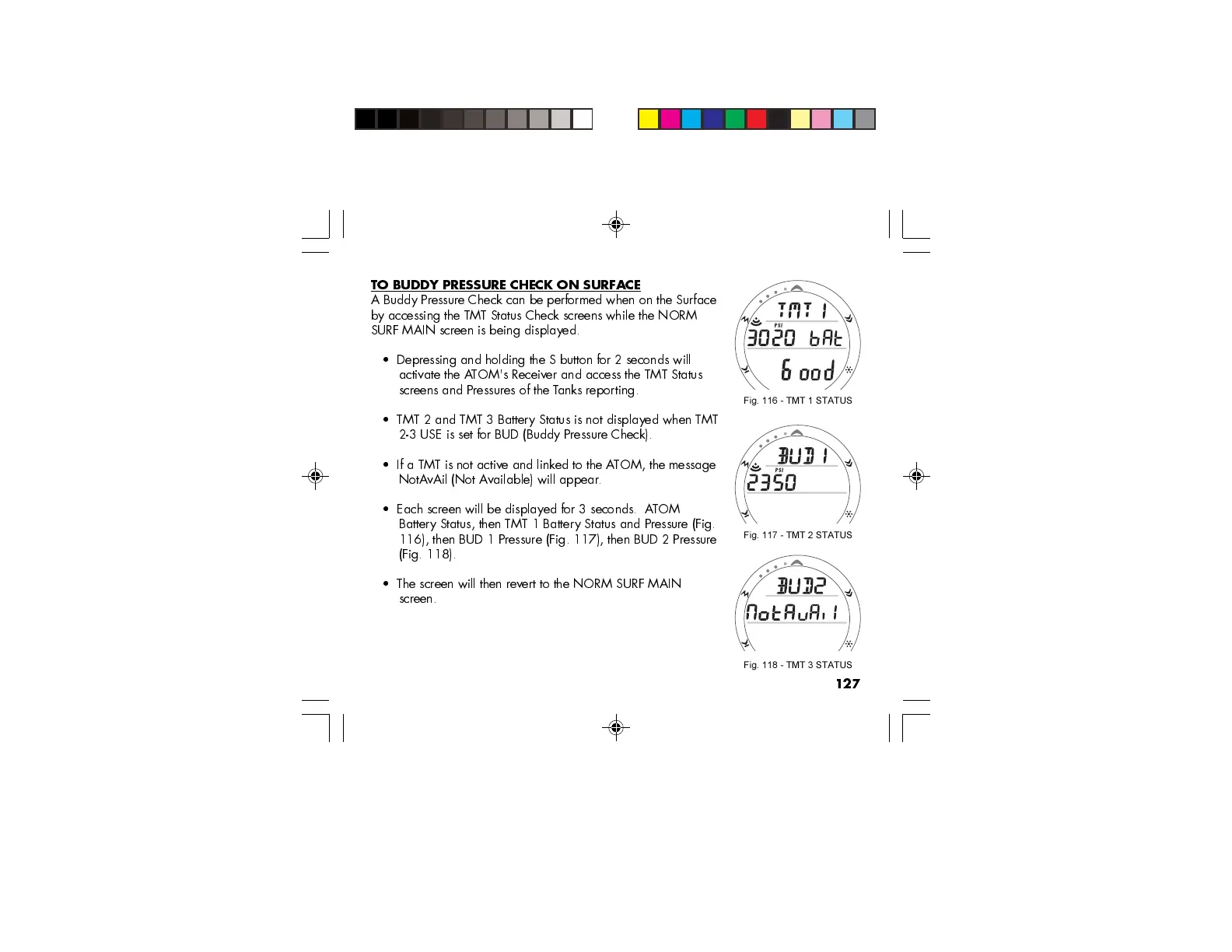

TO BUDDY PRESSURE CHECK ON SURFACE
A Buddy Pressure Check can be performed when on the Surface
by accessing the TMT Status Check screens while the NORM
SURF MAIN screen is being displayed.
Depressing and holding the S button for 2 seconds will
activate the ATOM's Receiver and access the TMT Status
screens and Pressures of the Tanks reporting.
TMT 2 and TMT 3 Battery Status is not displayed when TMT
2-3 USE is set for BUD (Buddy Pressure Check).
If a TMT is not active and linked to the ATOM, the message
NotA vAil (Not Available) will appear.
Each screen will be displayed for 3 seconds. ATOM
Battery Status, then TMT 1 Battery Status and Pressure (Fig.
116), then BUD 1 Pressure (Fig. 117), then BUD 2 Pressure
(Fig. 118).
The screen will then revert to the NORM SURF MAIN
screen.
Fig. 116 - TMT 1 STATUS
Fig. 117 - TMT 2 STATUS
Fig. 118 - TMT 3 STATUS
