136
Press/release the A button to access the GAUG AL T display .
Press/hold the A button for 2 seconds to view the common
Secondary screen (Temperature and Time of Day) for 5
seconds.
Press/release the S button acknowledge/silence Alarms.
Press the L button to activate the Backlight.
GAUG DIVE ALT DISPLAY,
information provided includes (Fig. 124) -
> Graphic TMT1, Link icon, and Tank Pressure with the PSI (or
BAR) icon, if TMT 1 is active and linked
> Elapsed Dive T ime (hr:min) with symbols DIVE and TIME
> Air T ime Remaining (hr:min) with symbols AIR and TIME
> Max Depth with icons FT (or M) and MAX
The display will revert to the GAUG DIVE MAIN screen
after 5 seconds.

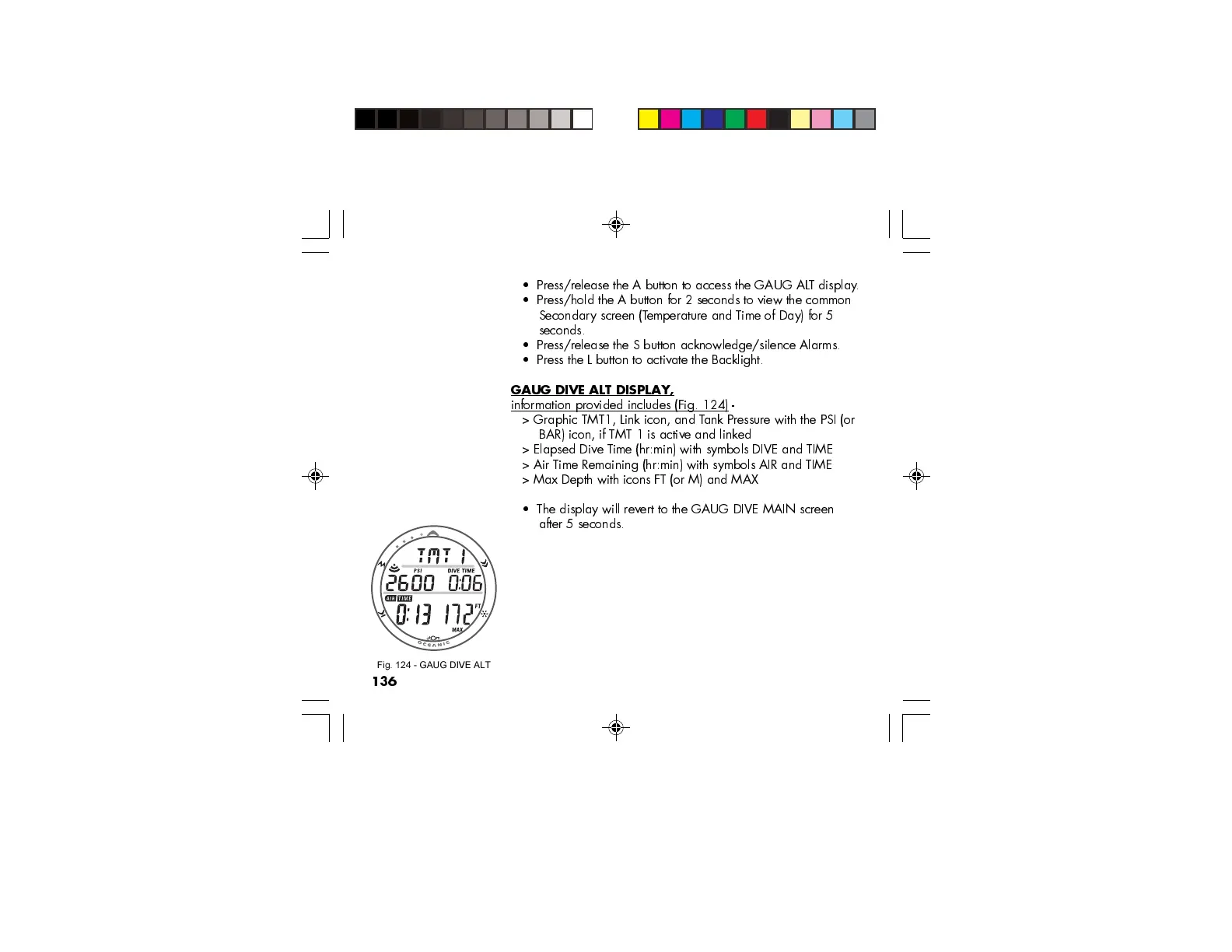

Fig. 124 - GAUG DIVE ALT
