SET FREE DEPTH ALARM 1 (FDA1) DISPLAY,
information includes (Fig. 132) -
> Graphic FDA1.
> Set Point ON or OFF, flashing.
> Depth Set Point graphic value, flashing if ON is displayed.
> Symbols MAX and FT (or M).
Pressing and releasing the S button momentarily (< 2
seconds) will toggle the Set Point between ON and OFF.
If set ON, the Depth value displayed will flash.
> Pressing and releasing the S button momentarily and
repeatedly (< 2 sec each time) will step through the Set
Points from 30 to 330 FT (10 to 100 M) in increments of
10 FT (1 M) at a rate of 1 Set Point per press of the button.
> Pressing and holding the S button will scroll through the Set
Points at a rate of 4 Set Points per second until released.
> Pressing the A button momentarily (< 2 sec) will accept the
Depth Setting and advance to SET FREE DEPTH ALARM 2.
If set OFF, pressing the A button momentarily will accept the
Setting and revert operation to the FREE SURF MAIN
screen, bypassing SET FREE DEPTH ALARMS 2 and 3.
Depressing the M button for 2 seconds, or if no button is
pressed during a period of 2 minutes, will revert the
Display to the FREE SURF MAIN screen.

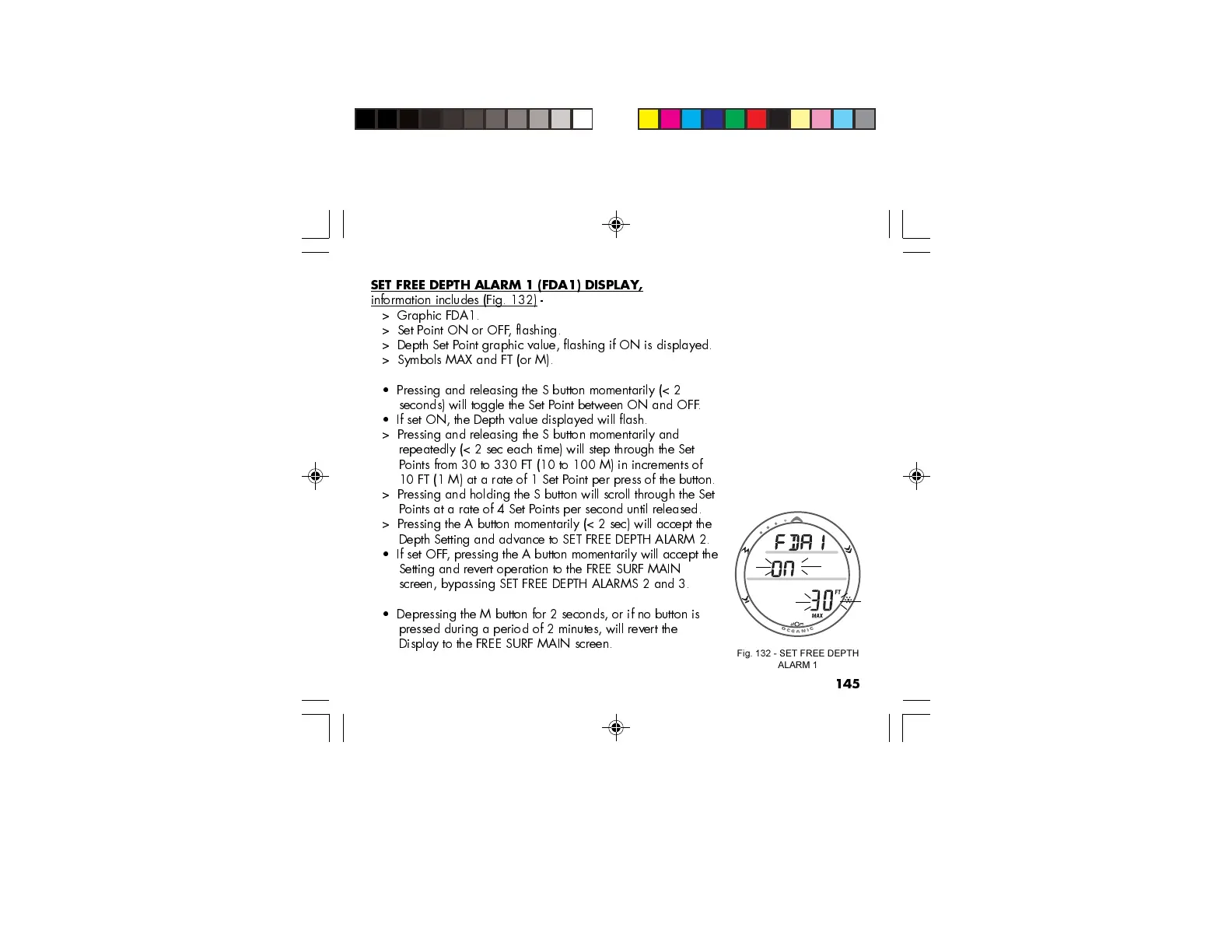

Fig. 132 - SET FREE DEPTH
ALARM 1
