OEM FX - Chapter 3: Installation and Connections

FX / RVE
Installation and connections
EN - 11
Fig. 2
Fig. 1
1
2
3
3
2
1
DANGER
All operations described in this chapter shall be
carried out by skilled technicians.

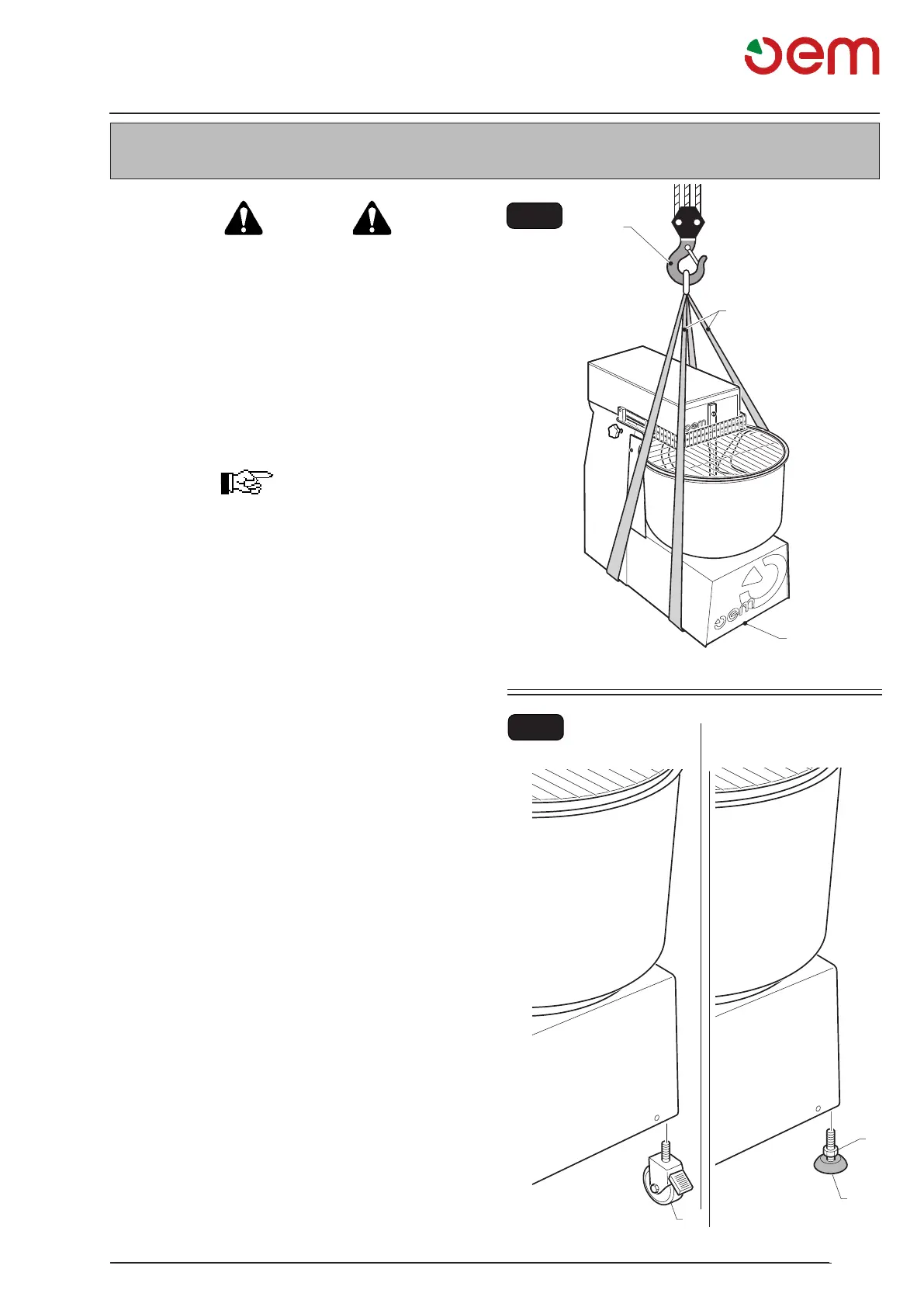

3.1 - LIFTING OF THE MACHINE (Fig. 1)
The machine must be lifted using a crane or hoist acting
as follows:
• Inserttwobelts, (1) suitably dimensioned to the
weight of the machine, under the base (2) of the
machine and connect them to the hook (3) of a crane
or hoist.
IMPORTANT
To hoist the machine do not use steel belts as they
may damage the outside body.
3.2 - WHEELS/FEET ASSEMBLING (Fig 2)
Depending on the concerned models, the machines are
shipped with demounted adjustable feet or wheels in
order to simplify their transport, for assembling proceed
as follows:
Wheels assembling
Lift the machine as described in the preceding paragraph.
Tightlyxthewheels(1)underthemachinebase,the
brakingwheelsshallbexedatthefrontofthemachine
Feet assembling
Lift the machine as described in the preceding paragraph.
Screw the feet (2) on the machine base, after positioning
the machine level it and tighten the feet by the lock nut
(3).
Chapter 3
