OEM FX - Wiring Diagram - Two-Speed Single-Phase Kneading Machine

FX / RVE
Wiring diagram
EN - 24
1
2
3
4
5
a
6
b
c
d
e
e
7
8

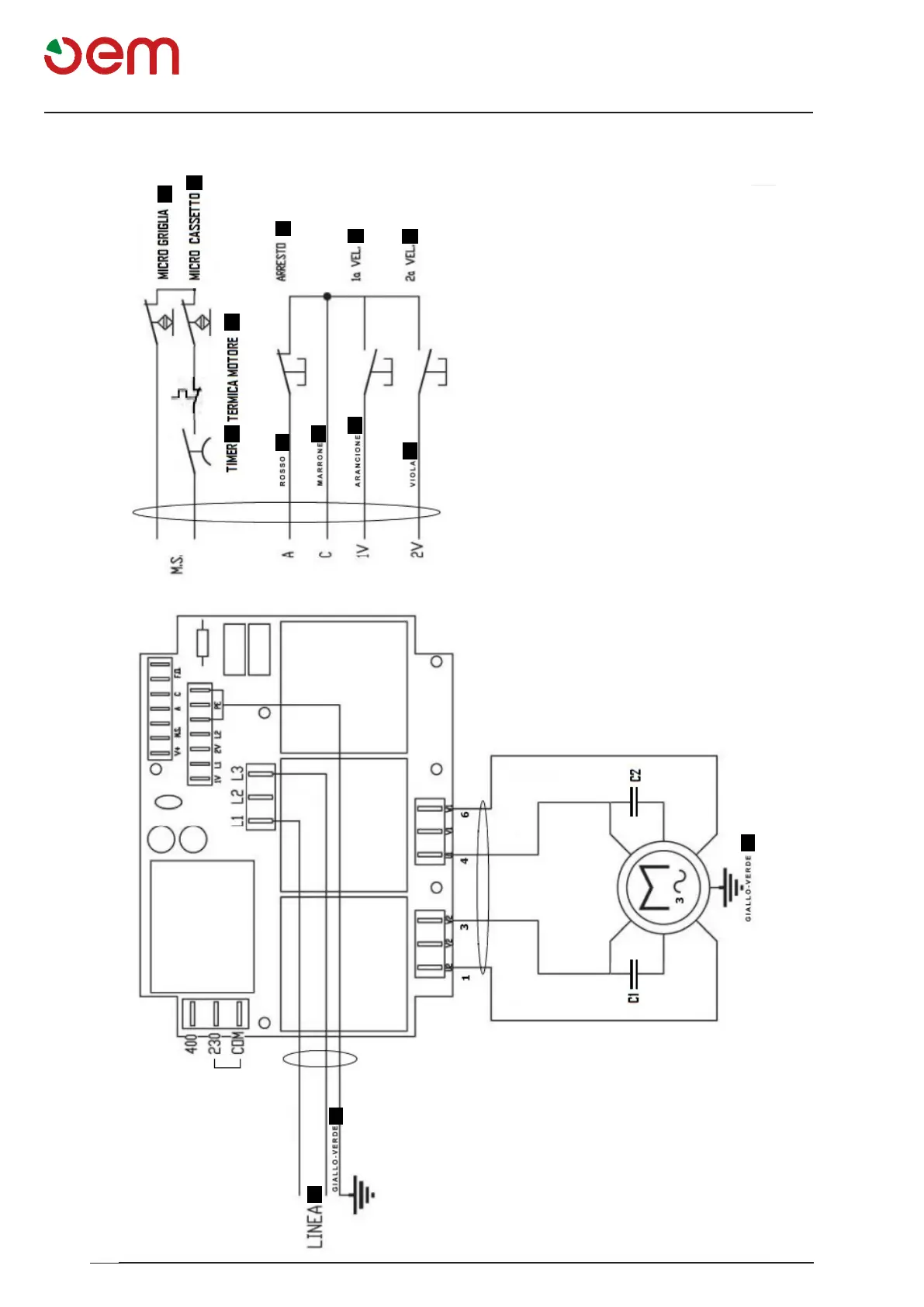

WIRING DIAGRAM - TWO-SPEED SINGLE-PHASE KNEADING MACHINE
1 = TIMER
2 = MOTOR THERMAL SWITCH
3 = GRID MICROSWITCH
4 = STOP
5 = DRAWER MICROSWITCH
6 = LINE
7 = 1st SPEED
8 = 2nd SPEED
a = Red
b = Brown
c = Orange
d = Violet
e = Yellow-green
