4.REPLACEMENT OF PARTS

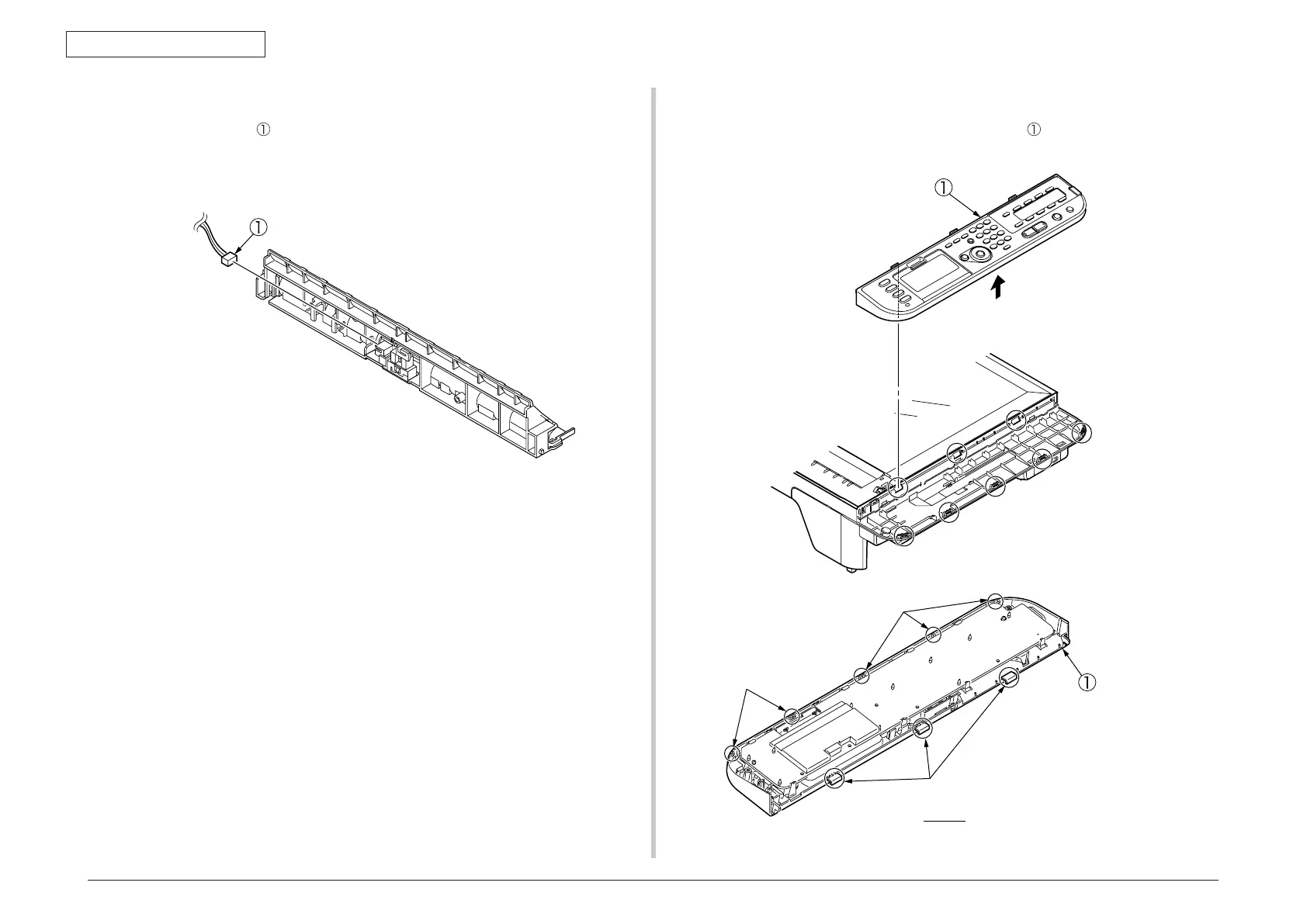

4.2.8.9 Cable (ADF-Reg SNS)

(1) Remove the cable .

4.2.8.10 Frame-assy-OP

(1) Remove eight claws to remove the frame-assy-OP .

View A

Claws
