Oki MB461 - Tray-Assy-Document; Cover-ADF-R-Assy

44871001TH Rev.6
4-14
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
4.2.8.1 Tray-assy-document / Cover-ADF-R-assy

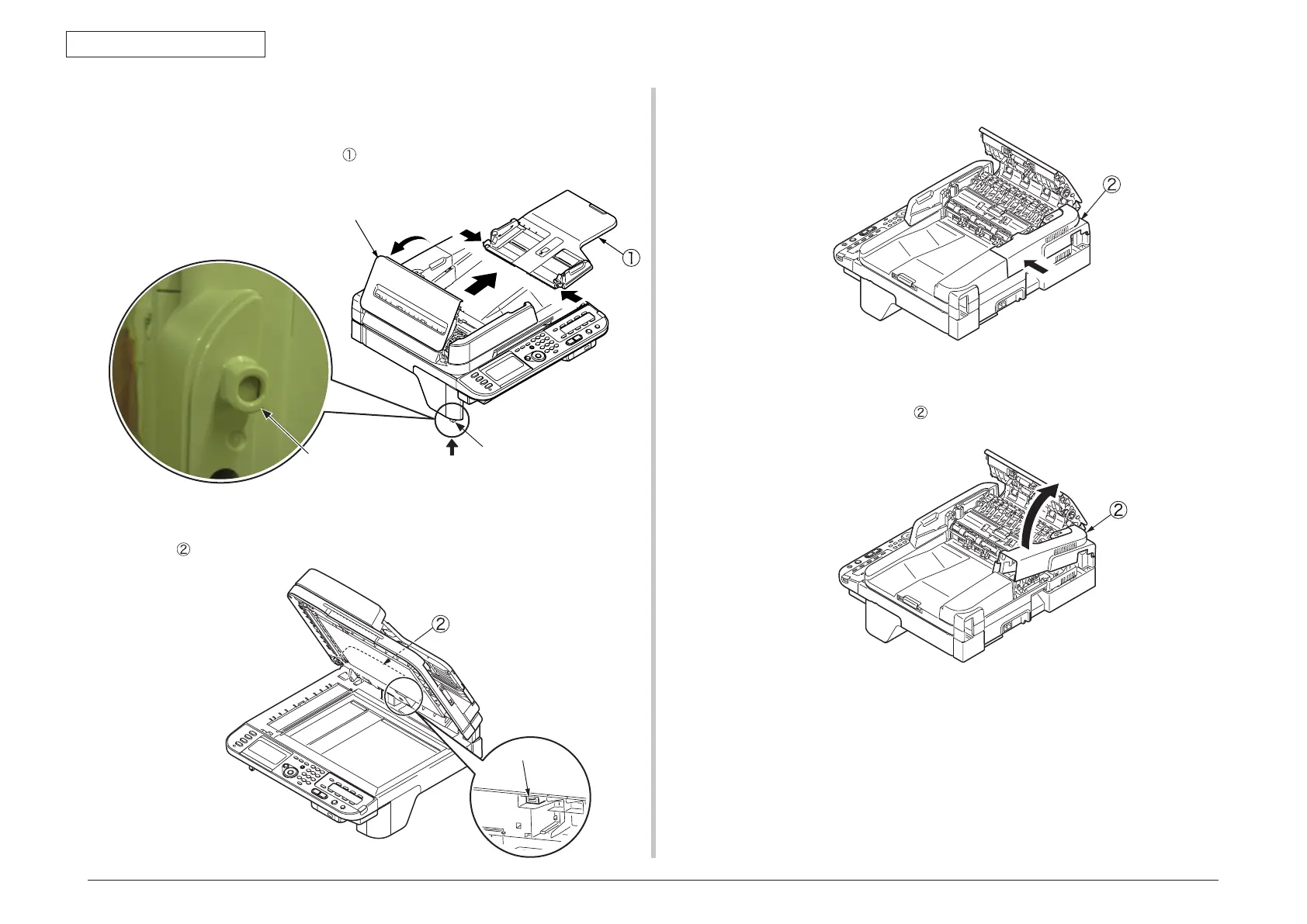

(1) Open the cover-assy-top-ADF .
(2) Remove the tray-assy-document
by pull it in the direction of the arrow.
(3) Open the ADF-unit while pushing the portion B, and push the claw of cover-ADF-R-
assy
.
(4) Push the portion A. (Concurrent to push the (3) )
(5) Remove the cover-ADF-R-assy
in the direction of the arrow.
Claw
A
Cover-assy-top-ADF
B
B
ViewA
