44871001TH Rev.6

4-17

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

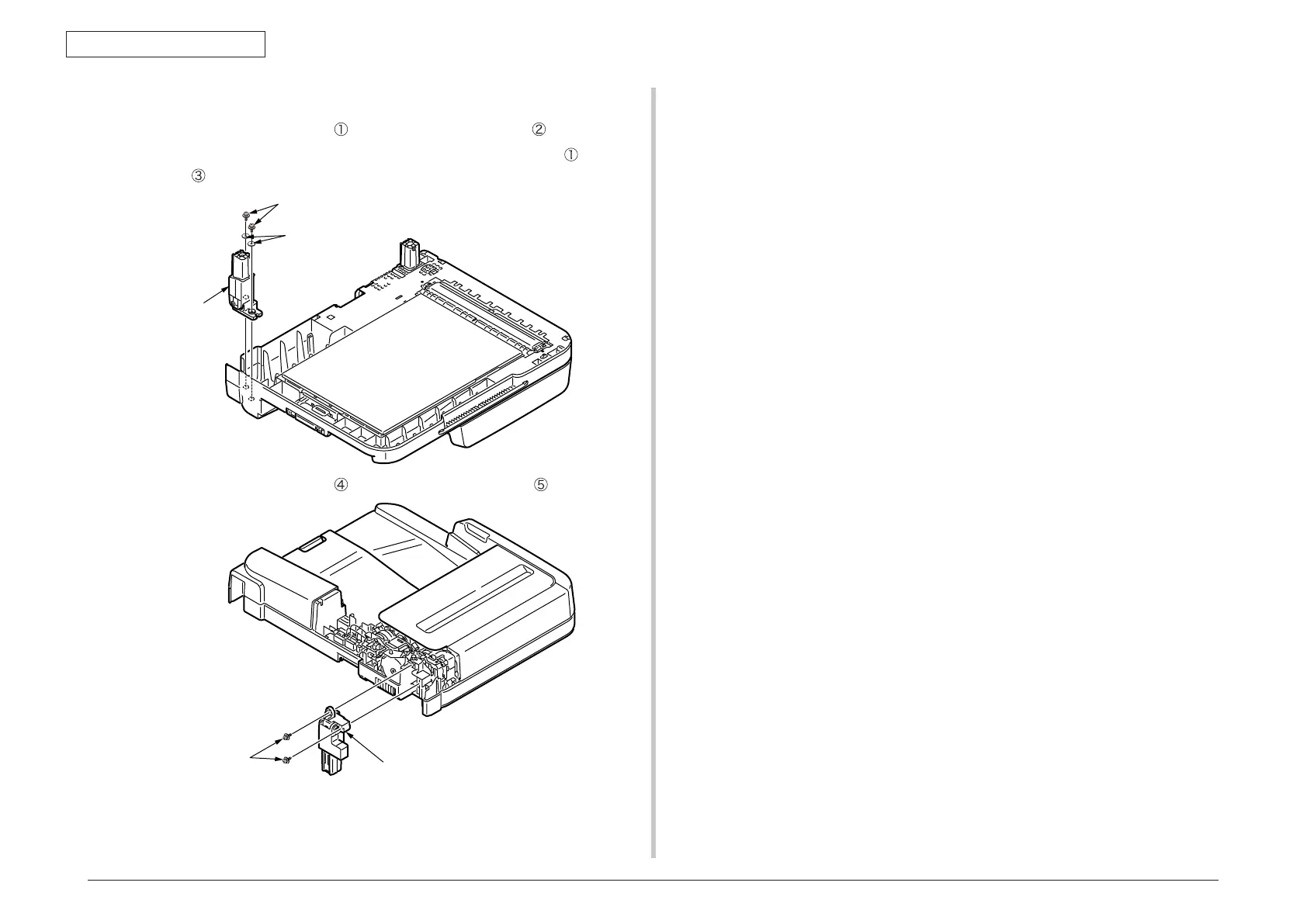

4.2.8.4 Hinge-assy-L / Hinge-assy-R

(1) Remove two screws (L=10mm)

and remove the hinge-Assy-R

(* for MB461+LP/MB491+LP/MPS4700mb: Remove two pairs of screw

and

washer .)

L=10mm

(for MB461+LP/

MB491+LP/

MPS4700mb)

③

②

①

(2) Remove two screws (L=10mm) and remove the hinge-Assy-L .

L=10mm

④

⑤
