4.REPLACEMENT OF PARTS
4.2 Part replacement procedure
This section describes the procedure for replacing the parts and assemblies shown in the
disassembly diagrams below.
4.2.1 Cover Side (L)
(1) Remove the cassette assembly.
(2) Open the Scanner, Cover-Assy-Stacker, Frame-Assy-MPT and Cover-Assy-Rear.

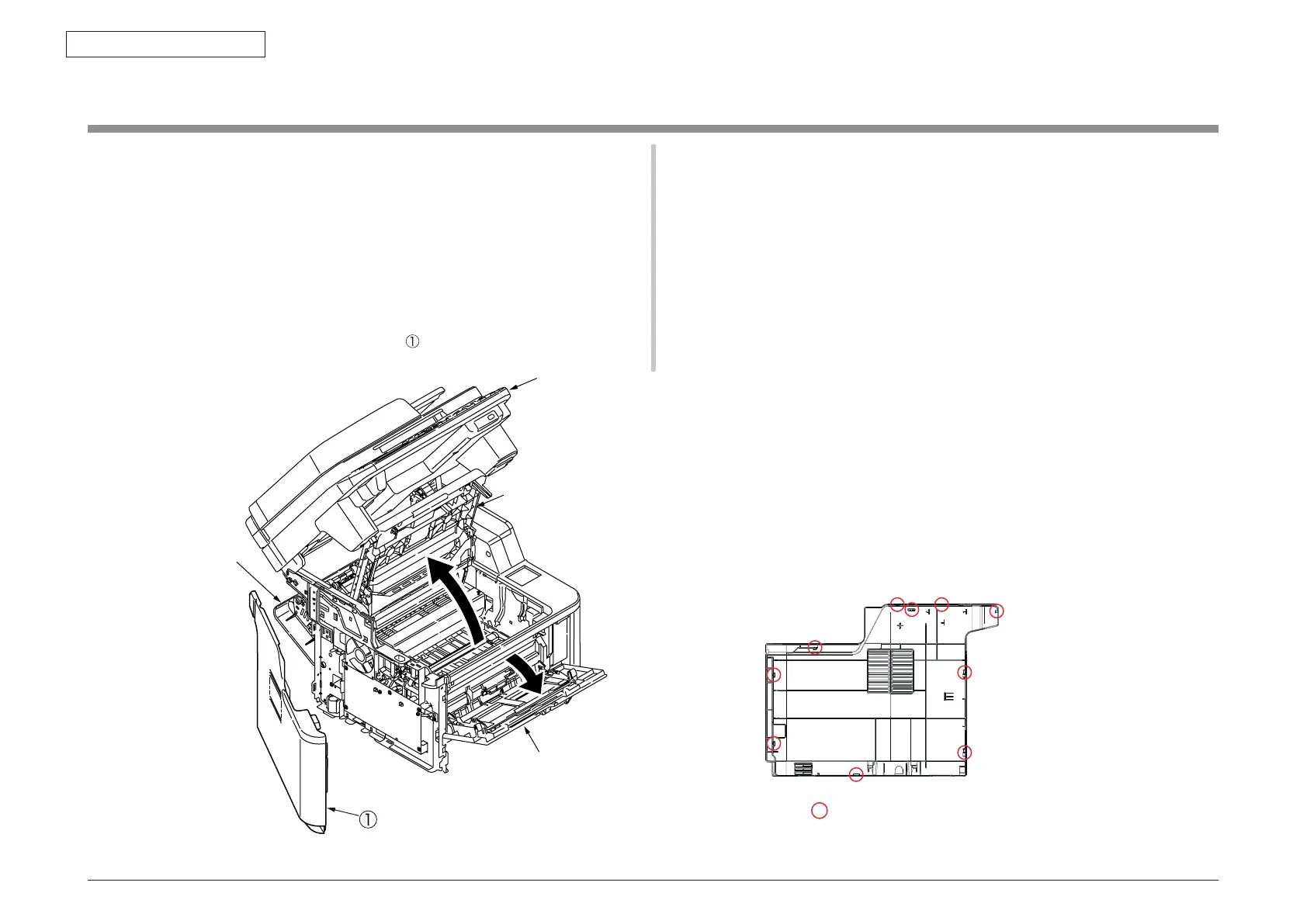

(3) Unlatch the claws (10 portions) with to pull the front side of the mainbody to the
arrow in figure to detach the Cover-Side (L)
.
Cover-Assy-Stacker
Caver-Assy-Rear
Frame-Assy-MPT
Scanner
= Points of craws
